− 54 −
&
.

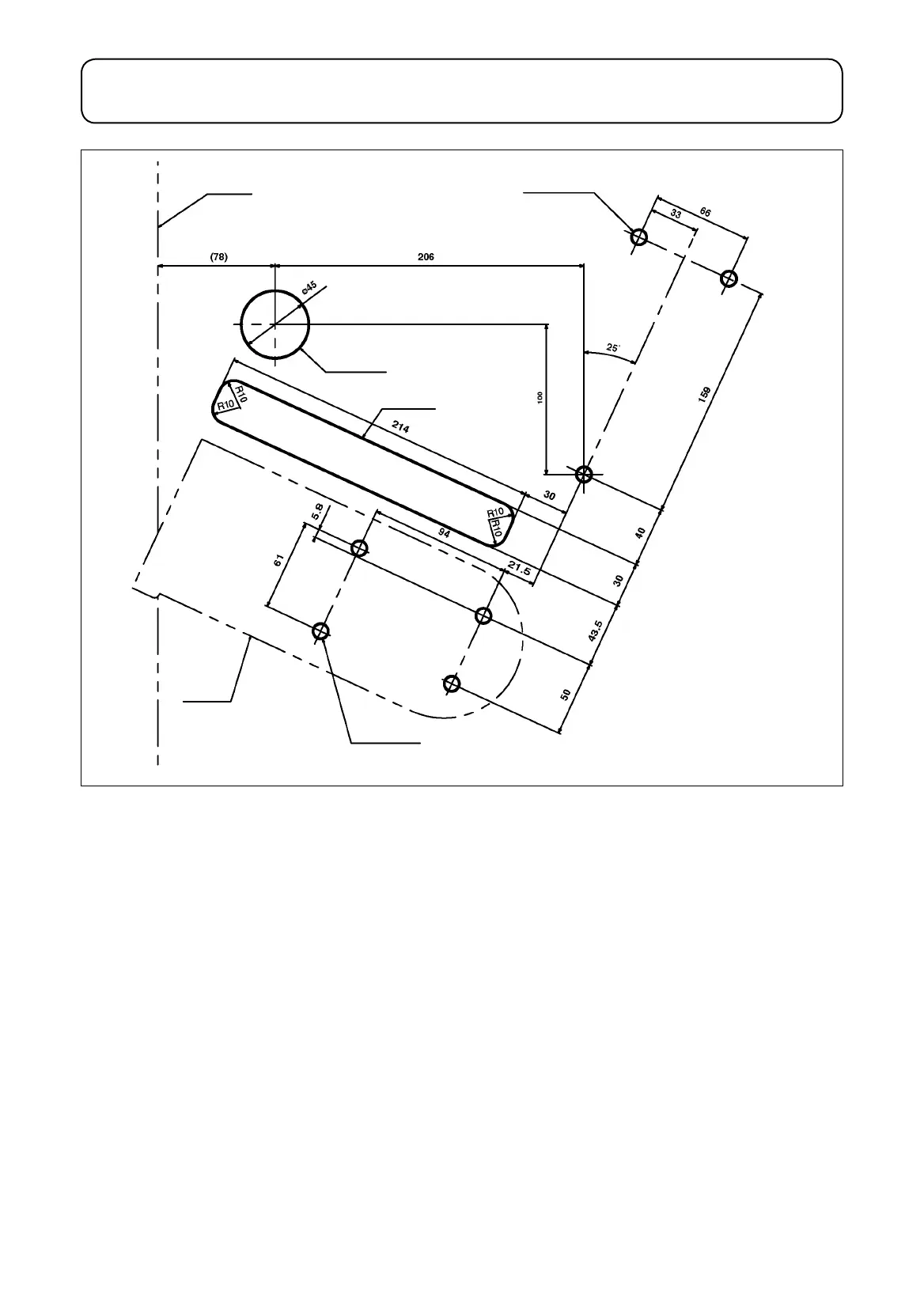

TABLE MACHINING DIAGRAM (only for the sewing machine
provided with a clutch motor)
(Note) The JUKI exclusive mounting base is regarded as a product with the model name "MT05."
The above table is the table machining drawing using the MT05.
It should be noted, however, that only one cushion rubber is to be used though the MT05 is provided with two of them.
Mounting screws and washers are supplied with the mount base.
* Mounting screw SM6087002 TN (M8) 4 pcs/; Washer WP0841600SC 4 pcs.
A
End face of table
B
Clutch-motor mounting location (3 x φ10)
C
Through-hole for chain of presser foot lifting pedal
D
Belt clearance groove
E
Mount base mounting hole (4 x φ10)
F
Mount base (Note)
A
B
C
D
E
F
