1. GENERAL INFORMATION
Dear customer,
thank you very much for choosing our product.
In the following, we will introduce you to what to observe while starting
up and using this product.
Should you encounter any unexpected problems during use, please do
not hesitate to contact us.

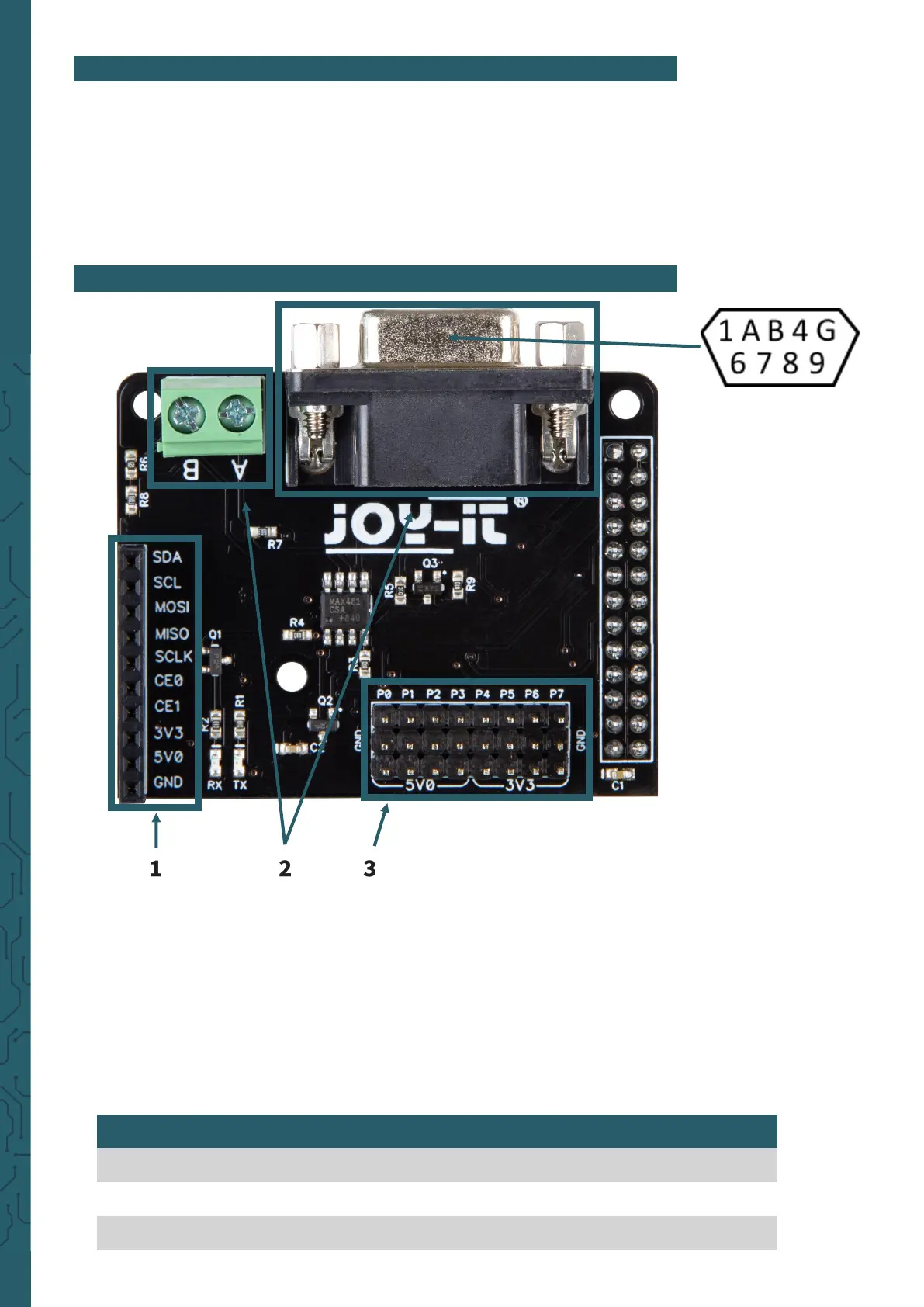

2. CONNECTIONS OF THE RS485 BREAKOUT BOARD
1. These connections have been routed separately to the outside to
ensure that the now concealed connections on your Raspberry Pi
can still be used.
2. These connections are used to send and receive the RS485 signals.
Both the screw terminal and the DB9 socket can be used.
3. These connections have been routed separately to the outside to
ensure that the now concealed connections of your Raspberry Pi
can still be used.
Please refer to the following table.
P0 P1 P2 P3 P4 P5 P6 P7
GPIO17 GPIO18 GPIO27 GPIO22 GPIO23 GPIO24 GPIO25 GPIO4
GND GND GND GND GND GND GND GND
5V 5V 5V 5V 3V3 3V3 3V3 3V3
Front view
