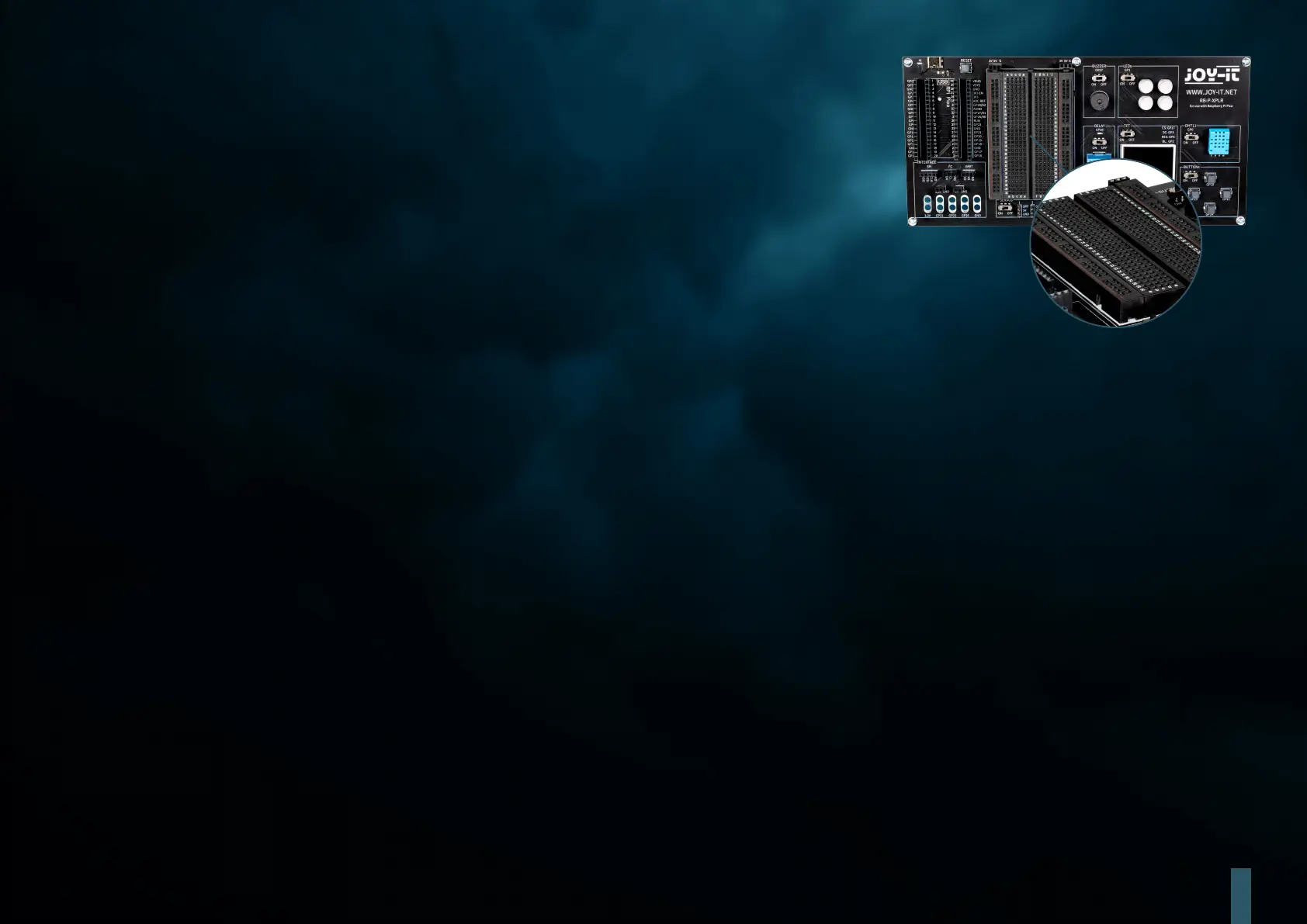

4.9 BREADBOARD

Breadboards are an indispensable tool in the world of electronics, much like interface connectors are

crucial for connecting dierent components. They allow electronic circuits to be built and tested quickly

and without soldering, making them particularly popular for prototyping and educational purposes.

A breadboard typically consists of a rectangular plastic block with a large number of embedded holes

arranged in rows. These holes are internally connected by metallic traces that allow components and wires

to be easily plugged in and connected. The standard layout of a breadboard includes two main areas:

The main areas: These consist of a series of parallel rows of holes, usually separated by a central groove. The holes within a row are electrically connected

to each other. This arrangement is ideal for inserting integrated circuits (ICs) and other components.

The power strips: At the edge of the breadboard there are usually one or two rows of holes that serve as power strips. These are connected vertically along

the entire length of the breadboard and oer a convenient way to provide power and ground at various points on the circuit.

The flexibility of a breadboard lies in its reusability and the ability to build circuits without permanent changes. This makes it ideal for experimentation as

errors can be easily corrected and components removed without damage. It is also an excellent learning tool as it promotes understanding of circuit logic

and component functions in a practical, visual way.

In addition, breadboards are available in dierent sizes and with dierent numbers of connection points to suit dierent requirements. Smaller breadboards

are good for simple projects and experiments, while larger ones are suitable for more complex circuits.

Despite their versatility, breadboards also have limitations. They are not well suited for very high frequencies or for circuits that require high power. Also, the

connections can sometimes be less reliable than soldered connections, especially if the breadboard wears out over time.

Overall, breadboards are an essential tool for anyone working with electronics - from beginners learning the basics to experienced developers looking to

prototype quickly and eiciently. They are the electronic equivalent of an artist's sketchbook: a place to explore ideas and experiment before the final work

is created.
