4. Inspect the mast pin. Make sure it is in place and the spring
cotter pin is installed (see Figure 8-5).
5. Inspect the three anged hex-head bolts and nuts that
attach the square tube to the base assembly and the mast
pivot bracket. Make sure they are in place and the nut is
tight(seeFigure8-6).
6. Makesureeachwinchoperatessmoothlyandeasilywith
no chattering or interference. Make sure the cable is not
tangled or mired on the cable spool.
7. Inspect the caster wheels and caster wheel locking levers.
Make sure the wheels move freely. Grease as needed using
the grease zerk on each wheel.

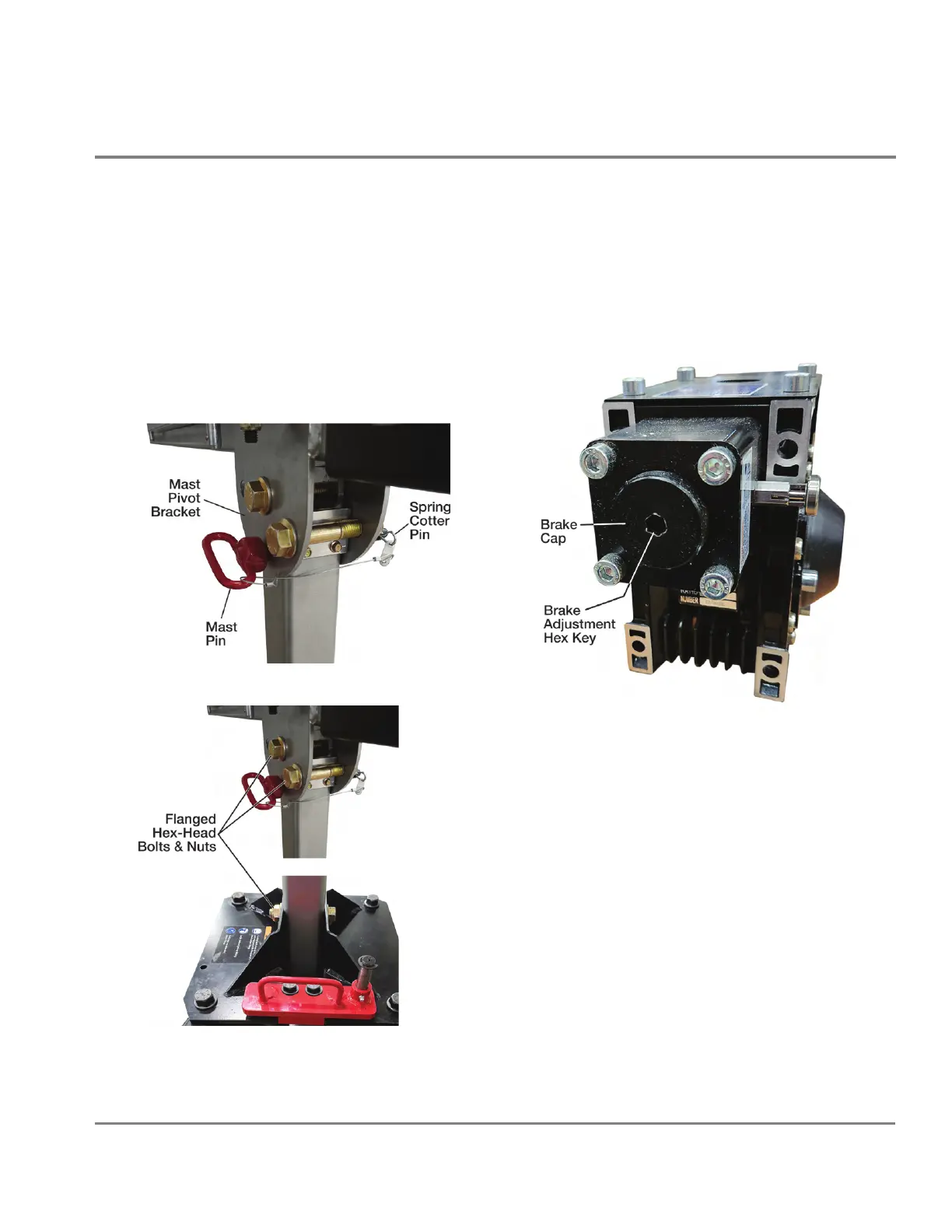

Figure 8-5: Mast Pin Location
Figure 8-6: Flanged Hex-Head Bolts & Nuts Locations
8.1.2 Winch Maintenance
1. Clean the winch after each use. Remove any dirt on the
winch surface.
2. Each winch comes from the factory with the brake adjusted
to provide correct resistance to hold and lower the load.
Ifeldadjustmentisneeded,insertahexwrenchintothe
brake cap and adjust in small 1/4-turn increments (see
Figure 8-7). Make sure the brake cap is torqued to the
factory setting of 44 in-lb.
Figure 8-7: Winch Brake Adjustment
8.1.3 Every Six Months
1. Inspect all bolts and nut to make sure they are tight.
2. Inspect the base and legs assembly. Make sure the base
and legs are free from damage that could affect the oper-
ation, strength, and integrity of the lift.
3. Make sure cables are properly seated and aligned in all
pulleys.
4. Inspect pulley enclosures for damage that can affect the
pulley operation. Make sure pulleys can rotate freely. If
pulley enclosures are damaged and contact the pulleys or
cables, replace the affected mast section.
5. Extend the mast sections and ensure smooth operation.
Spray a silicone lubricant on the pulleys and slide ways to
insure smooth operation.
JET TOOLS • SKY25 SKYHYKER MATERIAL LIFT | 26
Continued
