5. Place a lifting strap through the travel mode lift point (see
Figure 7-30). Securely attach the lifting strap to the crane
lift cable.

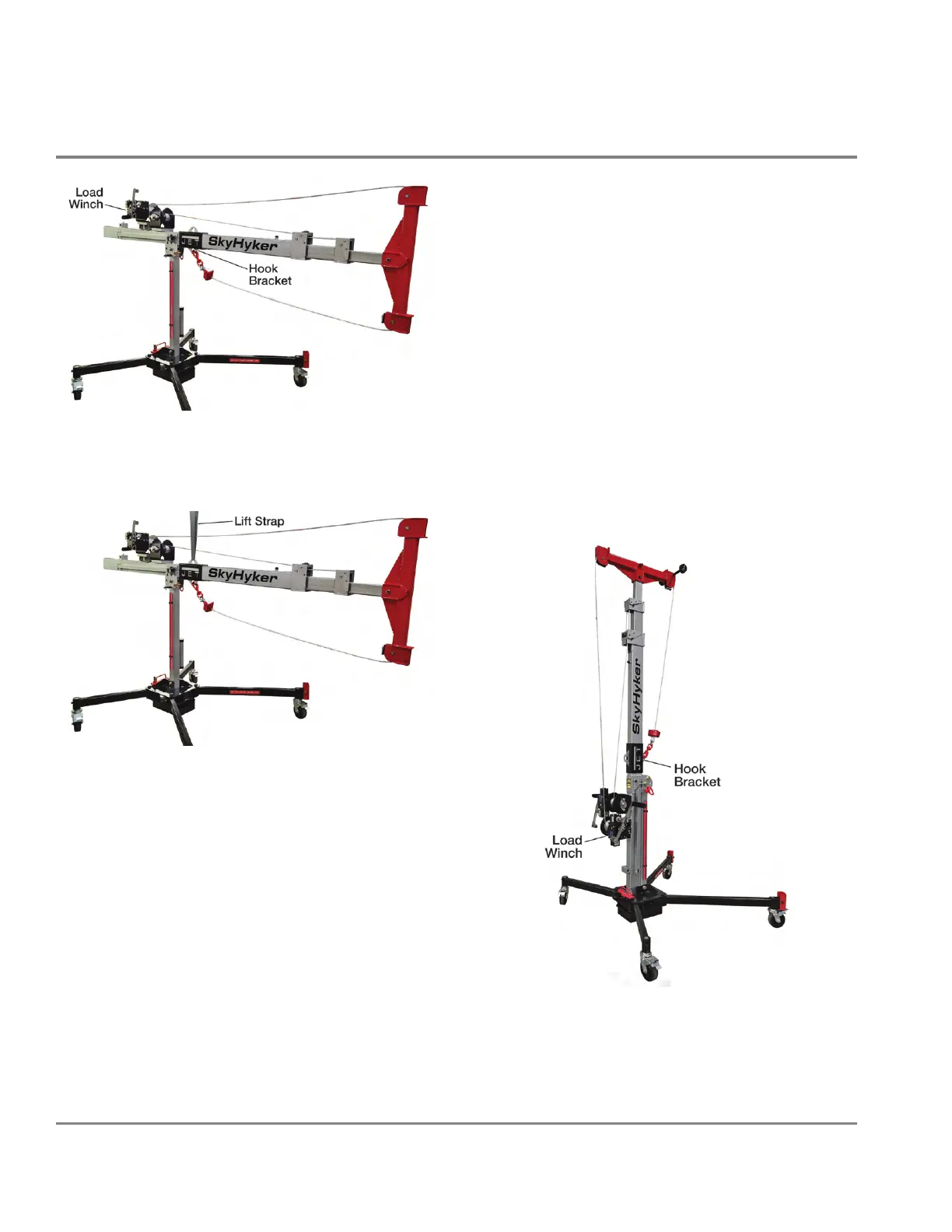

Figure 7-29: Securing Load Cable Hook on Hook Bracket
6. Attachstabilizinglinestothelowerguywireattachment
rings. Have helpers control the stabilizing lines while the
lift is being raised or lowered. Make sure the stabilizing
lines are long enough to allow helpers to stand well out of
the way of the lift as it is being raised or lowered.
7. Carefully raise or lower the material lift to the desired
location. Make sure the material lift does not contact any
work site structural elements, pipes, electrical lines, or any
other objects.
8. Before unhooking the crane lift cable from the material
lift, lock the caster wheels (see Section 7.10 LOCKING
CASTERS) and make sure the lift is on a secure and stable
surface, well away from any open drop-offs where the lift
could fall.
Figure 7-30: Using a Lift Strap with the Travel Mode Lift Point
7.8 ADJUSTING MAST TO TRAVEL
(HORIZONTAL, NON-LOAD) POSITION
FOR MOVING AND TRANSPORT
1. Lock all four wheel casters (see Section 7.10 LOCKING
CASTERS).
2. Lower the mast to the lowest position.
3. Place the load cable hook securely into the hook bracket
as shown in Figure 7-31. Tighten the load winch cable to
remove slack.
4. Attach the red mast handle to the mast. The mast handle
is located in mounting brackets on the square tube (see
Figure 7-32). Slide mast handle through mast handle
housing at rear of mast. Pull spring pin up on mast handle
housing and slide handle into place so that the handle
locking hole aligns with the spring pin. Allow spring pin to
snap into locking hole to hold handle in place. See Figure
7-33.
Figure 7-31: Securing Load Cable Hook to Hook Bracket
21 Chapter 7: Operation
