4. Using the other end of the short guy wire, align the guy
wire loop and turnbuckle end loop inside the outrigger
connection slot at the end of the outrigger arm. Attach
both the short guy wire and turnbuckle to the outrigger
armusingthequick-releasepin(seeFigure7-16).Dothis
to both sides of the lift.

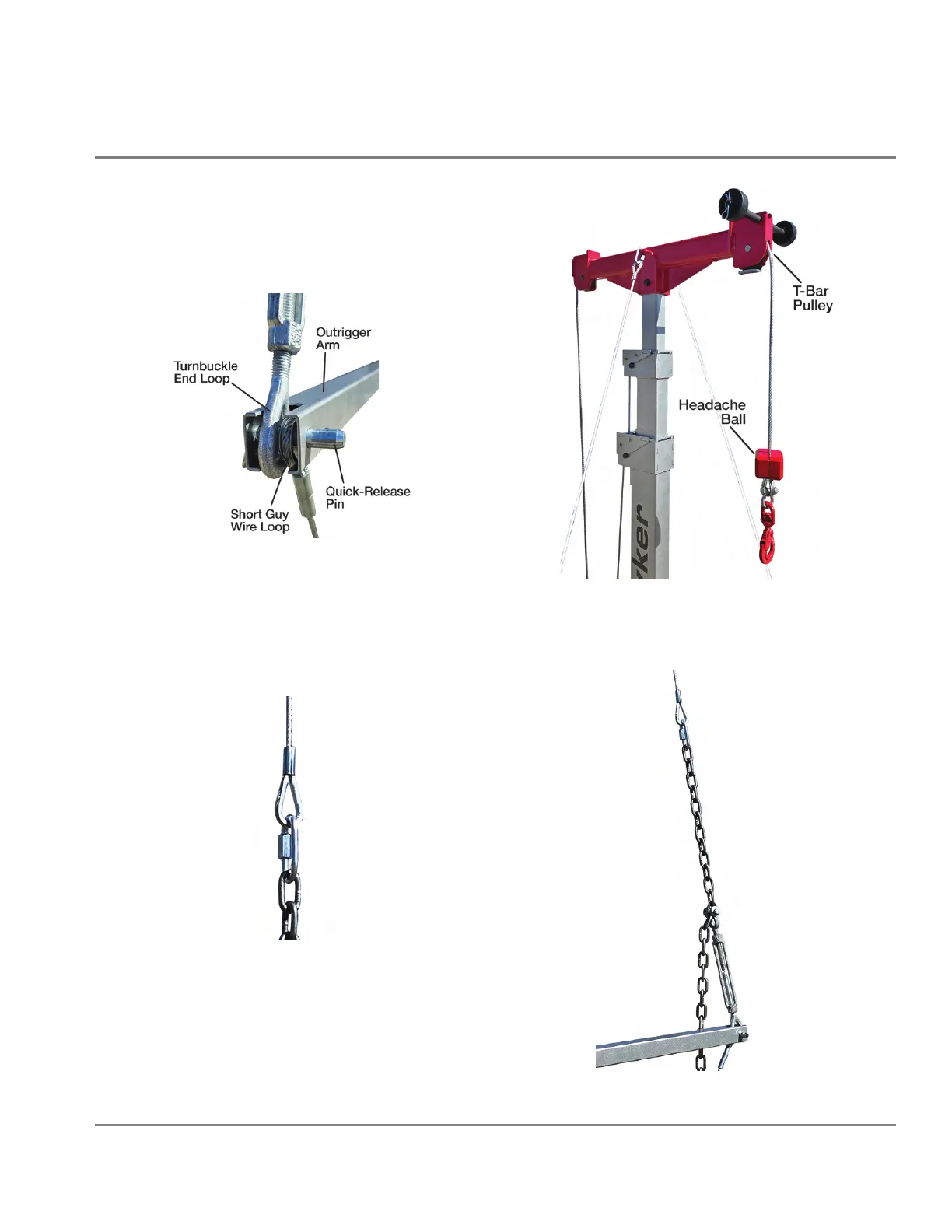

Figure 7-16: Attaching Turnbuckle and Short Guy Wire to Outrigger Arm
Figure 7-17: Hooking Chains to Long Guy Wires
Figure 7-18: Keeping Space Between Headache Ball from T-bar Pulley
5. Make sure the turnbuckles are loosened and at their longest
length. You will be tightening (shortening) the turnbuckles
later to tighten the guy wires before lifting.
6. Hookchainstoendsoflongguywiresthatareattached
to the T-bar (see Figure 7-17).
7. If the mast has been placed in the Travel (horizontal) po-
sition, return it to the vertical, lifting position. See Section
7.1 PREPARING MAST FOR LIFTING.
8. Raise the mast to the desired height above 20 feet. Make
sure you let out enough load cable while raising the mast
so the headache ball does not jam into the mast T-bar
pulley (see Figure 7-18).
9. Hook chains to turnbuckles using the link that will make
the guy wires tightest with the least amount of slack (see
Figure 7-19).
Figure 7-19: Hooking Chains to Turnbuckles
JET TOOLS • SKY25 SKYHYKER MATERIAL LIFT | 16
