7.4 USING GUY WIRES
When lifting or lowering loads using the load
winch, and the mast T-bar height is above 20 feet,
the maximum load capacity is 1500 lbs. You must
also use the supplied guy wires to add lateral sta-
bilization to the mast.
Follow the steps below to attach, adjust, and use guy wires.
1. Attach ends of long guy wires to chain link connection
points on both sides of the T-bar (see Figure 7-13). Do this
by either using a step ladder or placing the mast in the
horizontal (non-load) position. Do not lean ladder against
the mast. To set the mast in the horizontal position, see
Section 7.8 ADJUSTING MAST TO TRAVEL (HORIZONTAL,
NON-LOAD) POSITION FOR MOVING AND TRANSPORT.
3. Attach ends of short guy wires to chain link connection
points on each side of the base (see Figure 7-15).

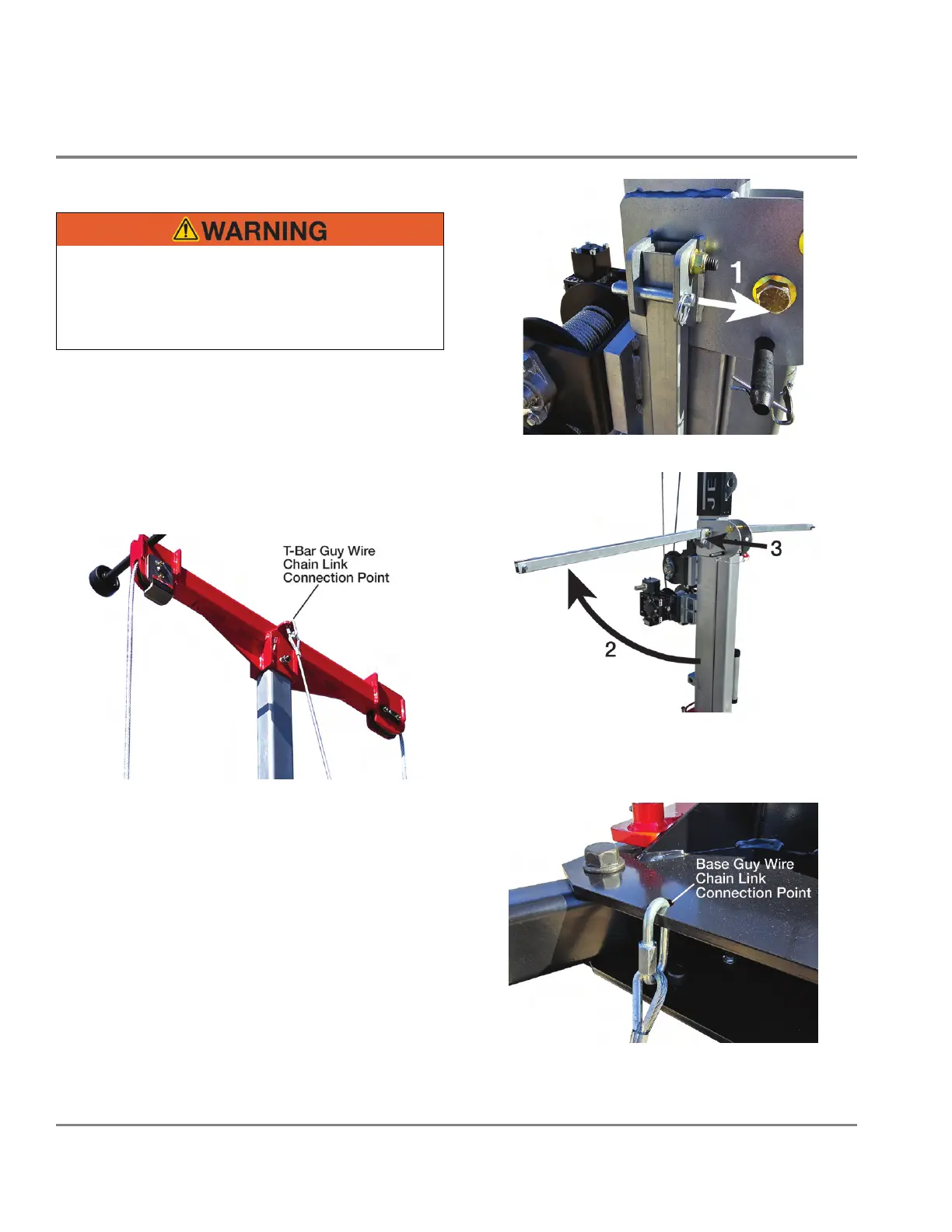

Figure 7-13: Attaching Long Guy Wires to T-bar
2. Extend guy wire outriggers. Do this by removing spring pins
from the outrigger pivot brackets (1) and swing outriggers
up to the horizontal position (2). Place the pins back into
outrigger pivot brackets to support outriggers in the hori-
zontal position (3). See Figures 7-14a and 7-14b.
Figure 7-14a: Removing Outrigger Spring Pins
Figure 7-14b: Extending Outrigger Arms
Figure 7-15: Attach Short Guy Wires to Base
15 |
Chapter 7: Operation
