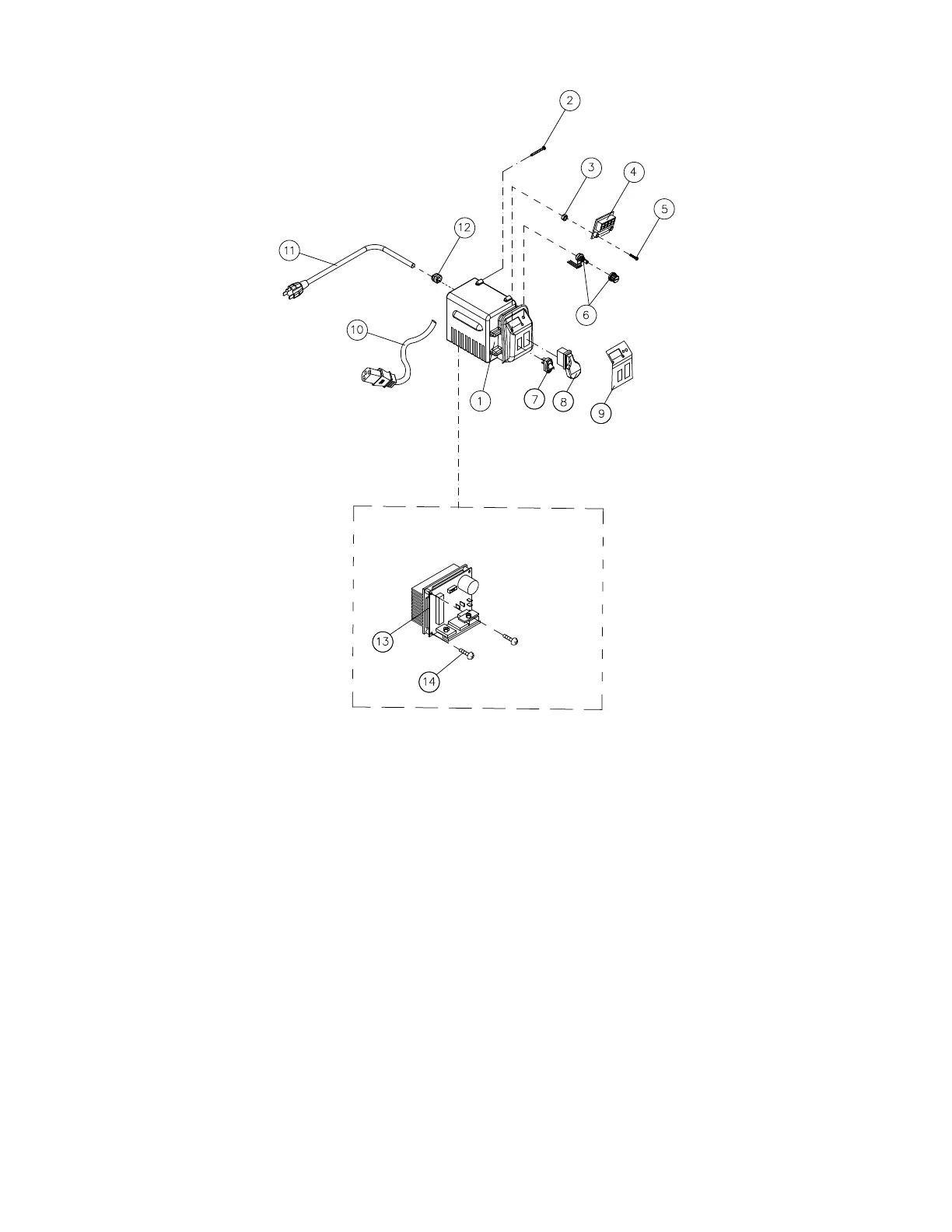

16.3.1 Controller Assembly – Exploded View

16.3.2 Controller Assembly – Parts List

Index No Part No Description Size Qty

.................. JWL1221VS-CA ........ Controller Assembly (includes #1 thru #15) ............. ...................................... 1

1 ................ JWL1221VS-301 ....... Switch Box ............................................................... ...................................... 1

2 ................ JWL1221VS-302 ....... Tapping Screw ......................................................... M3x19 ........................... 4

3 ................ TS-1540011 .............. Hex Nut .................................................................... M3 ................................. 2

4 ................ JWL1221VS-304 ....... Digital Readout ........................................................ ...................................... 1

5 ................ JWL1221VS-305 ....... Pan Head Screw ...................................................... M3x20 ........................... 2

6 ................ JWL1221VS-306 ....... Control Potentiometer Assembly ............................. ...................................... 1

7 ................ 4224B-148 ................. Switch Fwd / Rev ..................................................... ...................................... 1

8 ................ JWL1221VS-308 ....... Main Switch ............................................................. ...................................... 1

9 ................ JWL1221VS-309 ....... Control Panel Label ................................................. ...................................... 1

10 .............. JWL1221VS-310 ....... Motor Cord, Female ................................................. ...................................... 1

11 .............. JWL1221VS-311 ....... Power Cord .............................................................. ...................................... 1

12 .............. JWL1221VS-320 ....... Strain Relief ............................................................. 6B-32 ............................ 2

13 .............. JWL1221VS-317A ..... Circuit Board Assembly (serial # 1304627 and higher) .................................. 1

14 .............. JWL1221VS-321 ....... Tapping Screw ......................................................... ...................................... 4

15 .............. JWL1221VS-324 ....... Connection Cord (Power cord to PC Board)(not shown) ................................ 1
