11.2 Cutterhead Removal
Knife inserts in the cutterhead
are sharp! Use extreme caution when handling
the removal of the cutterhead. Failure to comply
may cause serious injury!
The entire cutterhead assembly may be removed for
bearing replacement or cutterhead replacement.
To remove the cutterhead (including bearings,
studs, and housing) from the base casting:
1. Disconnect the machine from the power source.
2. Remove the fence assembly, cutterhead guard,
and belt guard. See Section 7.2 Assembly to
understand how to remove these parts.
3. Lower infeed and outfeed tables to create
widest opening above cutter head assembly.
4. Remove the v-belt from the cutterhead pulley.
5. Loosen set screw (A) using a hex wrench and
remove the cutterhead pulley (B) and key (C).

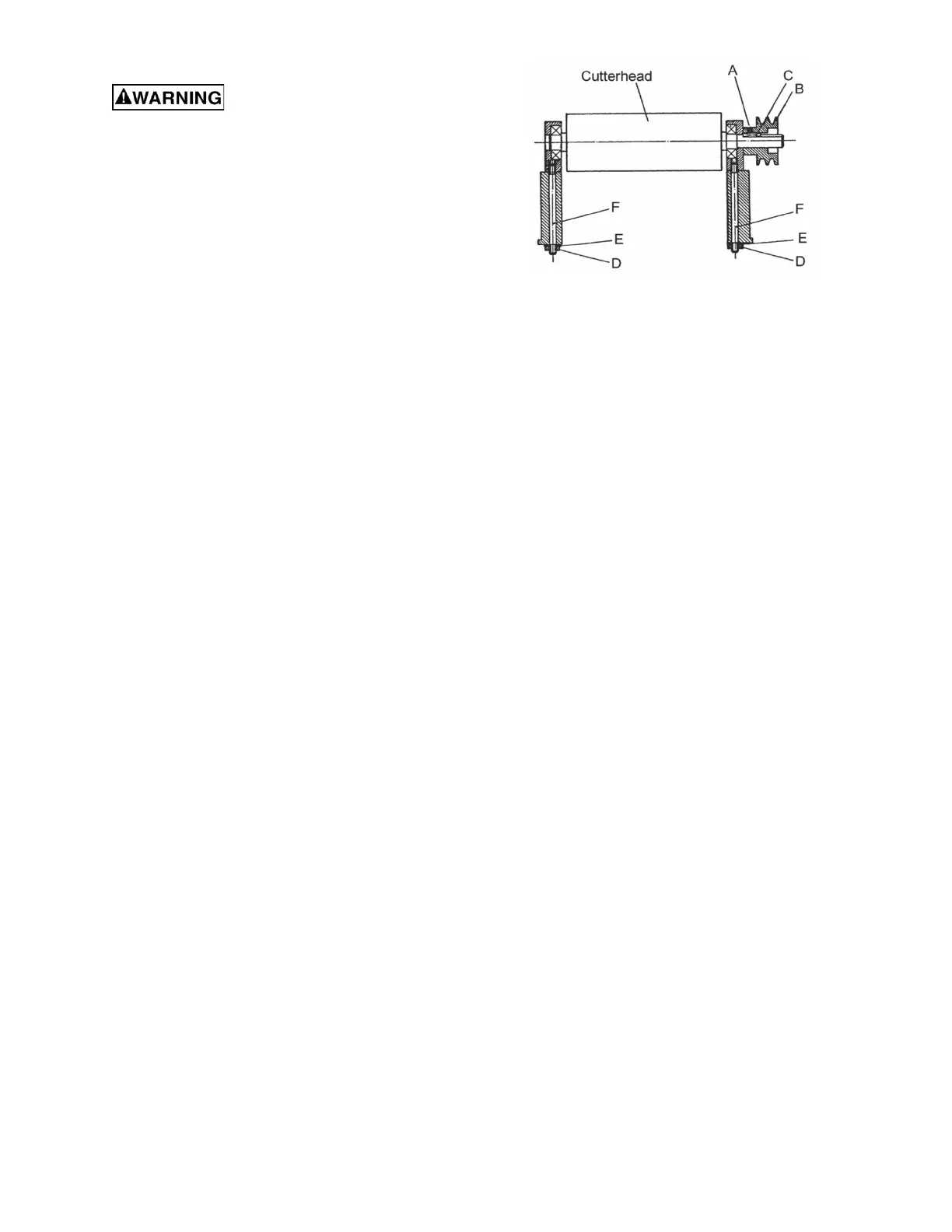

Figure 11-1
6. Unscrew M10 hex nuts (D) with M10 lock
washers (E) from two ends bolts (F).
7. Lift assembly straight up.
8. Before replacing the cutterhead back into the
casting, thoroughly clean the “saddle” and the
bearing housings of saw dust and grease so
that they seat properly.
9. To re-install the cutterhead, reverse the above
steps.
