18

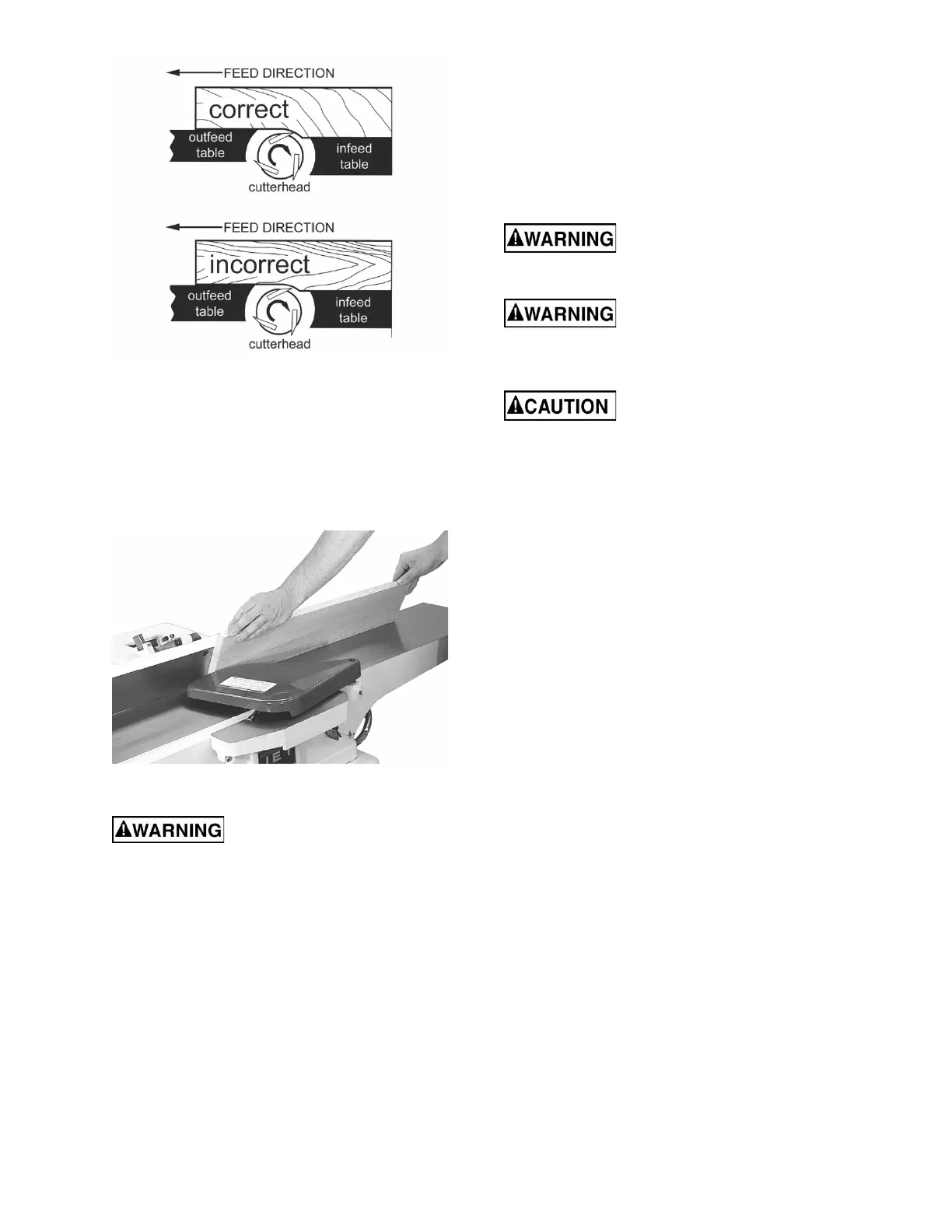

Figure 10-3
10.3 Bevel Cut
To cut a bevel, lock the fence at the desired angle
and run the material through, pressing the work
firmly against the fence and tables (see Figure 10-
4). Do not make cuts deeper than 1/8” in a single
pass. Several passes may be necessary for the
desired result.
Figure 10-4
10.4 Taper Cut
Taper cuts require the removal
of the cutterhead guard. Use extreme caution
when making taper cuts and replace the guard
immediately after completion! Failure to comply
may cause serious injury!
One of the most useful jointer operations is cutting
an edge to a taper. This method can be used on a
wide variety of work; tapered legs of furniture is a
common example.
Instead of laying the piece down on the infeed table,
lower the forward end of the work onto the outfeed
table. Use caution, however, as the piece will span
the knives, and they will take a “bite” from the work
with a tendency to kick back unless the piece is held
firmly. Push the work forward as in ordinary jointing.
The effect is to plane off all the stock in front of the
knives to an increasing depth, leaving a tapered
surface.
The ridge left by the knives when starting the taper
may be removed by taking a very light cut in the
regular jointing procedure, with the infeed table
raised to its normal position.
Practice is required in this operation. Beginners are
advised to make trial cuts with scrap material.
11.0 Maintenance
Disconnect machine from
power source before doing any maintenance.
Failure to comply may cause serious injury.
Make sure all knife insert
screws are tightened securely. Loose inserts
can be propelled at high speed from a rotating
cutterhead, causing injury.
This machine has an industrial-
grade low-friction corrosion-resistant coating
on the main table and the infeed and outfeed
tables. While the coating is durable, it can be
damaged if metal or other hard and/or sharp
objects strike, gouge, or scratch the surface.
Significant damage to the coating may affect its
performance. Use care when performing
maintenance on this machine.
Periodic or regular inspections are required to ensure
that the machine is in proper adjustment, that all
screws are tight, that belts are in good condition, that
dust has not accumulated in the electrical
enclosures, and that there are no worn or loose
electrical connections.
Buildup of sawdust and other debris can cause your
machine to perform inaccurately. Periodic cleaning is
not only recommended but mandatory for accurate
jointing.
Close-fitting parts should be cleaned with a cloth or
brush and non-flammable solvent.
If the power cord is worn, cut, or damaged in any
way, have it replaced immediately.
11.1 Lubrication
1. Use a good grade of light grease on the steel
adjusting screws located in the raising and
lowering mechanisms of the work tables.
2. Occasionally, apply a few drops of light
machine oil to the gibs. This permits the tables
to slide freely.
3. The cutterhead ball bearings are lifetime
lubricated and need no further care.
