9.0 Adjustments
Before making adjustments,
disconnect machine from the power source to
guard against accidental startup.
This machine has an industrial-
grade low-friction corrosion-resistant coating
on the infeed and outfeed tables and the fence.
While the coating is durable, it can be damaged
if metal or other hard and/or sharp objects
strike, gouge, or scratch the surface. Significant
damage to the coating may affect its
performance. Use care when making
adjustments to the machine.
9.1 Fence Placement
Moving Fence Horizontally Across Infeed
and Outfeed Tables
Refer to Figure 9-1:
1. Disconnect the machine from the power source.
2. Loosen fence base assembly upper bed
adjustment lock (A).
3. Grasp fence (B) and/or fence base assembly
upper bed (C) and move fence to desired
location.
4. Tighten fence base assembly upper bed
adjustment lock (A).

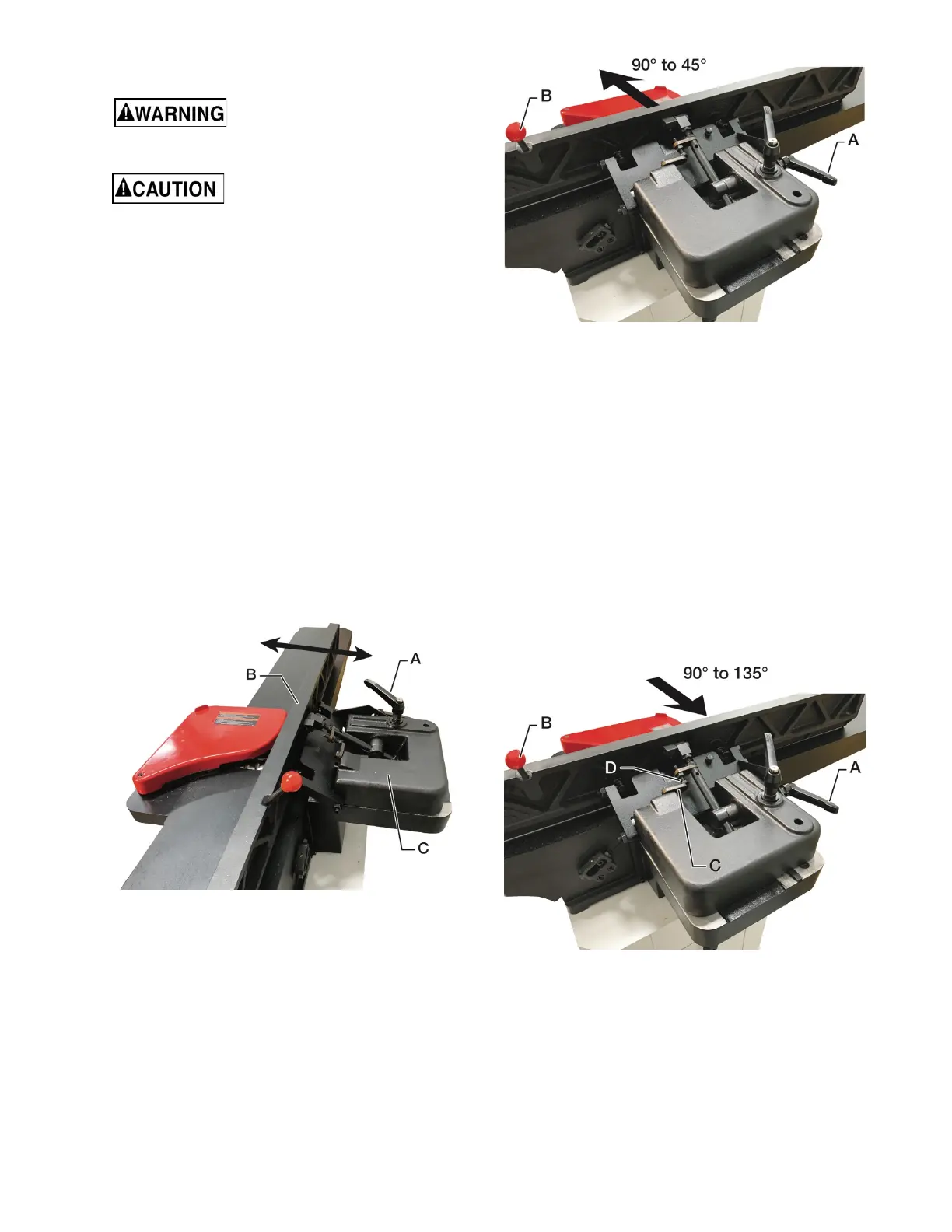

Figure 9-1
9.2 Fence Angle Adjustment
Angling Fence Between 90° and 45°
Refer to Figure 9-2:
1. Disconnect the machine from the power source.
2. Loosen fence tilt adjustment lock (A).
3. Grasp fence handle (B) and swing top of fence
towards the front of jointer.
4. Use an angle finder tool to adjust fence to
desired angle and tighten fence tilt adjustment
lock (A).
Figure 9-2
9.3 Fence Angle Adjustment
Angling Fence Between 90° and 135°
Refer to Figure 9-3:
1. Disconnect the machine from the power source.
2. Loosen fence tilt adjustment lock (A).
3. Grasp fence handle (B) and slightly nudge the
top of fence towards the front of jointer.
4. Swing fence 90° stop plate (C) up to allow 90°
stop bolt (D) to move back.
5. Grasp fence handle (B) and swing top of fence
towards the rear of jointer.
6. Use an angle finder tool to adjust fence to
desired angle and tighten fence tilt adjustment
lock (A).
Figure 9-3
