Je bekijkt pagina 9 van 20
9

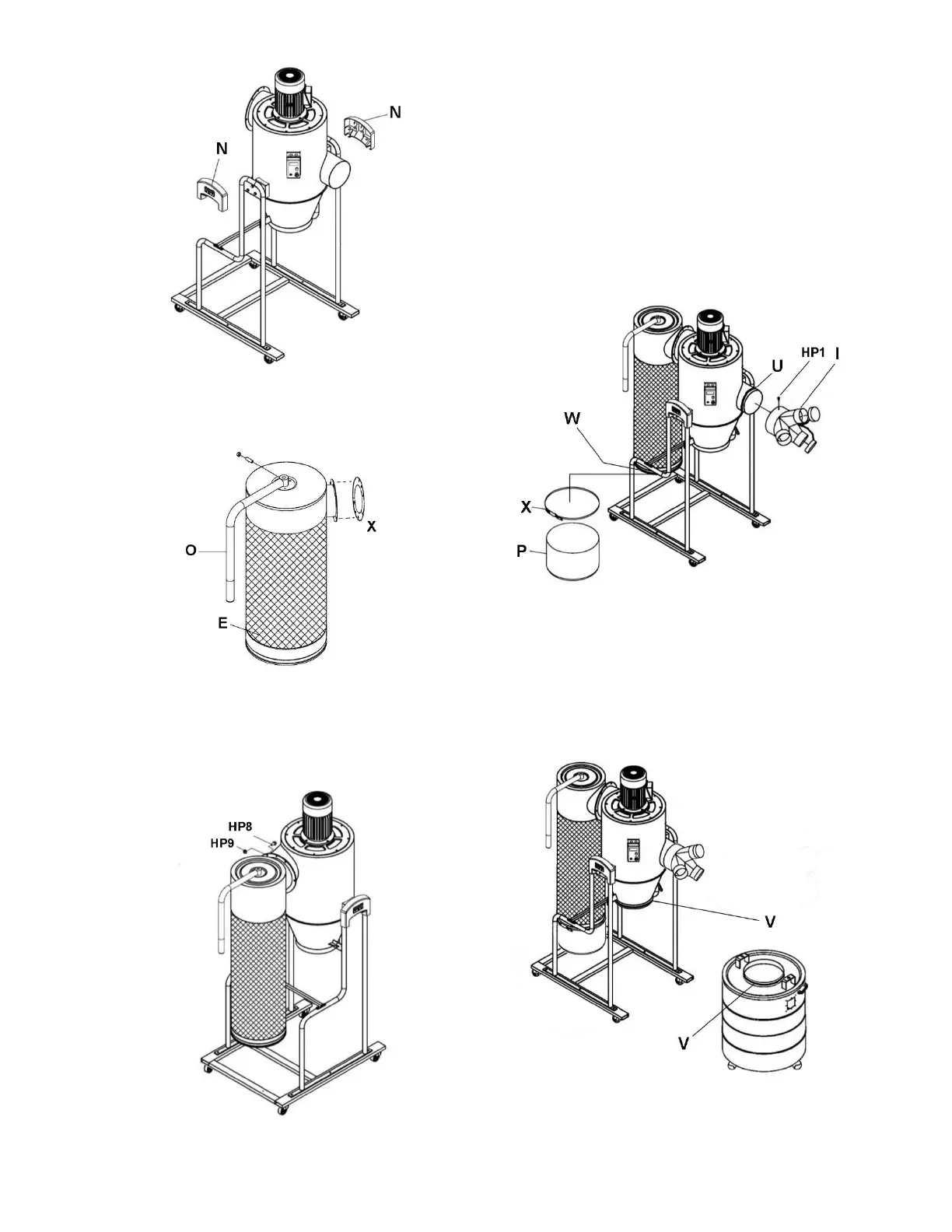

Figure 7
9. Install handle assembly (O) to canister filter (E)
using set screw and nut. See Figure 8.
Figure 8
10. Place gasket (X) between canister filter and
main housing. Install canister filter onto main
housing, and tighten with flange head screws
(HP9) and nuts (HP10). See Figure 9.
Figure 9
11. Apply foam tape (U) around inlet port near
edge. See Figure 10. The foam tape should
completely encircle the port.
12. Install inlet adaptor (I) on main housing and
secure with pan head screw (HP1).
13. Apply foam tape (W) just above lower lip of
canister filter. The foam tape should completely
encircle the canister filter.
14. Install collection bag (P) to bottom of canister
filter and secure with steel bag clamp (X). Note:
Masking tape can be used to hold bag in
position on canister until clamp is secured.
Figure 10
15. Apply foam tape (V) around funnel just above
its bottom edge. See Figure 11. The foam tape
should completely encircle the funnel.
16. Apply foam tape (V) around outside lip of drum
opening. The foam should completely encircle
the lip.
Figure 11
