7
Read and understand the
entire contents of this manual before attempting
assembly or operation. Failure to comply may
cause serious injury.
5.0 Setup and assembly
5.1 Unpacking and cleanup
Remove all contents from shipping carton and
compare to the contents list in this manual. If
shipping damage or any part shortages are
identified, contact your distributor. Do not discard
carton or packing material until dust collector is
assembled and running satisfactorily.
5.2 Shipping contents – JCDC-3
Carton #1 (see Figure 1)
1 Main housing – A
1 Funnel – B
1 Base – C
1 Left stand – D
1
1 Right stand – D
2
1 Drum – F
1 Funnel clamp – G
1 Drum lid – H
1 Inlet adaptor – I
1 Hose – J
2 Hose clamp 12-1/2in. – K
4 Casters (for Base) – L
4 Casters (for Drum) – M
2 Side cap – N
1 Collection bag for drum – Q
2 Quick lever – R
1 Bag frame – S
(4 long supports, 4 short supports, 3 hoops)
1 Stand support – T
1 Foam tape, 490 mm – U
2 Foam tape, 970 mm – V
1 Gasket – X
1 Remote controller with batteries (not shown)
Carton #2
(see Figure 1)
1 Canister filter (with bag clamp) – E
1 Handle – O
1 Collection bag for canister – P
1 Foam tape, 1265 mm – W
Hardware package (p/n JCDC3-HP) (Figure 2)
1 Phillips pan head screw, 3/16x3/8 – HP1
22 Flange head screw, 5/16x1/2 – HP2
8 Phillips pan head screw, M5x8 – HP3
2 Phillips pan head screw, 1/4x1/2 – HP4
4 Flange head screw, 1/4x1/2 – HP5
1 Open-end wrench, 10/12mm – HP6
1 Hex wrench 4mm – HP7
1 Hex wrench 5mm – HP8
12 Flange head screw, 5/16x3/4 – HP9
6 Nut, 5/16 – HP10
24 Phillips pan head screw, M3x12 – HP11
24 Hex nut M3 – HP12

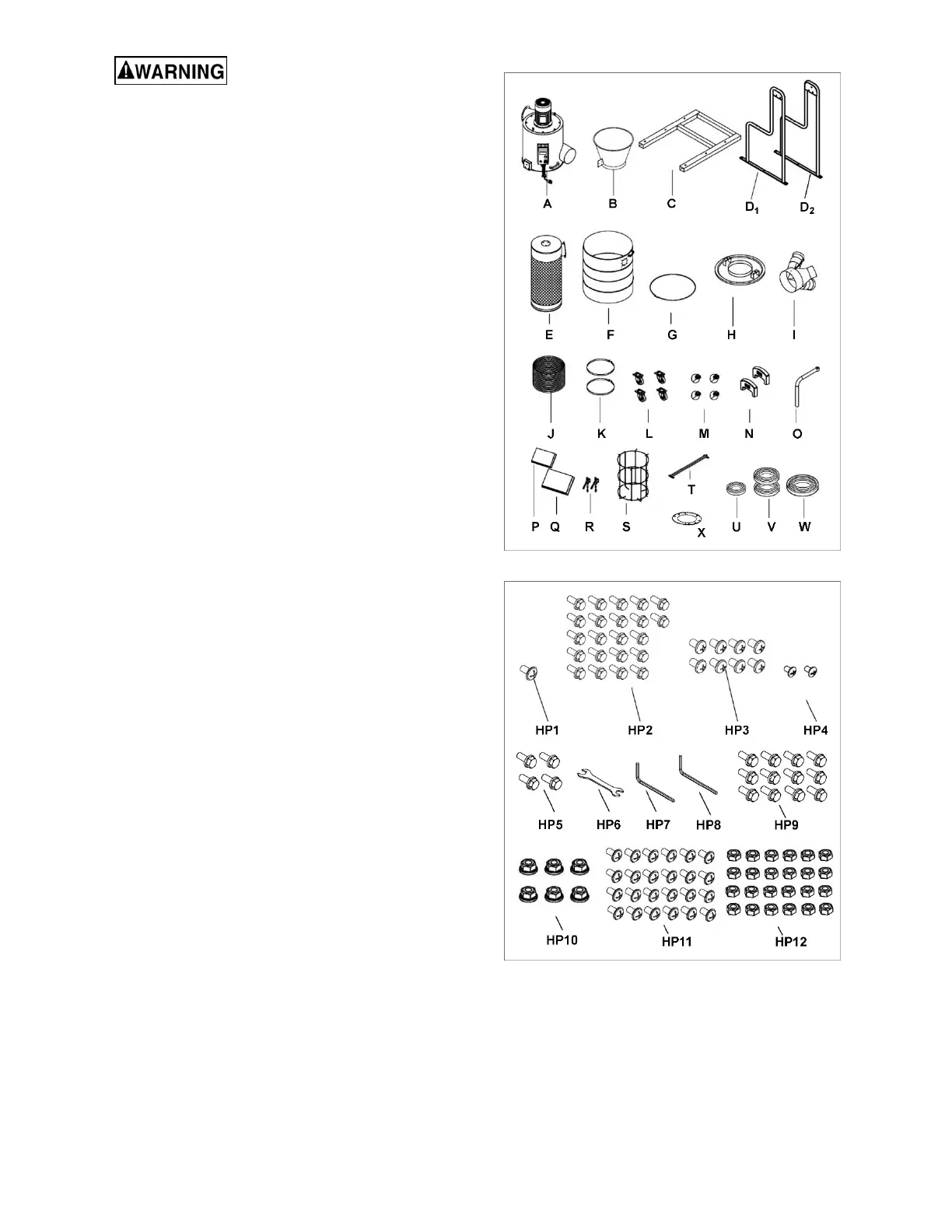

Figure 1: Carton #1 and #2 contents (not to scale)
Figure 2: hardware package contents (not to scale)
