13

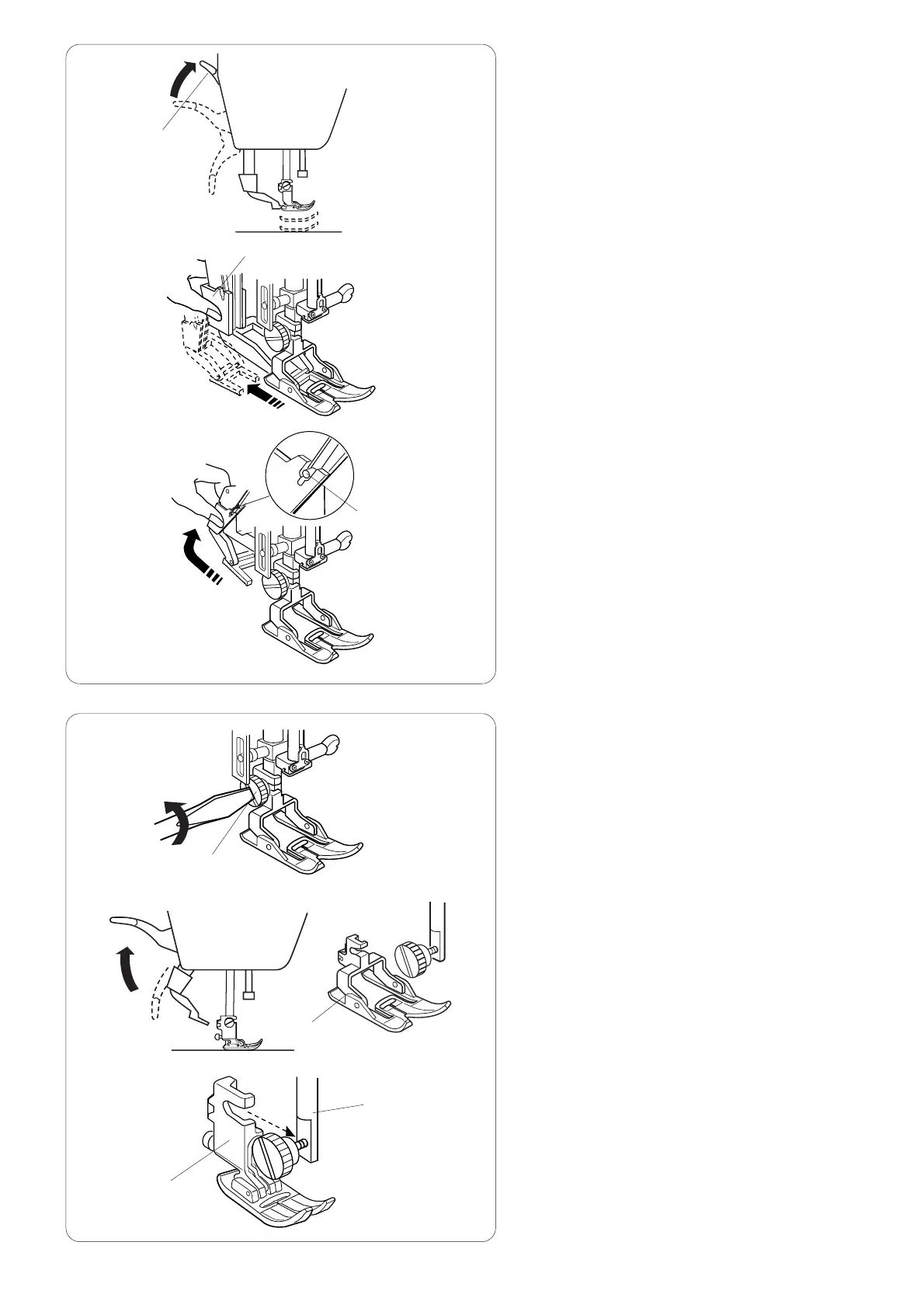

Disengaging the dual feed device
z Raise the presser foot lifter to the extra lifted
position.
1 Extra lifted position
x Pull down the dual feed device to disengage it
from the dual feed foot. Swing the dual feed
device to the rear.
2 Dual feed device
c Swing up the dual feed device until it catches the
pins.
3Pin
Removing the dual feed foot
z Loosen the thumbscrew with the screwdriver.
1 Thumbscrew
x Raise the presser foot and loosen the thumbscrew
to remove the dual feed foot.
2 Dual feed foot
c Attach the foot holder to the presser bar and
tighten the thumbscrew lightly. Lower the presser
foot and tighten the thumbscrew securely with the
screwdriver.
3 Foot holder
4Presser bar
z
c
x
1
3
2
z
c
x
1
2
3
4
