28
800-CT8-LP module www.janitza.com
8. Module communication / PC connection
8.1 Module communication
Configure the current measuring module using the
display and the buttons on the basic device.
The basic device connected to your module or mod-
ule series uses an integrated Ethernet interface for
communication with a PC.
To configure or read out the basic device with mod-
ule or with your module series, the PC must have the
GridVis
®
software installed.
Another option for configuring modules or reading
out measured values may be available via the device
homepage of the basic device.
INFORMATION
Further information on PC connections can be found
in the respective user manual for the basic device.
8.2 PC connection of the basic device with the
current measuring module
The PC connections of the basic device or your
module series via the Ethernet interface are shown
below using the UMG801 as an example for other
basic devices.

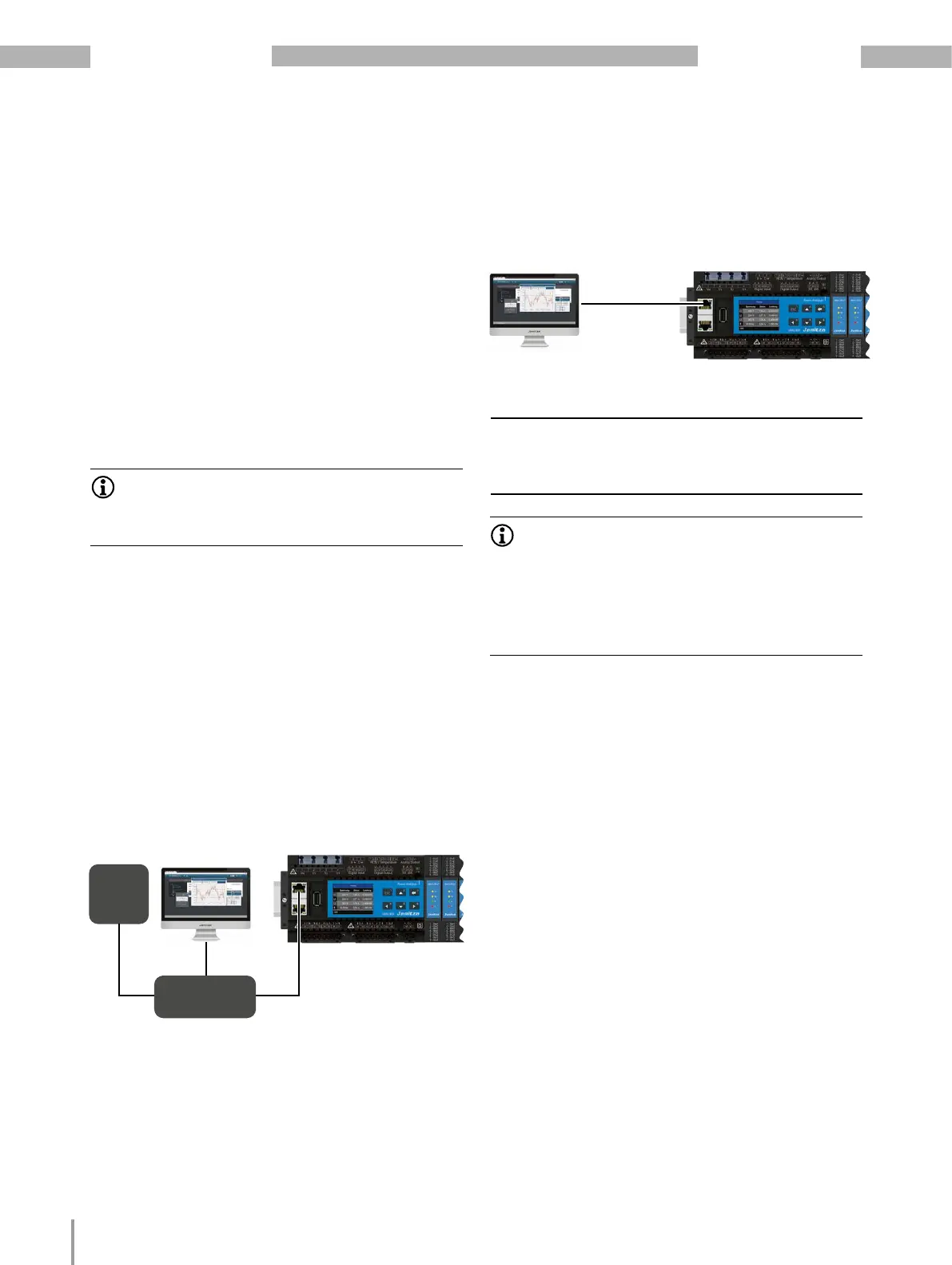

8.2.1 Connection to a DHCP server and PC
The DHCP server automatically assigns IP addresses
to the basic device (with modules) and the PC.
DHCP
server
PC with GridVis
®
Patch cable Patch cable
Basic device with modules
PC with GridVis
®
Patch cable
8.2.2 PC direct connection to the basic device
with current measuring module or your
module series via the Ethernet interface
The PC and basic device require a fixed IP address.
Detailed descriptions of connection via the Ether-
net interface can be found in the user manual for
the basic device.
Fig. example: PC connection with DHCP server and PC
Switch/
Router
Basic device with
modules
Fig. example: PC direct connection
INFORMATION
The figures described are examples! In conjunction
with the basic device, there are numerous variants of
topologies for devices and modules. Please refer to
the usage information for the basic device and the
modules of your devices and module topology.
