800-CT24 module www.janitza.com
36
Basic device
800-CT24
800-CT24
800-CT24
Ethernet A
Ethernet B
JanBus (proprietary) via RJ45 cable (RJ45 patch cable)!
JanBus (proprietary) via RJ45 cable (RJ45 patch cable)!
JanBus (proprietary)
via RJ45 cable
(RJ45 patch cable)!
INFORMATION
· The following menu items show the module-rel-
evant display entries using the UMG801 basic
device for the topology example below.
· Suitable basic devices and their number of module
slots can be found in Sect. “Tab. Suitable basic
devices” on p. 2.
· Please note that the names of the 800-CT24 mod-
ules on the display of the basic device may differ!
You must configure the names of your modules in
the GridVis
®
network analysis software.
· To detect added or removed modules on the basic
device, restart the basic device and the GridVis
®
software. Note in this regard Sect. “7.4 Module
identification / Diagnostics on the basic device” on
p. 28.
1.
Module
2.
Module
3.
Module
9. Operation and button functions of the basic device with module
9.1 Operation and button functions of the basic
device with 800-CT24 module
The basic device with module has a display and
function buttons to enable installation, commission-
ing and configuration without a PC.
INFORMATION
· The configuration of your module and the display of
module-relevant measurement data is carried out
via the basic device.
· For details and information on the display and but-
ton functions of the basic device, refer to the usage
information of the basic device.
· The GridVis
®
network analysis software is available
at www.janitza.com and can be used to configure
your basic device with modules and read out data
for analysis (prerequisite: PC connection to your
basic device).

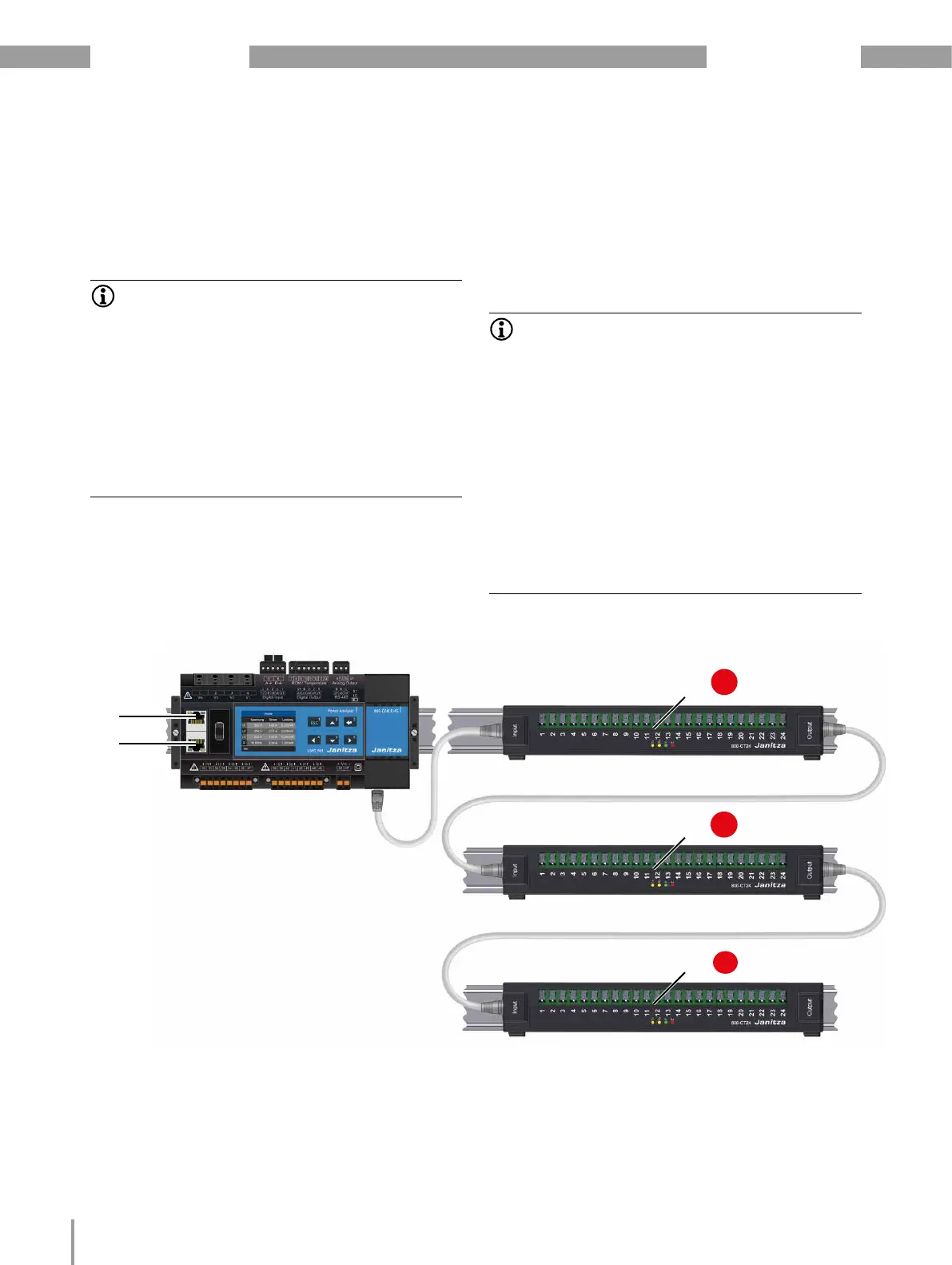

9.2 Module-relevant menu items of the basic
device with 3 modules of the type 800-CT24
This topology example shows the JanBus commu-
nication between the UMG801 basic device, repre-
senting other basic devices, and 3 modules of the
type 800-CT24 via the 800-CONRJ45 module and
an RJ45 cable.
