800-CT24 module www.janitza.com
30
7.4.3 Module identification - LED blink interval
The module identification (diagnostics) procedure
started on the basic device triggers a blink interval
of the LEDs on the modules (e.g. current measuring
modules or digital input modules). The blink interval
of the functions Identify one module and Identify
all modules works the same way for a single module
or for all modules!
Item Description
1
Blink "orange" during operation and signaling
cyclic data exchange (Tx ... Transmit data, Rx...
Receive data).
2
Lights "green" if the supply of power via the
JanBus interface of the basic device is correct, the
device is ready for operation (P ... Power).
3
Lights "red" during initialization/startup and in the
event of a fault (error). Note in this regard Sect.
“15.2 Modules - Error cases” on p. 57.
LED status of the module in operation:
1
2
3
Item Description
1
Blinks "orange" for the Duration of the module
identification.
2
Lights "orange" for the Duration of the module
identification.
3 Lights "green".
4 “Off”
LED status of the module during module identifi-
cation:
1
2
4
3
INFORMATION
During the Duration of individual module identifica-
tion , the blink intervals of all other modules connect-
ed to the basic device are paused!

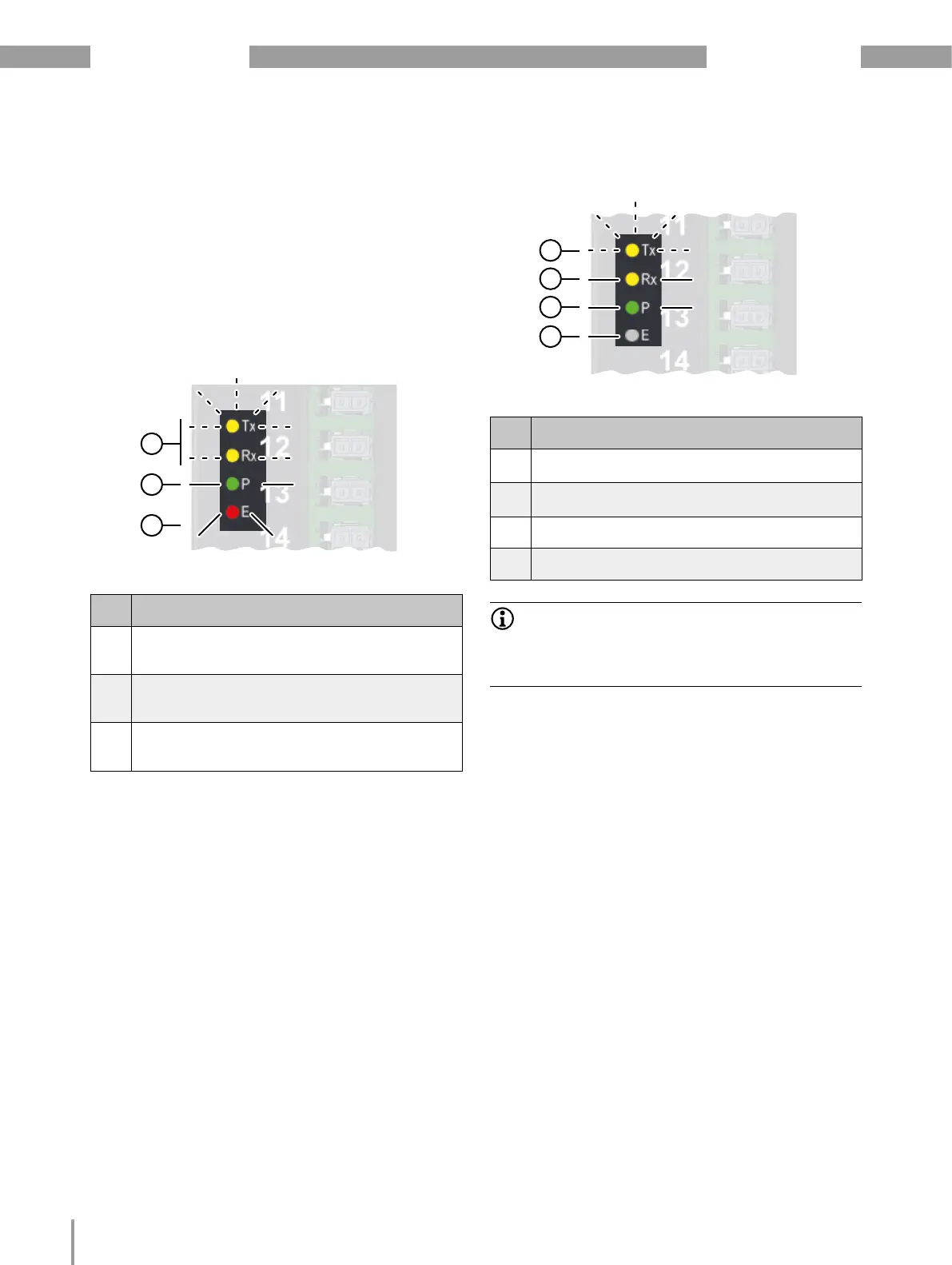

Fig.: LED status during operation
Fig.: LED status during module identification
