Module800-CON-RJ45 www.janitza.com
22
6. Installation
WARNING
Risk of injury due to high currents and high electri-
cal voltages!
Severe bodily injury or death can result from:
· Touching bare or stripped leads that are ener-
gized.
· Inputs of devices, components and modules are
dangerous to touch.
Therefore, please note for your system:
· Disconnect the supply of power before starting
work!
· Secure it against being switched on!
· Check to be sure it is de-energized!
· Ground and short circuit! Use the ground connec-
tion points with the ground symbol for grounding!
· Cover or block off adjacent live parts!
1 - DI8
2 - DI9
3 - DI10
4 - DI11
5 - DI12
6 - DI13
7 - DI14
8 - C2
1 - DI1
2 - DI2
3 - DI3
4 - DI4
5 - DI5
6 - DI6
7 - DI7
8 - C1
1 - DI8
2 - DI9
3 - DI10
4 - DI11
5 - DI12
6 - DI13
7 - DI14
8 - C2
1 - DI1
2 - DI2
3 - DI3
4 - DI4
5 - DI5
6 - DI6
7 - DI7
8 - C1
1 - I5s1
2 - I5s2
3 - I6s1
4 - I6s2
5 - I7s1
6 - I7s1
7 - I8s1
8 - I8s1
1 - I1s1
2 - I1s2
3 - I2s1
4 - I2s2
5 - I3s1
6 - I3s1
7 - I4s1
8 - I4s1
1 - I5s1
2 - I5s2
3 - I6s1
4 - I6s2
5 - I7s1
6 - I7s1
7 - I8s1
8 - I8s1
1 - I1s1
2 - I1s2
3 - I2s1
4 - I2s2
5 - I3s1
6 - I3s1
7 - I4s1
8 - I4s1
Transfer module
800-CON-RJ45 with
output bus connector
Transfer module
800-CON-RJ45 with
input bus connector
6.1 Trouble-free operation
For trouble-free operation of the devices and
thus of the system, connect the transfer modules
for JanBus communication with RJ45 cables (RJ45
patch cables - not included in delivery!). When
mounting, make sure to provide sufficient space
in your installation environment and to observe the
bending radius of the RJ45 cables!
RJ45 cable

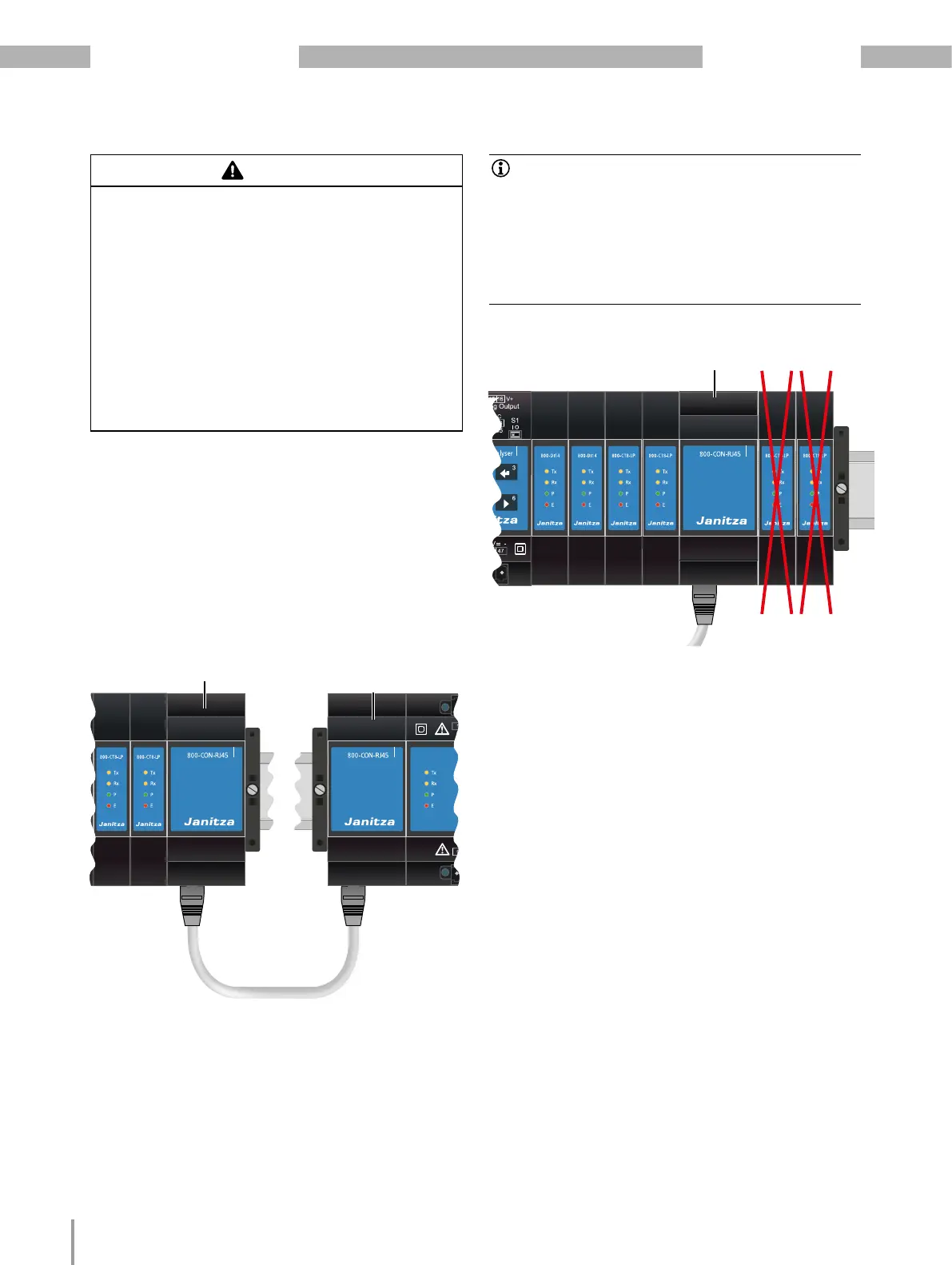

Fig. Example of measurement-device and module topology:
RJ45 cabling of the transfer modules with output and input bus
connectors.
INFORMATION
The 800-CON-RJ45 transfer module with output
bus connector on the basic device or on modules
connected in series
· is always located at the end of a series of mea-
surement devices and modules.
· cannot forward any JanBus communication via
the output bus connector!
1 - DI8
2 - DI9
3 - DI10
4 - DI11
5 - DI12
6 - DI13
7 - DI14
8 - C2
1 - DI1
2 - DI2
3 - DI3
4 - DI4
5 - DI5
6 - DI6
7 - DI7
8 - C1
1 - DI8
2 - DI9
3 - DI10
4 - DI11
5 - DI12
6 - DI13
7 - DI14
8 - C2
1 - DI1
2 - DI2
3 - DI3
4 - DI4
5 - DI5
6 - DI6
7 - DI7
8 - C1
1 - I5s1
2 - I5s2
3 - I6s1
4 - I6s2
5 - I7s1
6 - I7s1
7 - I8s1
8 - I8s1
1 - I1s1
2 - I1s2
3 - I2s1
4 - I2s2
5 - I3s1
6 - I3s1
7 - I4s1
8 - I4s1
1 - I5s1
2 - I5s2
3 - I6s1
4 - I6s2
5 - I7s1
6 - I7s1
7 - I8s1
8 - I8s1
1 - I1s1
2 - I1s2
3 - I2s1
4 - I2s2
5 - I3s1
6 - I3s1
7 - I4s1
8 - I4s1
1 - I5s1
2 - I5s2
3 - I6s1
4 - I6s2
5 - I7s1
6 - I7s1
7 - I8s1
8 - I8s1
1 - I1s1
2 - I1s2
3 - I2s1
4 - I2s2
5 - I3s1
6 - I3s1
7 - I4s1
8 - I4s1
1 - I5s1
2 - I5s2
3 - I6s1
4 - I6s2
5 - I7s1
6 - I7s1
7 - I8s1
8 - I8s1
1 - I1s1
2 - I1s2
3 - I2s1
4 - I2s2
5 - I3s1
6 - I3s1
7 - I4s1
8 - I4s1
Transfer module
800-CON-RJ45
with output bus connector
Fig. Example of measurement-device and module topology:
No forwarding of JanBus communication by transfer modules
with output bus connectors.
