Module800-CON-RJ45 www.janitza.com
16
4. Mounting
CAUTION
Disregard of the installation instructions may
cause property damage or personal injury!
Disregard of the installation instructions may cause
damage to your basic device with module or destroy
it and/or may also result in personal injury.
· In addition to the installation instructions for
your module, also observe the installation
instructions for your basic device, in particular
the safety and warning information.
· Before installing modules
- Disconnect the supply of power to the system!
- Secure it against being switched on!
- Check to be sure it is de-energized!
- Ground and short circuit!
- Cover or block off adjacent live parts!
· Operate the basic device that belongs to the
800-CON-RJ45 module only with a supply
voltage of 24V! Observe the technical specifi-
cations in the usage information for the basic
device.
· Provide adequate air circulation in your installa-
tion environment and cooling, as needed, when
the ambient temperatures are high.
· Return defective modules to Janitza electronics
GmbH in accordance with the shipping in-
structions for air or road freight (complete with
accessories).
· All usage information is available for download
at www.janitza.com.
Please note before installing the module:
The scope of delivery of the 800-CON-RJ45 transfer
module includes one input and one output bus
connector each, so that each transfer module can
be used with the corresponding bus connector at
the output or input of a measurement-device and
module series (see the step "Device description and
example topologies").
INFORMATION
· The following module assembly sequence must
be observed!
· Always mount the components of your JanBus
system starting from the output bus connector
to the input bus connector. This will avoid an
incorrect connection of remote JanBus systems!
Cf. Sect. “6.2 Data transfer with 800-CON-RJ45
module” on p. 23.
· Allow for sufficient space in your installation en-
vironment and for the bending radius of the RJ45
cables.
· Use end brackets to set up your meter and mod-
ule topology on a suitable DIN rail (for DIN rail
types, see Sect. “8. Technical data” on p. 29).
4.1 Mounting the transfer module with output
bus connector
While observing the mounting instructions for your
basic device or the connected module (e.g. check
the bus connector mounting!), mount the 800-CON-
RJ45 transfer module with output bus connector
when the system is disconnected from the power
supply as follows:

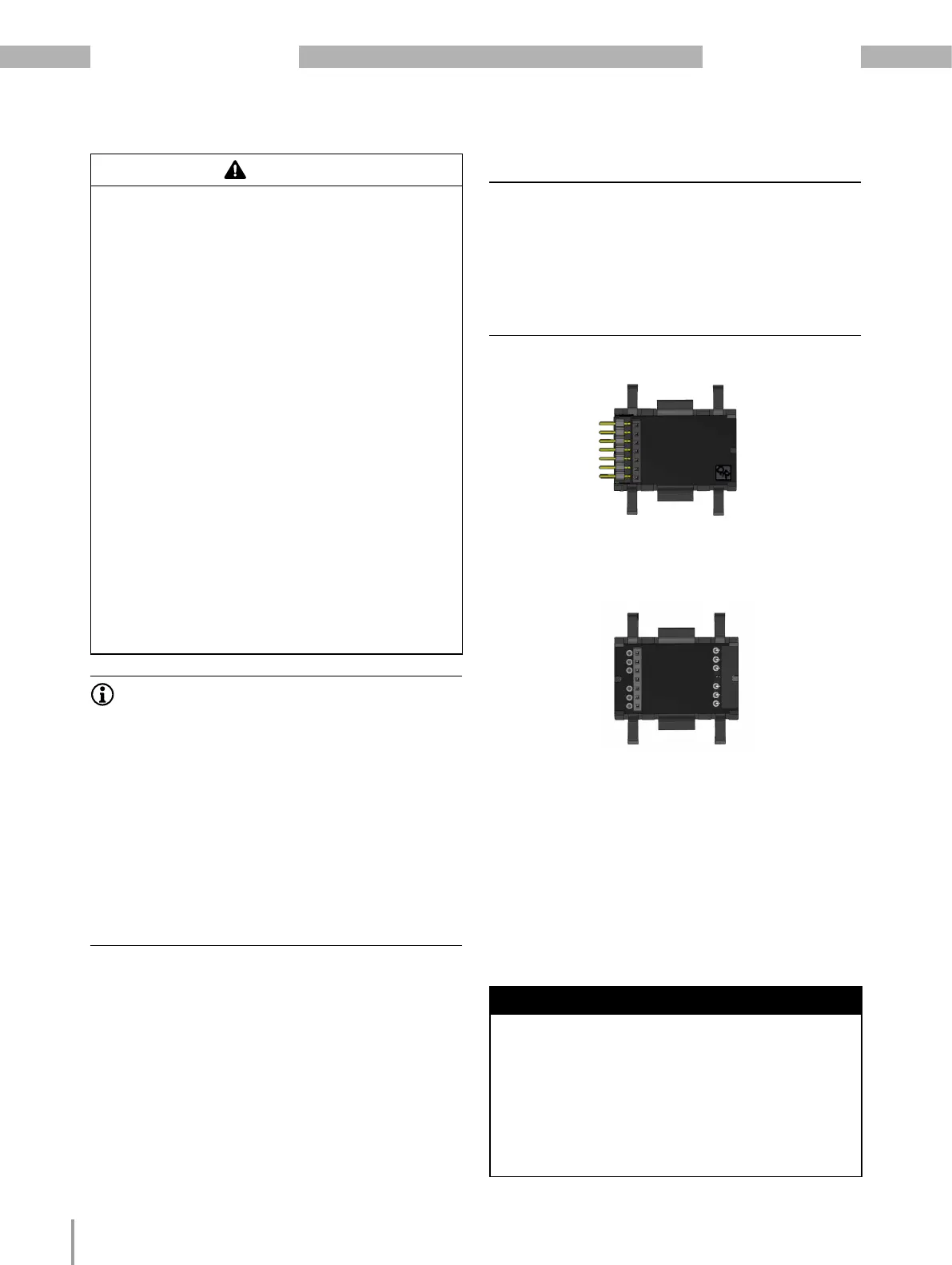

Output bus connector 2HP (horizontal pitches)
Fig.: Output bus connector for the 800-CON-RJ45 transfer
module at the output of a series of measurement devices and
modules.
Input bus connector 2HP (horizontal pitches)
Fig.: Input bus connector for the 800-CON-RJ45 transfer module
at the input of a series of measurement devices and modules.
ATTENTION
Improper handling may cause damage to the
module and result in material damage!
The contacts of the bus connectors (JanBus interface)
can bend or break off and destroy the bus connector.
· Never touch or manipulate the contacts of the
bus connector!
· Never force the bus connector into the module!
· When handling, transporting and storing the
module, protect the contacts of the bus con-
nector!
