Module800-CON-RJ45 www.janitza.com
12
3. Product description
3.1 800-CON-RJ45 transfer module
The 800-CON-RJ45 transfer module transmits the
JanBus communication of a suitable basic device
(see „Tab. Suitable basic devices“ on p. 2) via an
RJ45 cable (RJ45 patch cable) to remote measure-
ment points.
The transfer module allows the implementation of
measurement device and module topologies using a
flexible arrangement of DIN rails (see Sect. “8. Tech-
nical data” on p. 29 for suitable types) in switch-
board cabinets or small distribution boards.
The JanBus interface of the 800-CON-RJ45 trans-
fer module is a proprietary RJ45 JanBus inter-
face! Do not connect to RJ45 Ethernet interfaces!
INFORMATION
When setting up your meter and module topology,
note the following:
· The scope of delivery for the 800-CON-RJ45
transfer module includes one input and one out-
put bus connector each, so that each transfer
module can be used with the corresponding bus
connector at the output or input of a measurement
device and module series.
· The maximum bus length (JanBus - proprietary)
for setting up measurement device and module
topologies can be found in Sect. “8. Technical
data” on p. 29.
· In addition to the usage information for the
800-CON-RJ45 module, also observe all usage
information for the modules and components
integrated in the JanBus topology, especially that
of your basic device!

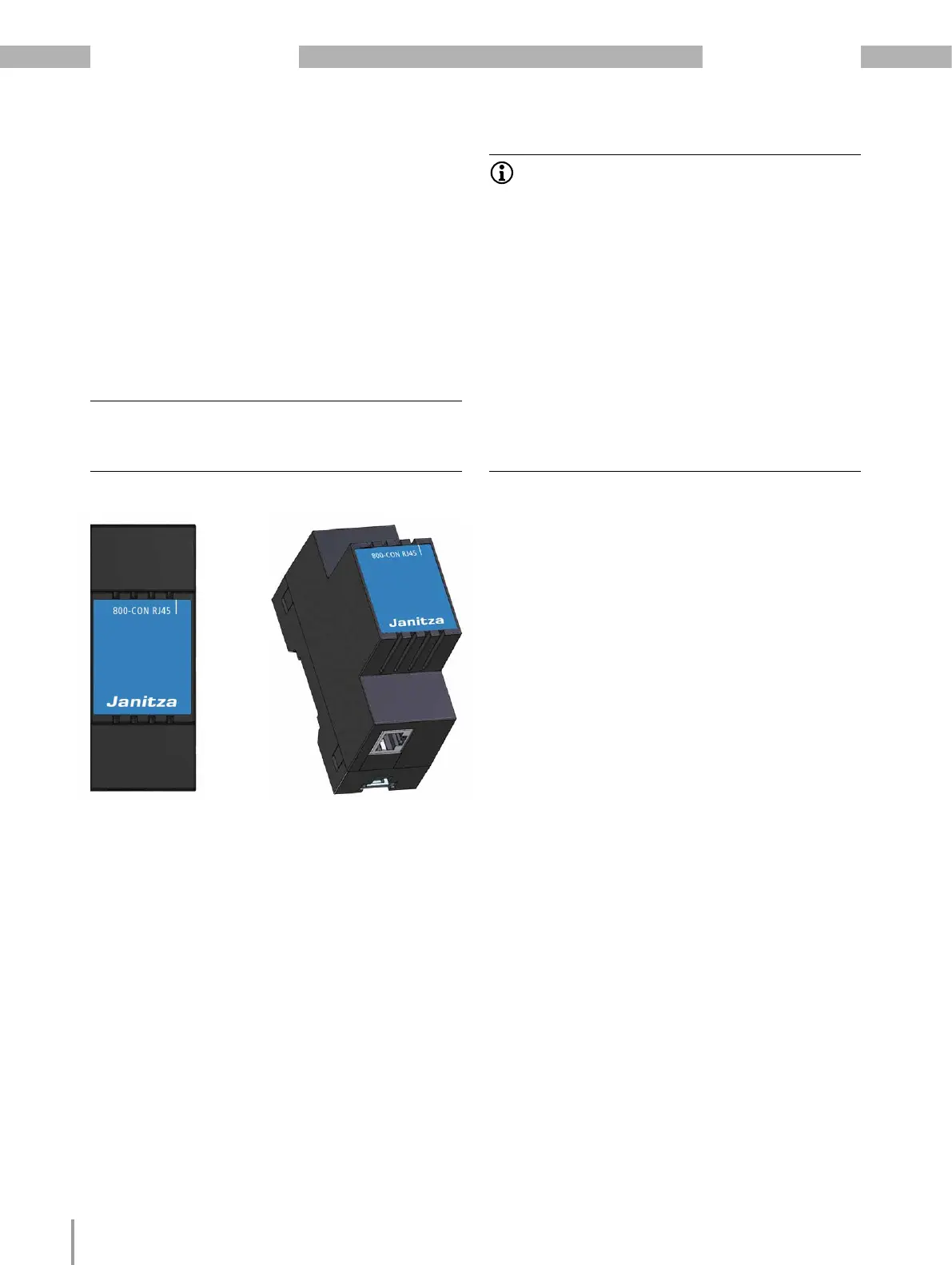

Fig.: Transfer module
800-CON-RJ45 - top view
Fig.: Transfer module
800-CON-RJ45 - 3D view
with proprietary RJ45 JanBus
interface
