ENGLISH Jandy
®
Commercial Salt Chlorinator | Installation & Operation Manual
Section 3. Installation Instructions
WARNING
When using electrical products, basic precautions should always be
followed, including the following:
• RISK OF ELECTRIC SHOCK WHICH CAN RESULT IN SERIOUS
INJURY OR DEATH. Before attempting installation or service,
ensure that all power to the device is disconnected/turned off at
the circuit breaker.
• Grounding is required. The unit should be installed by a qualified
service representative and should be properly grounded.
• Install to permit access for servicing.
• Read the Important Safety Instructions section. Before
attempting any electrical wiring, be sure to read and follow
Safety Instructions. Wiring should only be attempted by a
qualified professional.
3.1 Installation of Power Supply
Always install the power supply of the salt
electrolysis systems VERTICALLY on a solid and
rigid surface (wall) as shown in the recommended
installation diagrams. In order to guarantee a good
state of conservation, the power supply should be
installed in a well-ventilated dry place. Due to IP
degree of the power supply, the salt electrolysis
systems should not be installed outdoors. The power
supply should be installed a bit distant from the
electrolysis cell so that it cannot accidentally suffer
water splashes.
Beware of corrosive atmosphere formation due
to pH decreasing solutions (specially, those ones
based on hydrochloric acid “HCl”). Do not install
the salt electrolysis systems near to any stores
of these chemicals. We strongly recommend the
use of chemicals based on sodium bisulphate or
diluted sulphuric acid.
Power supply must be connected to the electrical
control box of the pool, so that the pump and the
salt electrolysis systems are turned on (and off)
simultaneously.
IMPORTANT
Circuit breaker curve specification should be “D” or “K”.

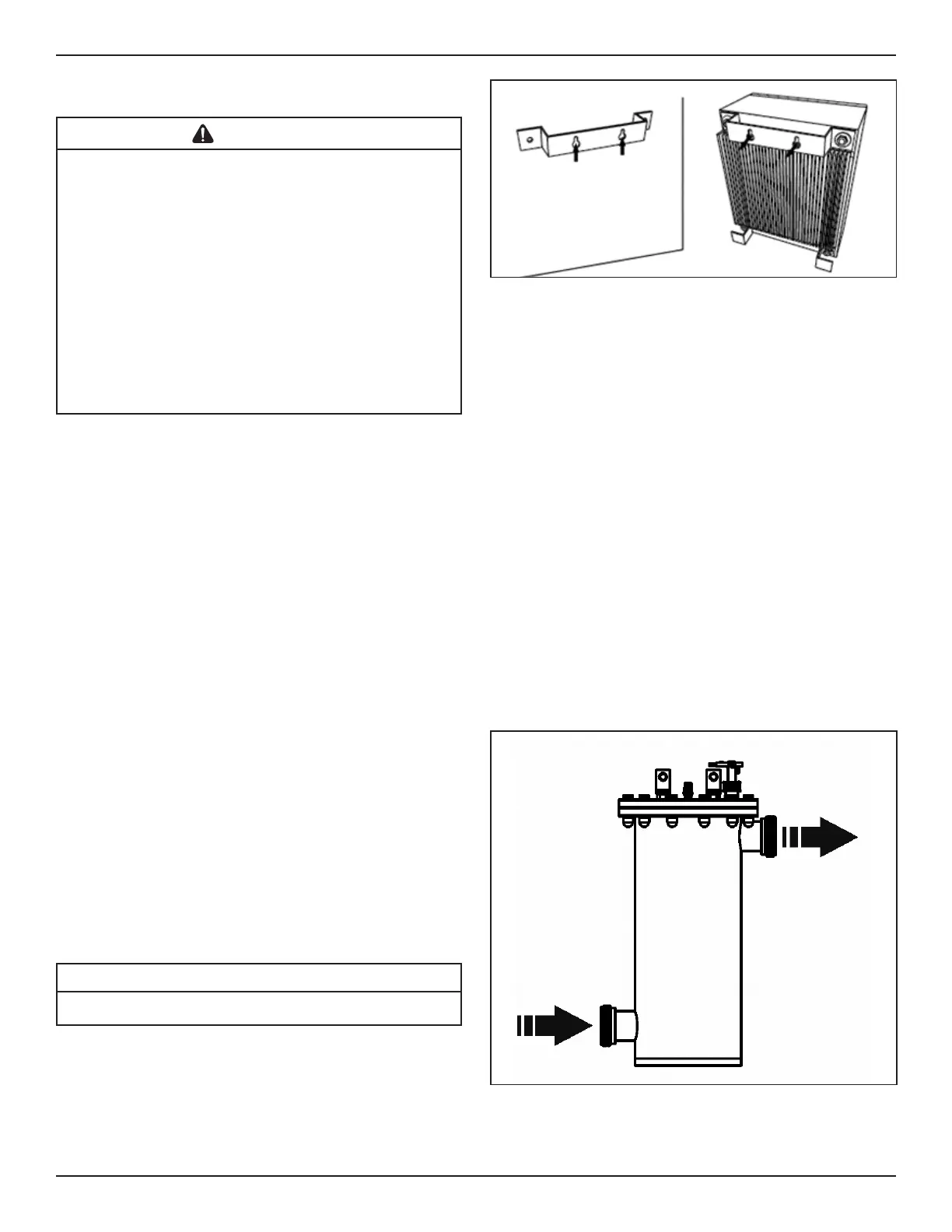

Figure 3. Power Supply Bracket
3.2 Installation of the Electrolysis Cell
The electrolysis cell is made of polypropylene
in whose interior the electrodes are placed.
Theelectrolysis cell must be always installed
indoors and after the pool filter, and after any other
equipment that may be present (heat pumps, control
systems, etc.).
The installation of the cell should allow easy
access to the installed electrodes by the user.
Theelectrolysis cell should be installed VERTICALLY
in a place of the pipe that can be easily isolated
from the rest of the installation by two valves,
so that the tasks of maintenance can be carried
out with no need of partial or total draining of the
swimmingpool.
Where the cell is installed on a by-pass
(recommended option), a valve to regulate the flow
must be introduced.
Figure 4. Vertical Installation
