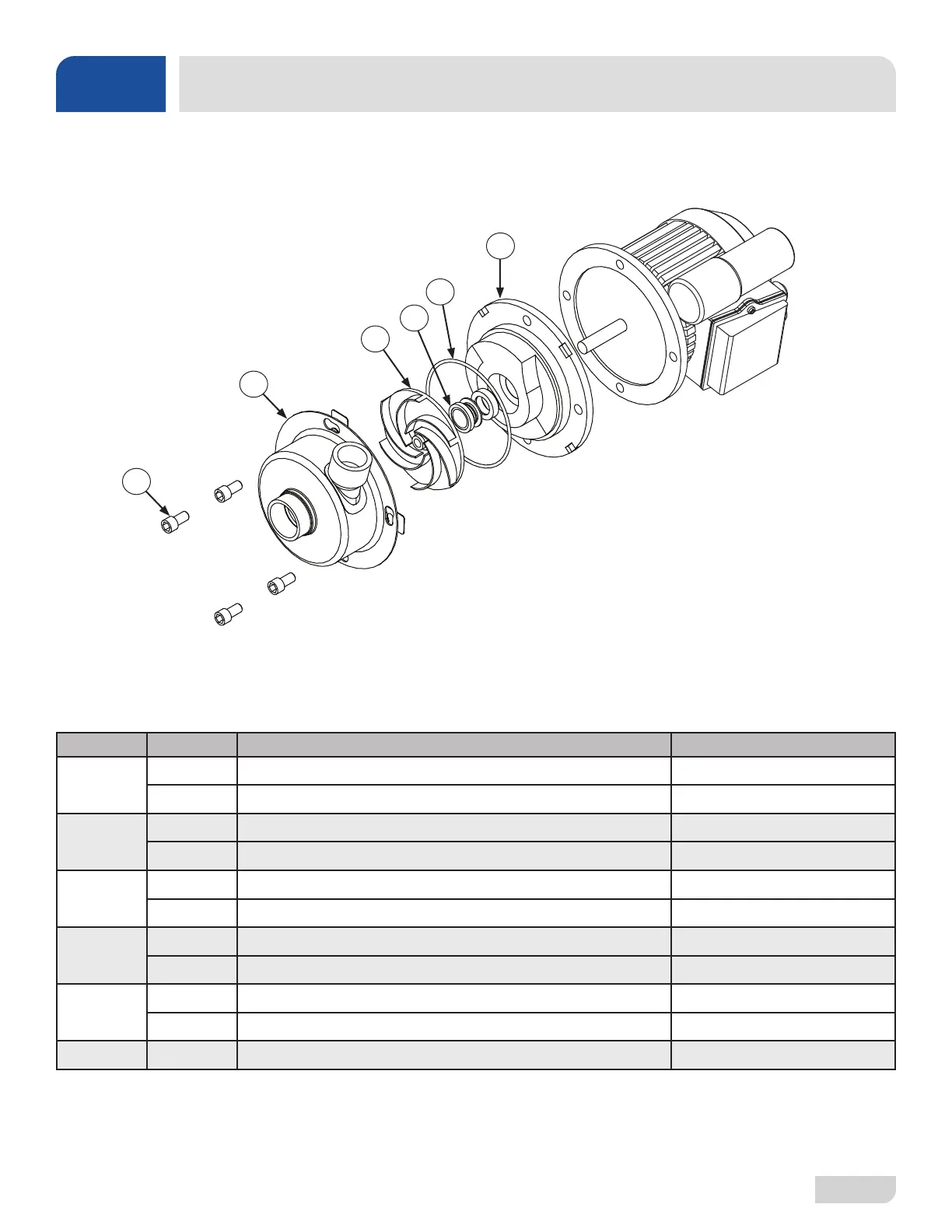

MOTORS
PARTS
ITEM QTY DESCRIPTION PART NUMBER
1
1 Seal Plate, 208/230 V 05700-002-81-87
1 Seal Plate, 460 V 05700-002-06-22
2
1 Case O-ring, 208/230 V 05330-002-81-83
1 Case O-ring, 460 V 05330-002-87-02
3
1 Mechanical Seal, 208/230 V 05330-002-34-22
1 Mechanical Seal, 460 V 05330-002-87-16
4
1 Impeller Assembly, 208/230 V 05700-002-81-86
1 Impeller Assembly, 460 V 05700-002-06-19
5
1 Pump Casing 208/230 V 05700-002-85-01
1 Pump Casing 460 V 05700-002-06-20
6 1 Case Capscrew, 208/230 V 05305-002-81-88
Parts
(See previous page for complete assemblies.)
The models covered in this manual come supplied with various wash motors (see previous page), depending on the
characteristics of the machine. To ensure you order the correct parts for the model you are servicing, please refer to the
following table:
1
2
3
5
6
4
