37
07610-004-91-86-D

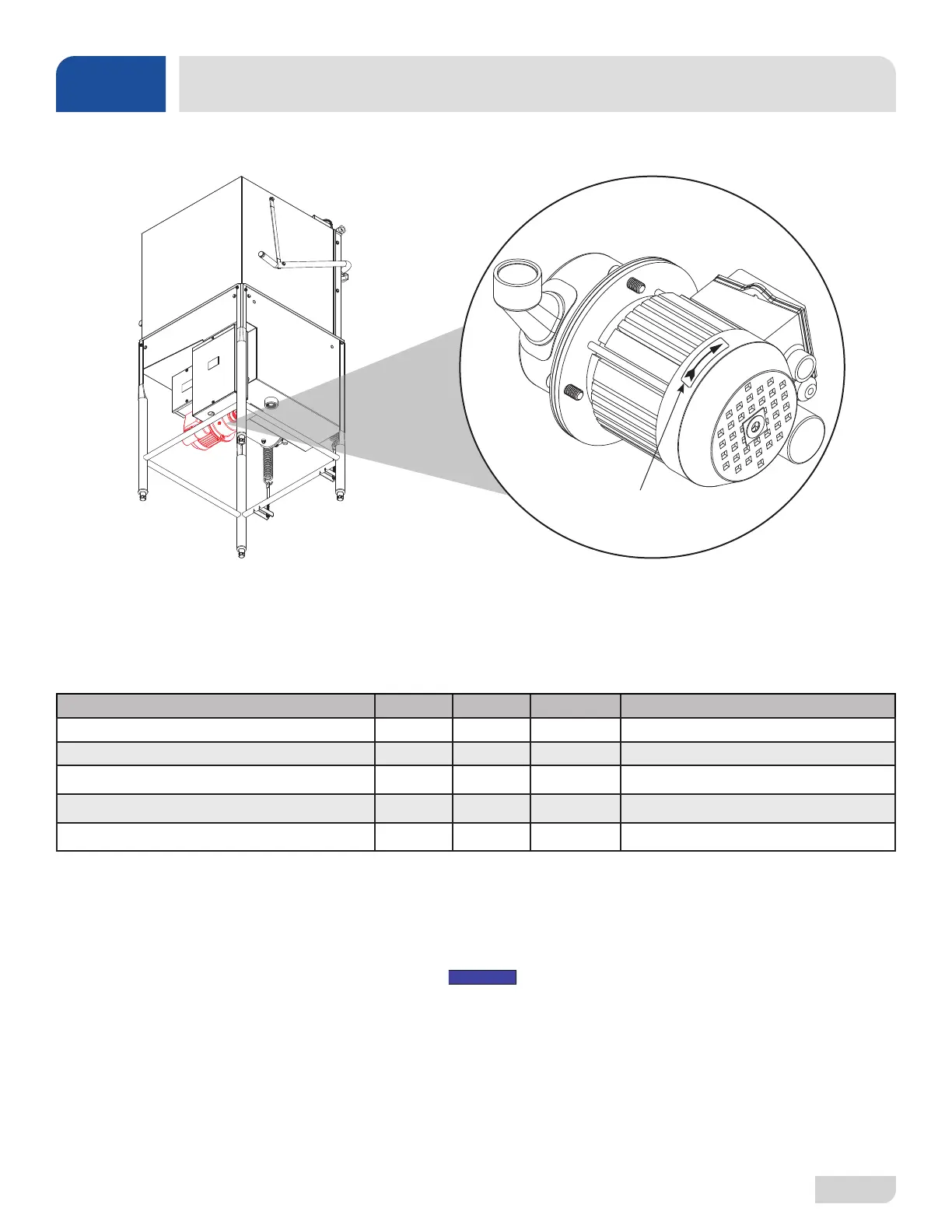

MOTORS
PARTS
MODEL VOLTS Hz PHASE WASH MOTOR ASSEMBLY
All 208 60 1 06105-004-24-80
1
All 208 60 3 06105-004-24-80
1
All 230 60 1 06105-004-24-80
1
All 230 60 3 06105-004-24-80
1
All 460 60 3 06105-121-64-21
2
The models covered in this manual come supplied with various wash motor assemblies (a wash motor assembly includes
the wash motor and the pump end), depending on the characteristics of the machine. To ensure you order the correct
wash motor assembly for the model you are servicing, please refer to the following table:
When servicing a wash motor, it is important to refer to the wiring schematic found on the motor to ensure the motor is wired correctly.
Dierent manufacturers of motors might not use the same wire color codes and your new motor might not connect using the same
wires. Always refer to the wiring diagrams on the motor you are installing. If the motor you are installing has had the schematic
removed, contact the manufacturer immediately for technical support.
NOTICE
1
Use P/N 06105-004-32-04 to order the motor only.
2
Use P/N 06105-002-62-71 to order the motor only.
460 V: See Motor
Rotation section.
Complete Assemblies
(See next page for parts.)
