7
07610-004-43-79-D
Electrical and grounding conductors must comply with the applicable portions of the
National Electric Code ANSI/NFPA 70 (latest edition) and/or other electrical codes.
The data plate is located on the left-front of the dishmachine. Refer to the data plate for
machine operating requirements, machine voltage, total amperage, and serial number.
Remove the back panel and set aside. Remove the terminal block box cover. Install
3/4” conduit into the hole in the bottom of the terminal block box. Route power wires and
connect to terminal block. Install the grounding wire onto the lug provided. “DE-OX” or
another similar anti-oxidation agent should be used on all power connections.
208/230 V 460 V
Apply power to machine. Check the incoming power at the terminal block and ensure
it corresponds with the voltage listed on the data plate. If not, contact a qualied
service agency to examine the problem. Do not run the machine if voltage is too
high or too low. Advise all proper personnel of the location of the breaker and any
problems. Replace the terminal block box cover and tighten-down the screws.
This is a commercial machine and reaches temperatures that can exceed those
generated by a residential machine. Surrounding countertops, cabinets, ooring
material, and subooring material must be designed and/or selected with these higher
temperatures in mind.
The temperature setpoints on this unit have been set at the factory. They should only
be adjusted by an authorized service agent.
INSTRUCTIONS
INSTALLATION
ELECTRICAL POWER
CONNECTIONS
Disconnect electrical
power at the breaker or
disconnect switch and
tag-out in accordance with
procedures and codes.
TEMPERATURE
SETPOINTS
SURROUNDING AREA
VOLTAGE CHECK
i

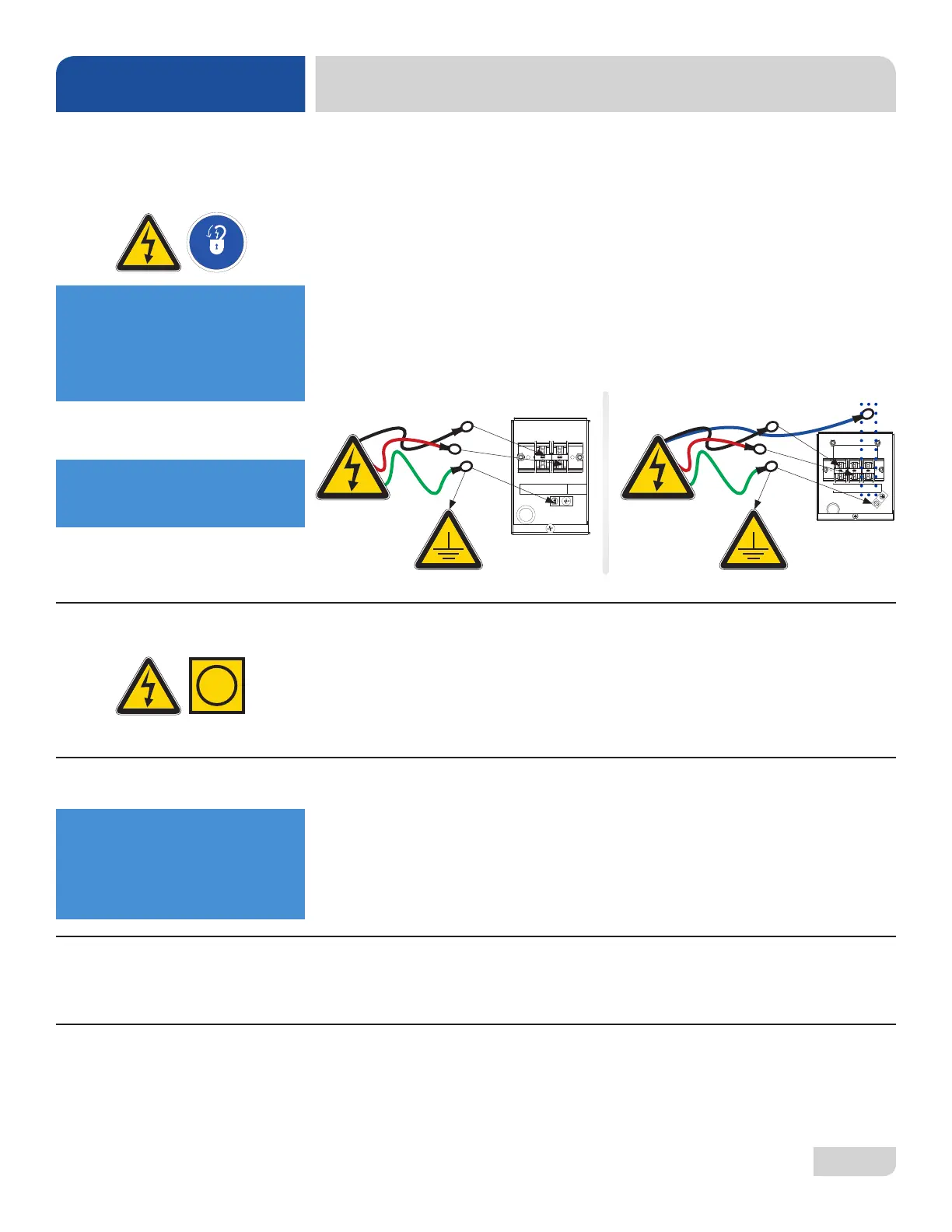

L1 N
Ground
LEVELING
A level machine is important to prevent any damage to the machine during operation
and to ensure the best possible results. The machine comes equipped with adjustable
bullet feet which can be turned using a pair of pliers. Since this machine is an
undercounter unit, it should be leveled as close as possible to the unit's location
before it is pushed under the counter.
Damage to materials not
recommended for higher
temperatures will not be
covered under warranty or
by the manufacturer.
L1 L2 L3
Ground
3Φ
On the 460 V machine, the
imbalanced wild leg goes
to L3.
