Hardware Installation
This product’s versatility allows it to be used as either a switch where you can have
multiple sources that could be your PC, Blu-ray, or satellite box (up to 10) available
to stream dierent contents, one at a time to a single display in switch mode, or
you can have 1 source streaming to 4 displays all at once in splitter mode. Splitter
mode is ideal for digital signage, oce presentations, digital menus at fast food
places, ight schedules, etc. All this is done wirelessly so there are no unsightly, or
expensive wires to run.

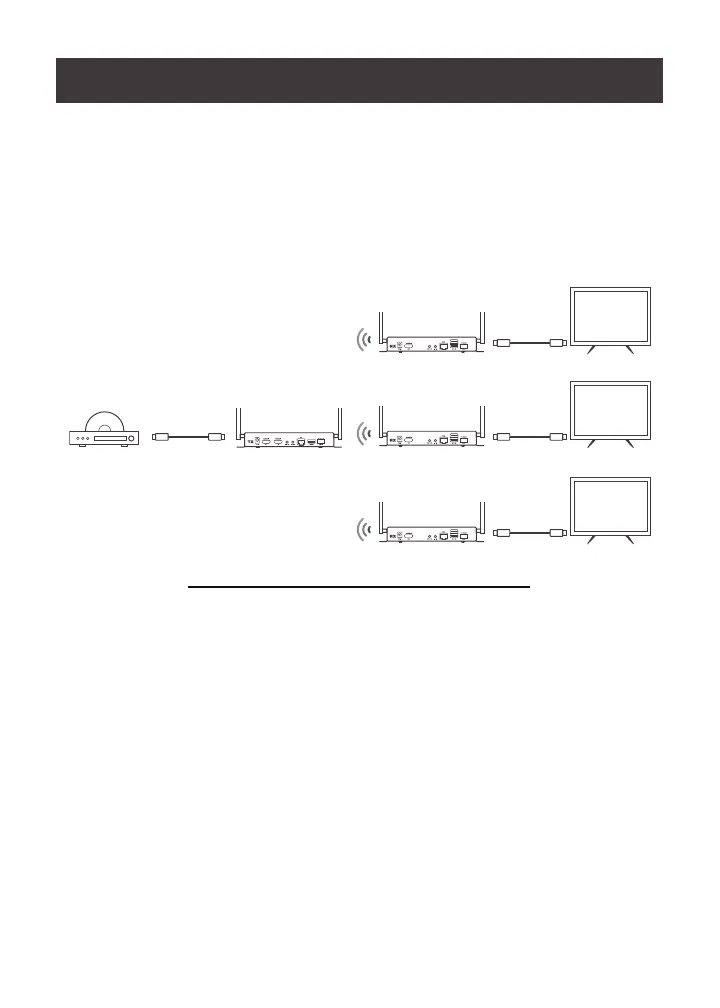

Splitter Mode Display (1 transmitter to 1, 2, 3, or 4 receivers) (default):
Adding Additional Receivers in Splitter Mode
1. Position the toggle switch to Splitter Mode (SP) on both the Receiver and the
Transmitter.
2. Connect 12V/1A power adapter to the transmitter. Power on the transmitter
and wait till both the power and the link lights are on solid.
3. Connect 12V/1A power adapter to the receiver. Power on the receiver and wait
till the power and the link lights are on solid.
4. Plug the HDMI cable from the receiver HDMI Out port to the transmitter HDMI
IN port (please refer to the diagram next page).
5. The STA LED on the receiver will ash when pairing and will turn solid at this
time the transmitter STA LED will start to ash and then turn solid. The pairing
of the transmitter and receiver is now complete.
6. The transmitter Wi-Fi LED will then start to ash indicating the transmitter is
now transmitting contents. Please note that this step is necessary for every
additional receiver added to the transmitter.
7. After pairing, connect your wired HDMI display (using an HDMI cable) to the
Transmitter HDMI Out port (optional), and connect your source device to
HDMI In port on the Transmitter.
8. For adding additional receivers, repeat step 3-7.
