8.8.6 Wiring the outdoor sensor to the indoor unit (optional)

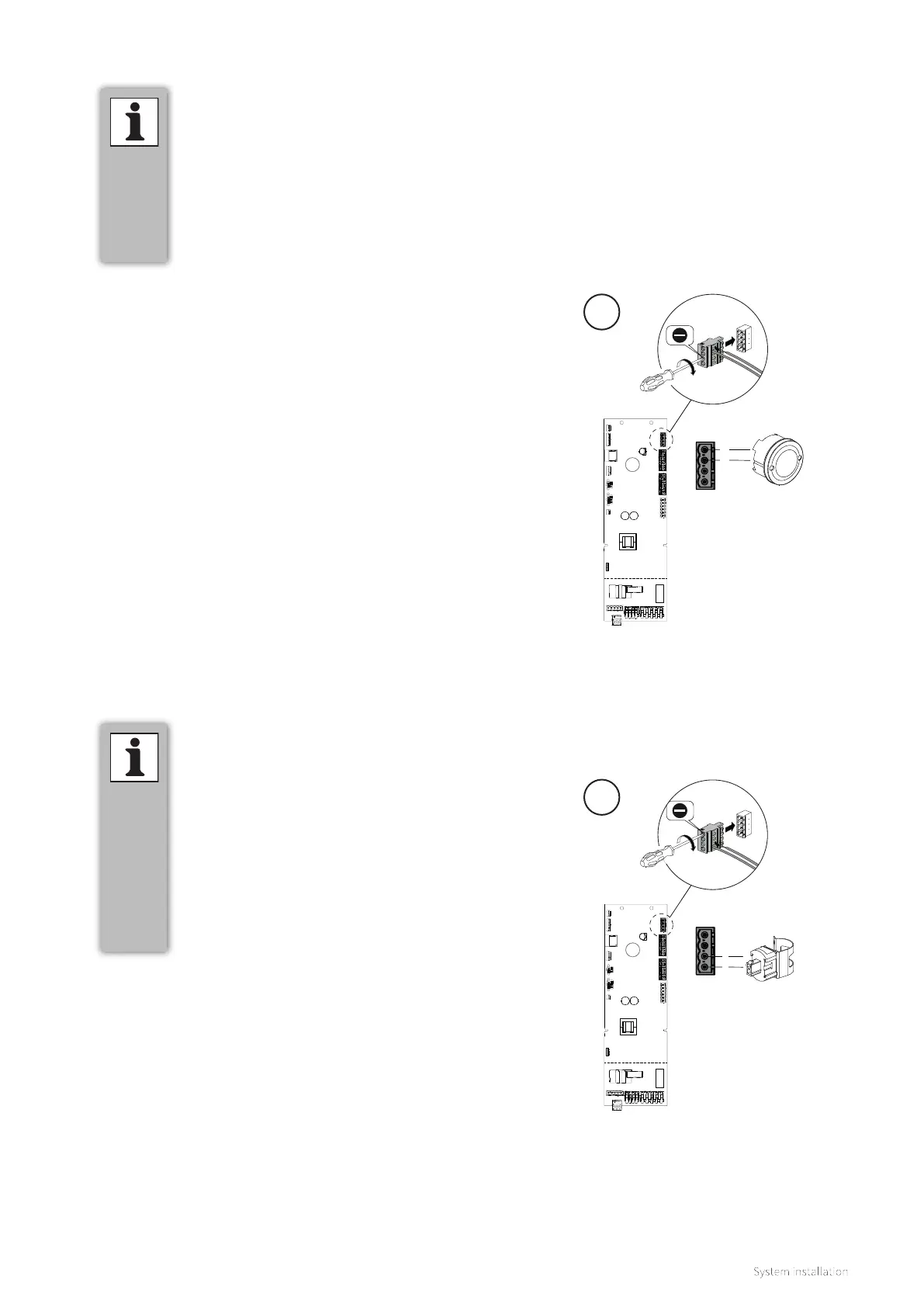

1. Connecting the outdoor sensor T42
Using the 4-pole green connector, included with the kit, wire
the connections to screw terminals 1 and 2 and then push this
into position X5 of the indoor unit, as shown in the adjacent
illustration (1).
Set Parameter P006 to ‘1‘.
For optimal function of the external sensor:
► Do not place it in the sun (preferably it should face North) or
North-West;
► Do not place it where it may be influenced by other heat
sources, for example near an external extraction vent or
boiler flue terminal.
When it is not possible to install the external sensor, the system
can function without it, by setting parameter P006 to ‘0‘.
NOTES
► If the hybrid system is controlled based
on a heating curve, it is important for the
external sensor T42 to be connected.
► Please note: The external sensor is not part
of the standard package and is available as
a set. Article number: 090064
► The 2 x 0.8 mm cable for the external
sensor is not part of the standard package.
X5
Outdoor sensor
T42
X0
X1
X14
X2
X3
X4
X5
X13
1
2
X5
1
2. Connecting the external temperature sensor T43.
Using the 4-pole green connector, included with the kit, wire
the connections to screw terminals 3 and 4 and then push this
into position X5 of the indoor unit, as shown in the adjacent
illustration (2).
Set Parameter P123 to ‘1‘.
8.8.7 Wiring a T43 NTC temperature sensor to the indoor unit (optional)
NOTES
► If the hybrid system is controlled based on
a heating curve or is connected to an ON/
OFF boiler (see §11.5, it is important for
the external temperature sensor T43 to be
connected.
► Please note: The temperature sensor is
not part of the standard package and is
available as a set. Article number: 090064
► Always use the included NTC sensor and
cable to ensure correct operation of the
system.
X5
X5
X0
X1
X14
X2
X3
X4
X5
X13
X5
Temperature sensor
T43
3
4
2
