34
min. 300
min. 2000
min. 150
min. 150
level = +0
min. 600

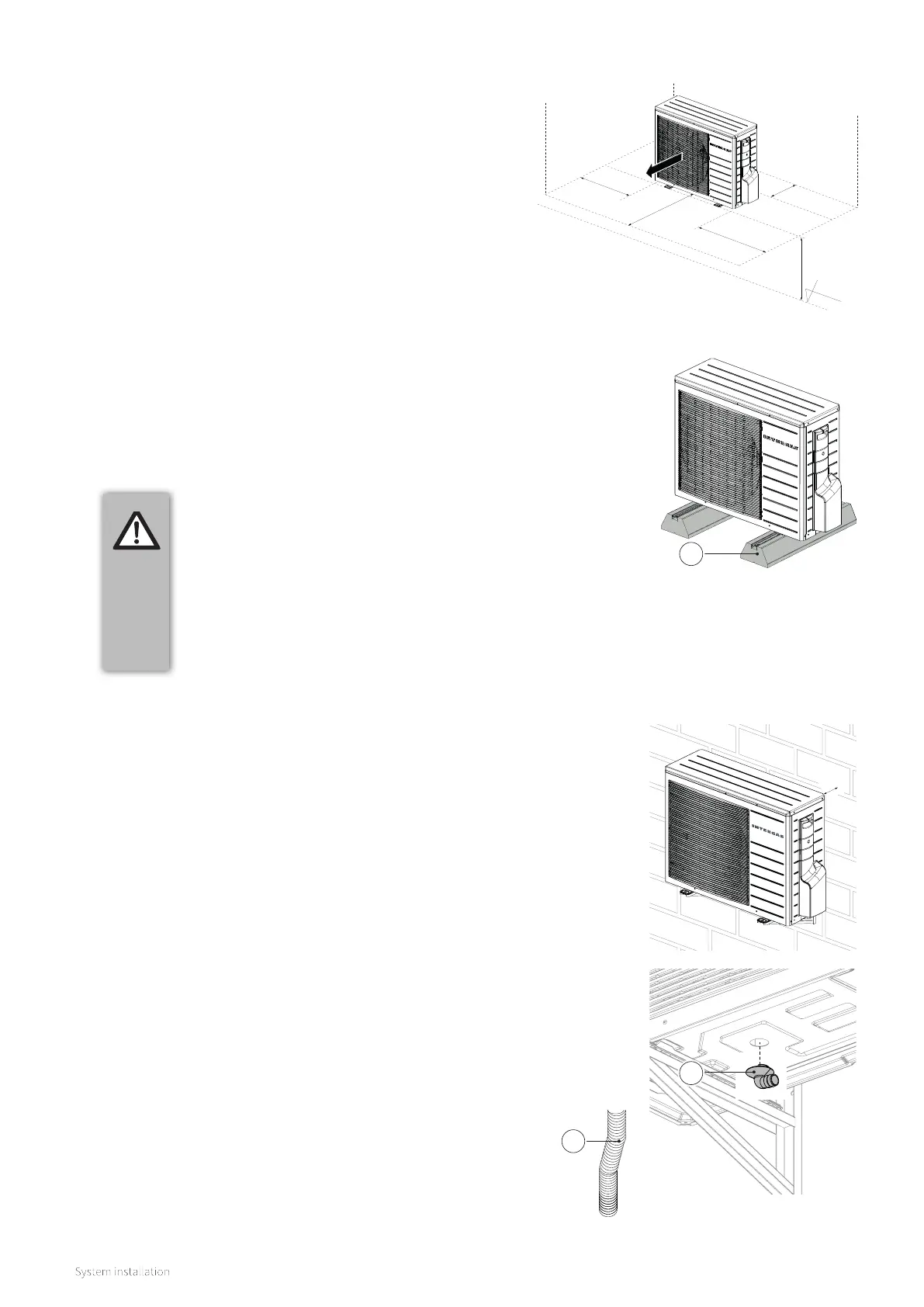

8.5.3 Installing the outdoor unit
► Provide suicient space around the outdoor unit for
maintenance and repair work to be carried out safely.
► Ensure that the distance between ground level and the
underside of the outdoor unit is at least 150 mm, to prevent
the unit from sucking in splash water, snow dris or street
dirt.
► There should be no less than 150 mm of free space from the
back of the outdoor unit.
Air outlet
► For noise reduction purposes, the outdoor unit must be
level and placed on suitable anti vibration footrests (A).
► Preferably place the outdoor unit on a gravel bed, equipped
with an soakaway pit for draining o condensation water.
The condensation drain hose or pipework must be insulated
with a UV tolorant pipe lagging to prevent freezing.
IMPORTANT
► Placing the outdoor unit on a solid base
or flat roof can lead to its underside
or the outlet side of the fan freezing,
especially during the winter months.
► If the outdoor unit is mounted on a
flat roof, we recommend using longer
anti vibration footrests to prevent it
from blowing over.
On a wall
If the outdoor unit is being secured to the facade, do the
following:
► Make sure that the wall is sturdy enough to bear the weight
of the outdoor unit.
► Choose a wall with enough mass to dampen any vibrations.
► Ensure that the outdoor unit is easily and safely accessible
for maintenance work, if base is above 1000 mm then a
purpose made permanent platform must be present.
► Make sure that there is enough space around the outdoor
unit, so that it can move air without any restrictions. There
should be no less than 150 mm of free space from the back
of the outdoor unit.
► Condensation water must drain correctly, use the supplied
drain connection elbow (A) and flexible hose (B) to help
facilitate the connection to a soakaway or drain.
A
min. 150
A
Connecting the drain plug:
1. Clip the drain plug into the opening at the bottom of the
outdoor unit.
2. Connect the flexible drain hose onto the drain plug.
NOTE: If the outdoor unit is placed directly over a gravel bed
type soakaway then the drain connection (A) can be omitted
allowing the condensate water to drip directly out the
housing onto the gravel.
B
