IMPORTANT
► Make sure that the syphon base is
returned to its original position, firmly
locked into the bottom with no gaps.
Incorrectly attaching the syphon base
(or not attaching it at all) will result in
products of combustion leaking into the
room creating a dangerous situation.
77

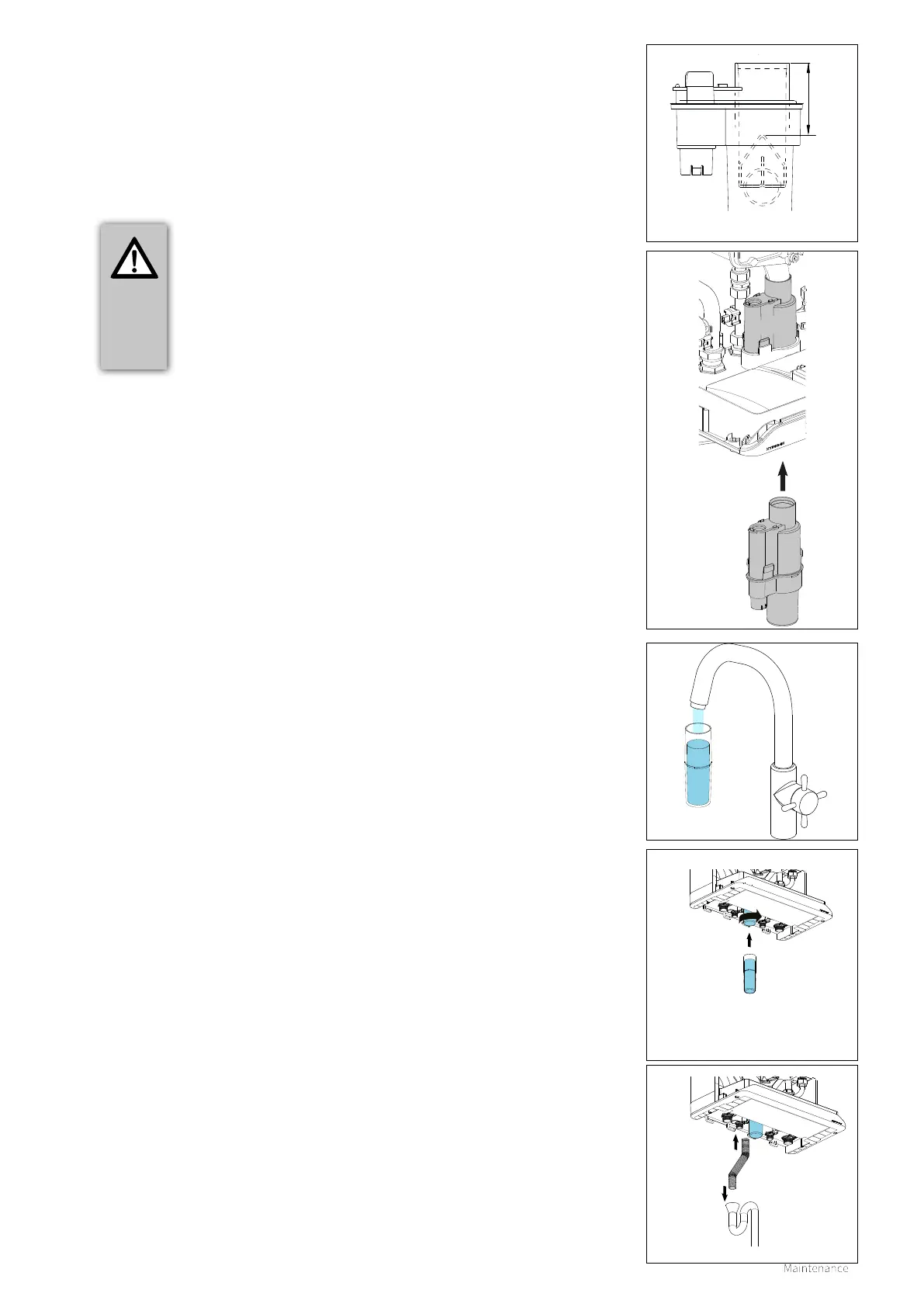

► Return the plastic ball to the syphon base and attach the
circlip.
► Check that the ball and circlip have been installed correctly
(6). Make sure that the top of the circlip is about 6 cm below
the edge of the syphon base.
► Replace the O-ring (art. no. 086154) at the bottom of the
exhaust manifold.
► Attach the syphon base to the bottom by pushing it high
enough so that the securing clips click over the lip (7).
► Make sure that the syphon cup is filled with ¾ water (8) before
placing it back, slide it into the syphon base and rotate it a
quarter turn to the right (clockwise) so that it is correctly
secured (9).
► Slide the ribbed hose onto the syphon base and into the
waste connection.
–
C
L
I
C
K
!
–
ca. 6 cm
6
7
8
3/4
9
10
NOTE
► To assist the replacement of the syphon base and syphon cup
silicone lubricant is recommended on the following seals,
◉ Exhaust manifold O-ring seal
◉ Syphon base outer seal
◉ Syphon cup O-ring seal
