5.5. Ethernet Connection

5.5.1. Art-Net/sACN Protocol

Art-Net is a protocol that uses TCP/IP to transfer a large amount of DMX-512 data over an Ethernet network. Art-

Net 4 can support up to 32768 universes. Art-Net™ is designed by and copyright of Artistic Licence Holdings Ltd.

sACN (streaming Architecture for Control Networks), also known as ANSI E1.31, is a protocol developed by ESTA

(Entertainment Services and Technology Association) for sending DMX-512 data over IP networks. It supports up

to 63999 universes and uses multicasting.

5.5.2.

Network Cables

Standard twisted-pair Ethernet cables (CAT-5/CAT-5E/CAT-6) can be used to connect the device to a

computer or to a lighting controller that supports Art-Net or sACN.

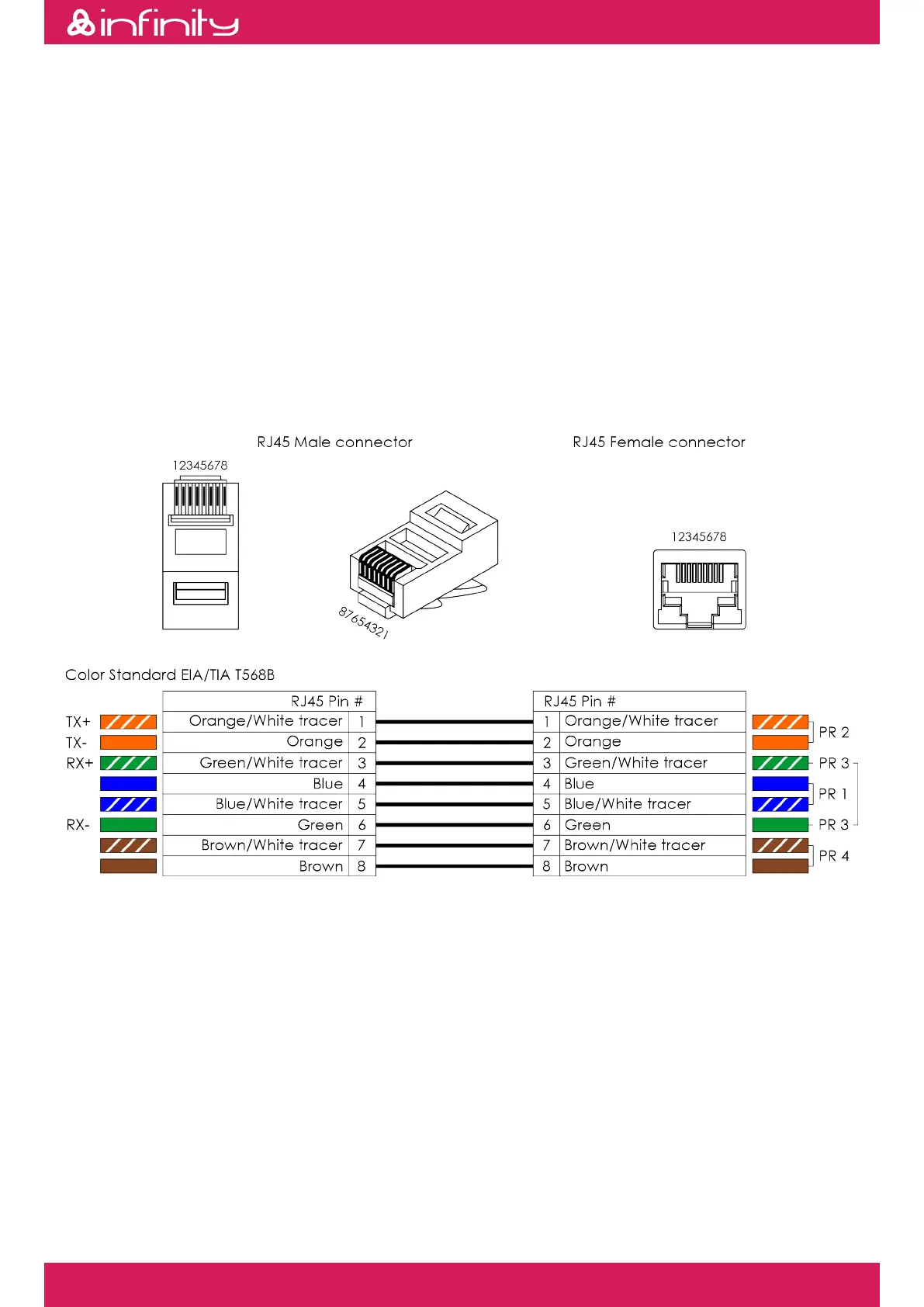

If you make your own network cables, make sure that you connect the pins and wires correctly. Use RJ45

(8P8C) connectors and patch the cables according to the T568B color standard.

Figure 13

Product code: 41440

Furion W402 WashBeam
