English

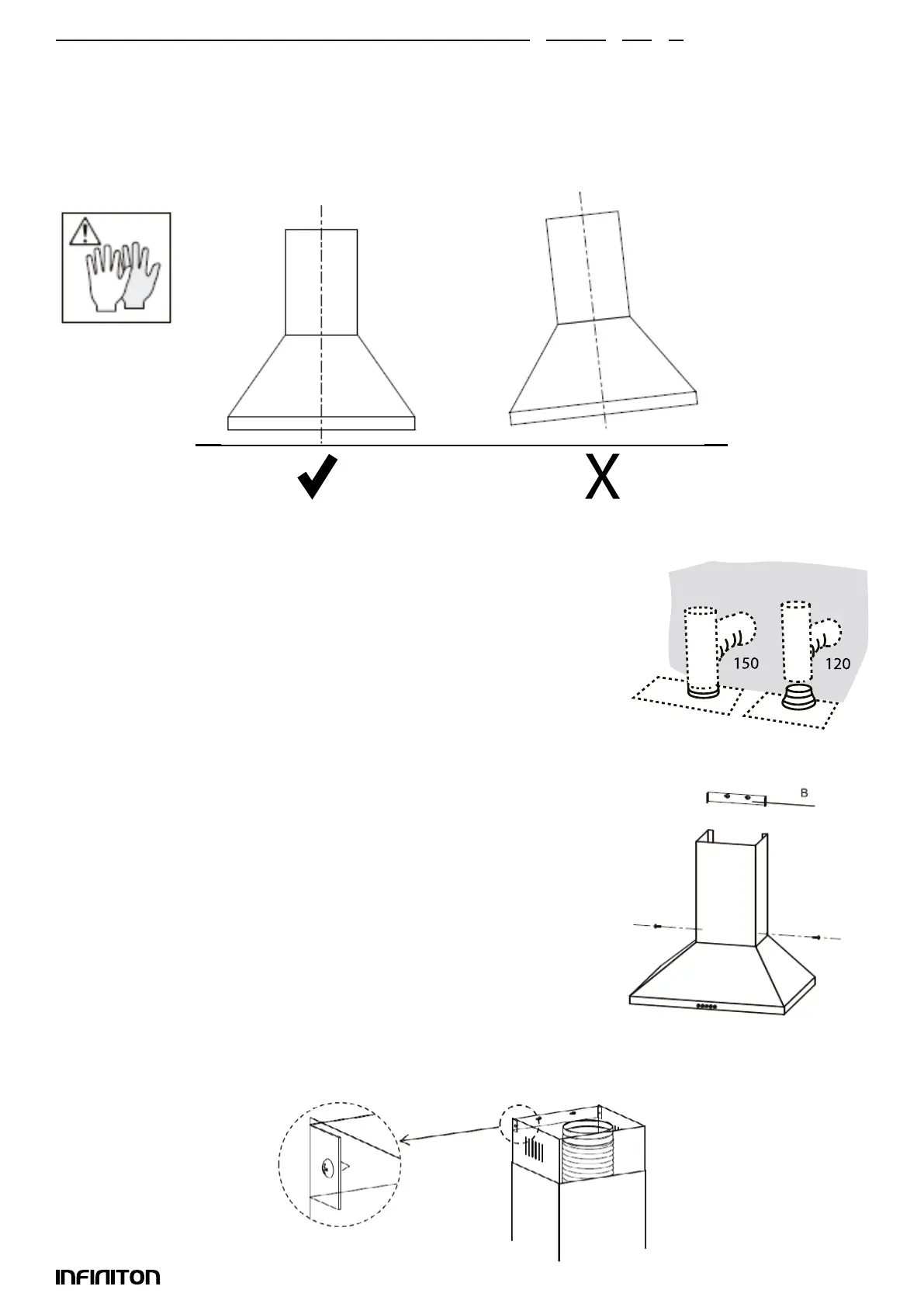

Installation
Check the safety status of the appliance:
How to x the body
Attach the bell body to the 2 screws 10(5x50) on the horizontal line A.
Level the hood body.
Remove the lter from inside the hood body, x the screws 10 to the plugs 11 at the points(3).
CONNECTIONS
FUME EXTRACTOR DEVICE ON SUCTION VERSION.
When installing the exhaust version, connect the hood to the air dis-
charge pipe using a 150 mm or 120 mm diameter rigid or exible pipe,
the choice of which is at the discretion of the installer.
To install a 120 mm diameter air discharge connection, insert the reduc-
tion clamp 3 into the air outlet.
Secure pipe 4 in position using suitable pipe clamps (not supplied).
Remove the charcoal lters.
How to x the chimney
Insert the upper decorative replace 2.2 into the lower decorative re-
place 2.1 and drag it towards the horizontal line B.
Connect the upper decorative chimney 2.2 and the chimney xing brac-
ket 21 with 2 screws 12.
The replace can only be installed with extractor hood.
Lower decorative chimney
Attach the lower decorative chimney to the hood body with 2 screws 12
84.2x9.5) supplied with the hood.
Upper decorative chimney
Fasten the upper chimney to the bracket 21 with 2 screws 12 (4.2x9.5) supplied with the hood.
ɸ
ɸ
