10

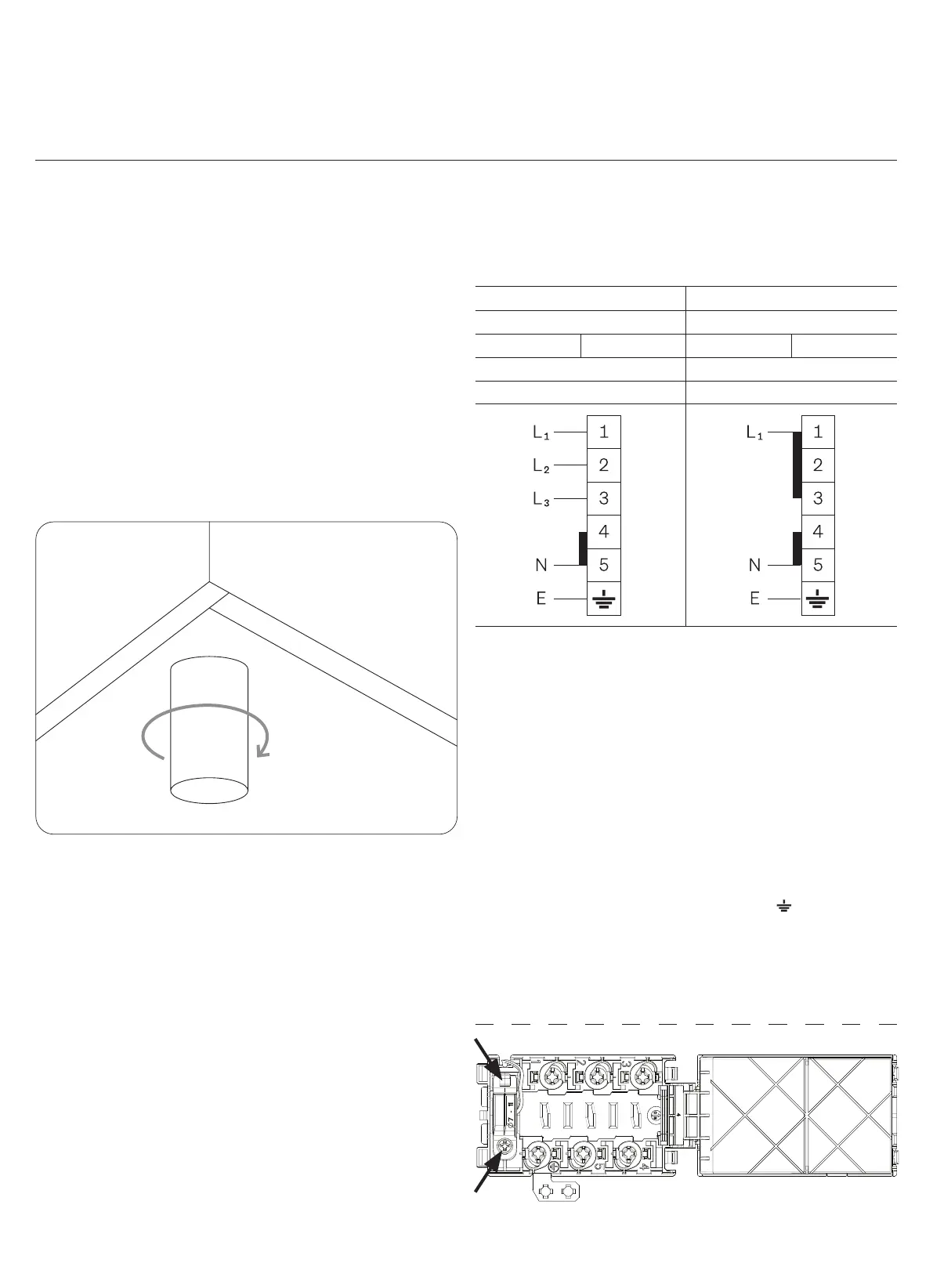

Positioning and Levelling
• When installing the appliance, ensure that there is
enough space in the desired location to be able to pull
the appliance forwards and backwards, as this
is necessary when undergoing cleaning and
maintenance.
• The ground underneath the appliance must be
flat and stable. The wall immediately behind the
appliance must be made from non-flammable
materials, such as tiles.
• To level the appliance, turn the adjustable feet
clockwise and anti-clockwise, carefully ensuring that
the surface of the appliance is level. This step may
only be undertaken once all other installation steps
have been completed.
Electrical Connection Safety
• This appliance must be earthed by law. Before
connecting the appliance to the electrical supply, it is
necessary to check that your home’s earthing system
is working correctly.
• Check that the unit and voltage power marked on
the appliance’s rating plate are compatible with the
supply. It is necessary that the feeding network is
protected by a powerful switch able to disconnect the
network completely, with a contact separation of at
least 3mm. Ensure that the yellow-green earth wire is
not interrupted by the switch.
• In order to avoid potential health hazards, any
electrical work performed on this appliance or
its associated wiring should only be done by an
authorised service technician or a similarly qualified
technician.
Mounting or Replacing the Power Cord
The mains cable is connected via the rear backboard.
The mains cable must be of the following type:
380–415V 3N~ 220–240V
H05RR–F H05RR–F
H05VV–F 5 × 2.5mm
2
H05VV–F 3 × 4mm
2
H05RN–F H05RN–F
H07RN–F H07RN–F
Leave the mains cable slightly long so that you can pull
out the appliance for cleaning purposes.
Proceed as follows:
1. Gently remove the rear backboard.
2. Undo the screw on the terminal block that fixes the
cable in place, taking care not to lose the screw.
3. Loosen the screw contacts and replace the cable with
a new one of the same length. Note that the cable
must comply with the stipulated specifications.
4. Connect the yellow-green wire to the terminal.
Note that the yellow-green wire must be at least
10mm longer than the other wires.
5. Connect the blue neutral wire to the N terminal.
6. Connect the brown power wire to the L terminal.
Installation Instructions (Continued)
