INSTALLATION
Instructions of cabinet and refrigerator
Dado del
perno di regolazione
Chiave per
dadi esagonali
Box xing frame
Cover of box xing frame

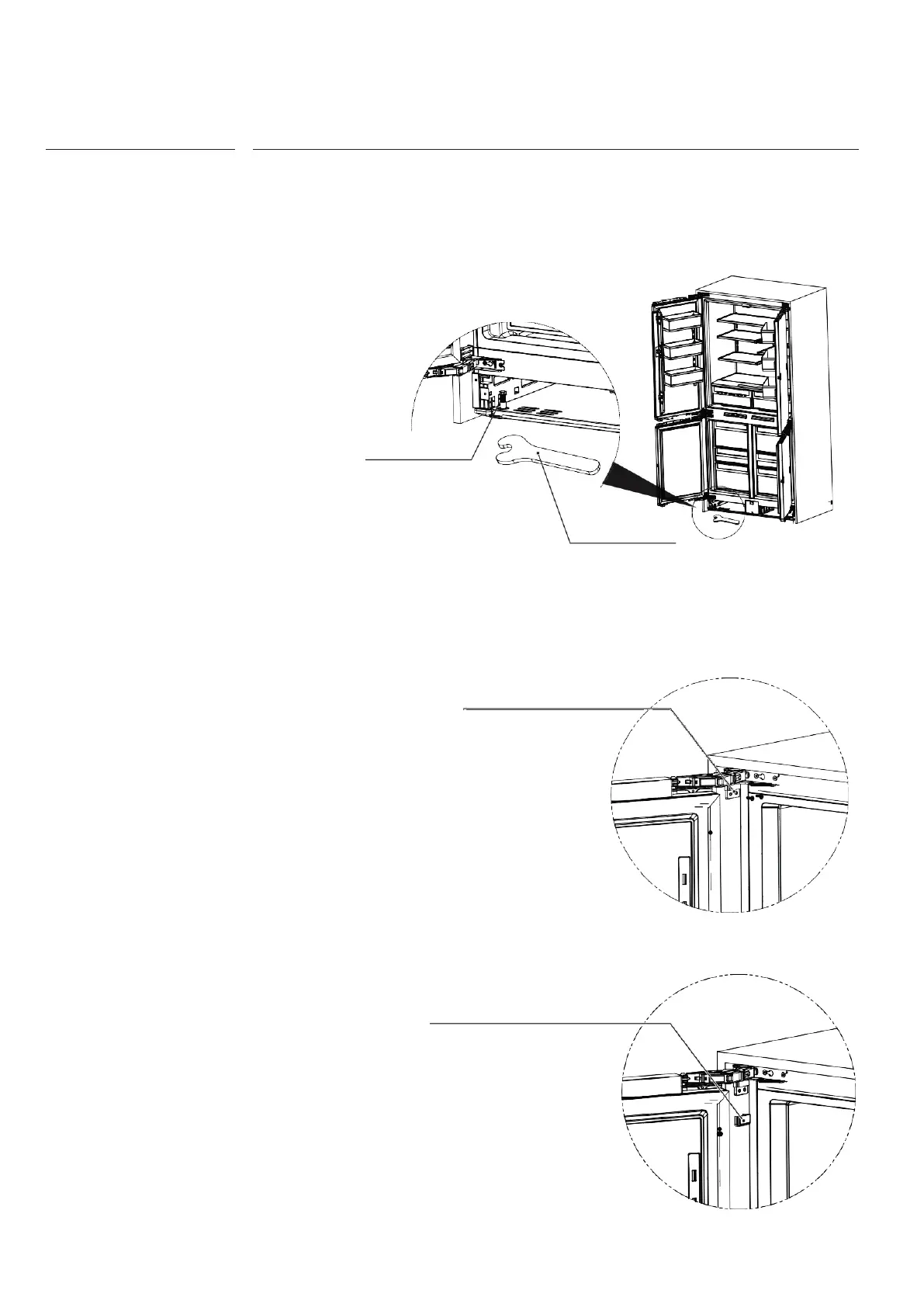

(Fig.3)
(Fig.4)
(Fig.5)
5. Open the Product’s door, take down the limit guide piece of one hinge, and install the box
xing frame with two self-tapping screws. Replace the limit guide pieces of other hinges
one by one (refer to Fig. 4).
6. Install the cover of box xing frame aer it is xed. (Refer to Fig. 5).
Rotate the nuts on adjustment pin with a hexagon nut wrench clockwise to upli the front
part of the Product, or rotate the nuts anticlockwise to lower the front part. Adjustment is
done when both upper and lower limit guide pieces are tted with the cabinet surface
(Refer to Fig. 3).
