INSTRUCTIONS FOR USE
Product features
Cabinet requirements:
The le and right cabinet door has the same dimensions, with width of B; the height is determined by the cabinet;
(2) The door plate and cabinet are provided with full lapping;
(3) The skirt line height is within 80-120mm; otherwise, it may aect the Product’s cooling;
(4) The hole for power cable and water pipe can be drilled at single side or both sides based on the actual conditions;
(5) The power socket should be located in the adjacent cabinet;
Refrigerator door plate
thickness A (mm)
Soacing X (mm)
Ref: door plate thickness B (mm)
Full lap 1 Full lap 2
16 - 20 4 496 494
21 - 22 6 494 492
For example, the design clearance should be 4 mmwhen the thickness of external door plate is 20 mm. The width of
cabinet door plate is 496 mm in full lap mode 1, or 494 mm in full lap mode 2.

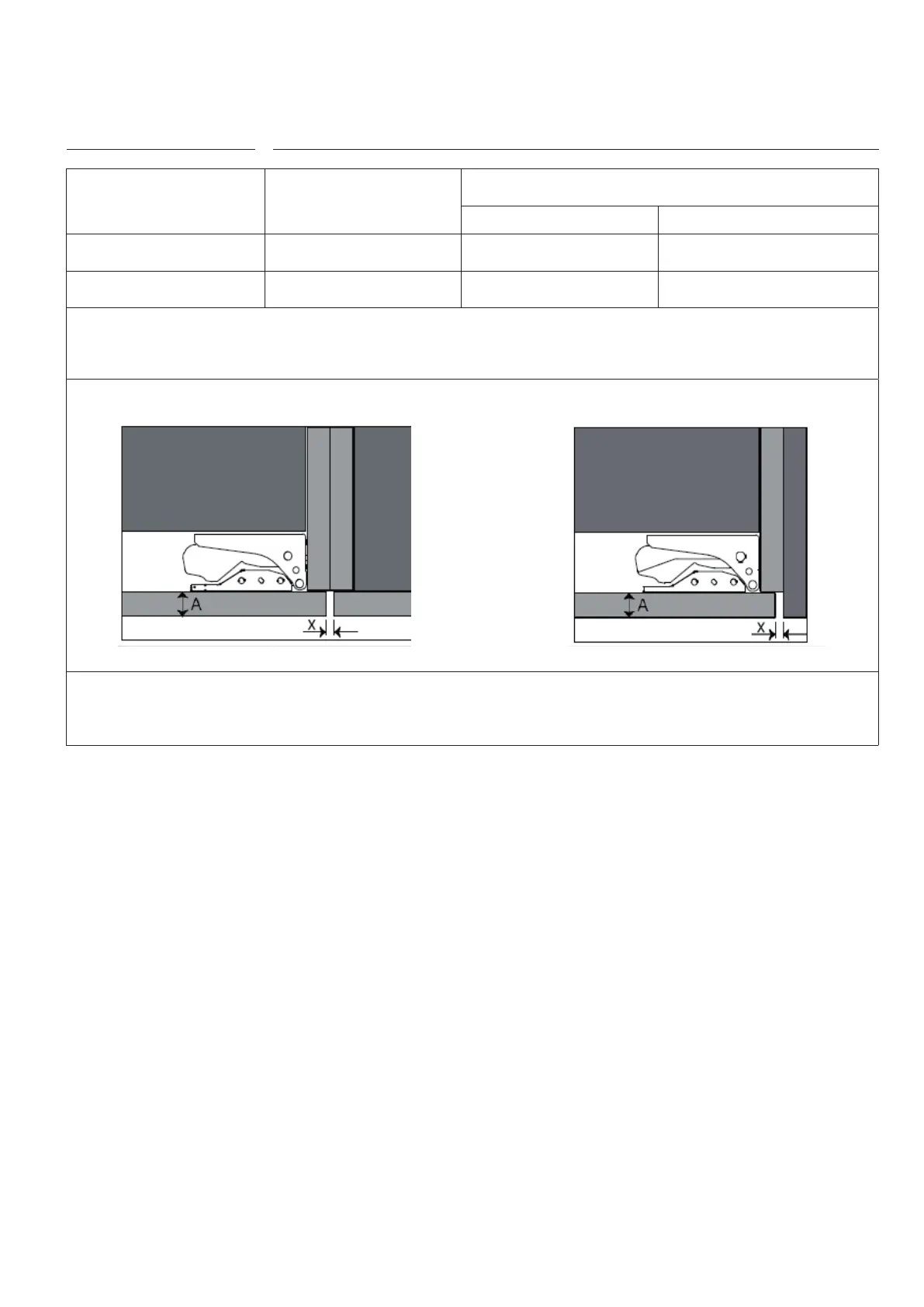

Full lap 1 Full lap 2
A = Tickness of refrigerator cabinet door plate
B = Tickness of refrigerator cabinet door plate
X = Clearance
