28
FUME EXHAUST CONNECTION
DUCTING/SUCTION VERSION
This type of hood is equipped with a top air outlet for
discharge of fumes outside the house, which has to be
connected with the inlet of the building chimney, com-
monly through a hose (not provided).
Horizontal tube sections must be slightly tilted upwards,
to help channelling of the air to the outside. Fume di-
scharge tubes crossing particularly cold environments
(e.g. attics) should be insulated, to prevent condensation
caused by temperature differences.
Suction type hoods DO NOT require carbon lters, which,
on the contrary, can limit their performance.
Any changes to the tube, sudden diameter reductions,
and bends, may prevent the hood from reaching opti-
mum suction capabilities, and may jeopardise the ope-
ration of the motor, relieving the Manufacturer from all
responsibility.
Make sure that the ue is in perfect working order, and
that a square (concrete) or round (metal) static wind
break ventilation tower with useful output section not less
than double the diameter of the ue (UNI 7129) is instal-
led at the top of the ue itself.
Comply with all air discharge regulations.
The drain chimney of the building should be
dedicated to the hood only, so under no circu-
mstances it should be shared with other devices,
such as bathroom extractors, air-conditioning units, re-
places, wood or gas stoves.
FILTERING/AIR RECYCLE VERSION
In order to prevent both the ow of unclean air in the
room and any damage to the fan blower, once satu-
rated, the carbon lters should be promptly replaced.
Once the carbon lters are saturated, they should be re-
placed as soon as possible, to prevent both the ow of
unclean air and damages to the blower fan.

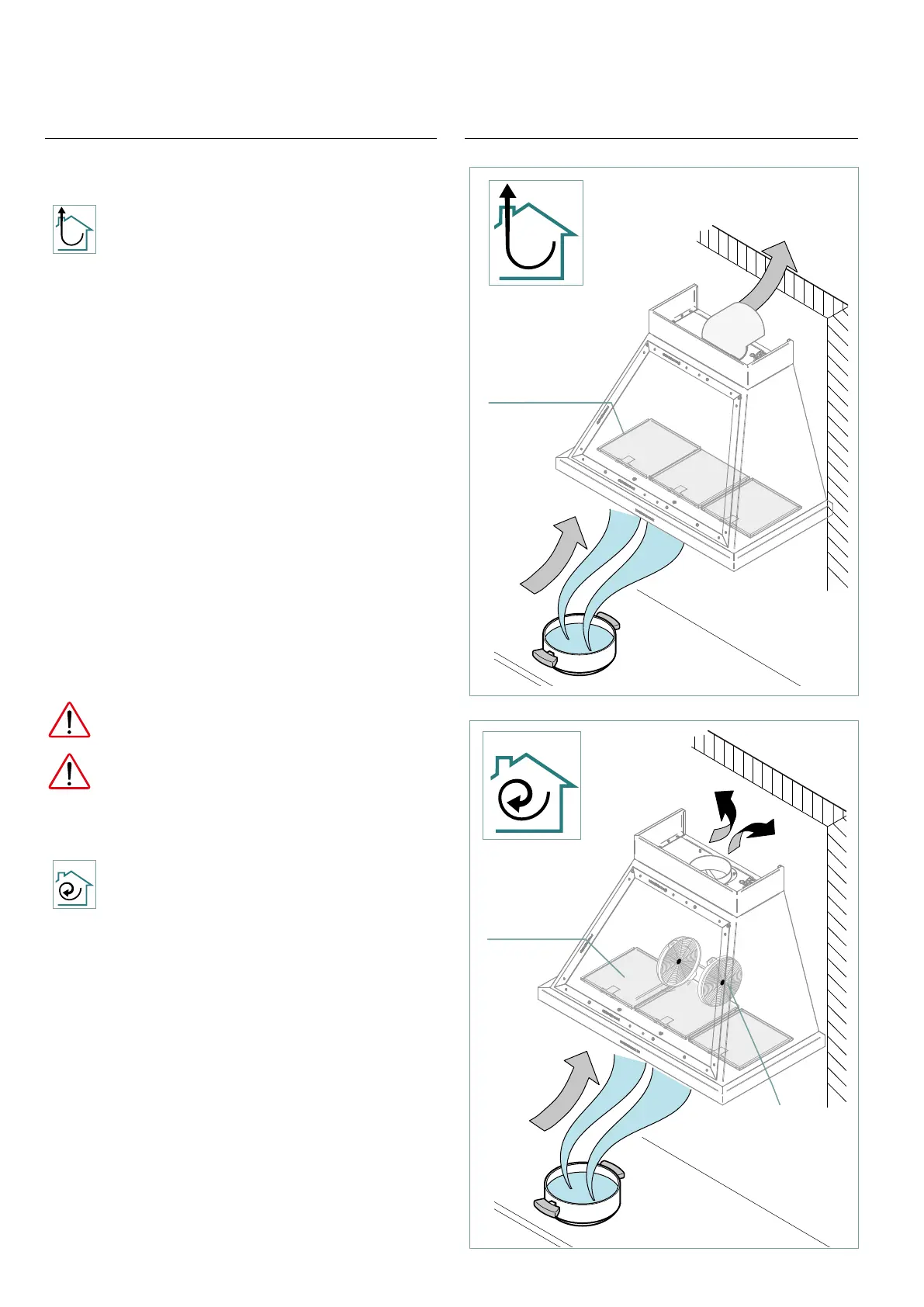

INSTALLATION
external
evacuation
hood
internal
air recirculation
hood
metal lters
metal lters
active
carbon
lter
fumes and
steam
fumes and
steam
Fig. 1
Fig. 2
