NOTE:Whenmountingthe
microwave oven, thread power
cord through hole in bottom of top
cabinet. Keep it tight throughout
Steps1-3.Donotpinchcordor
lift oven by pulling cord.

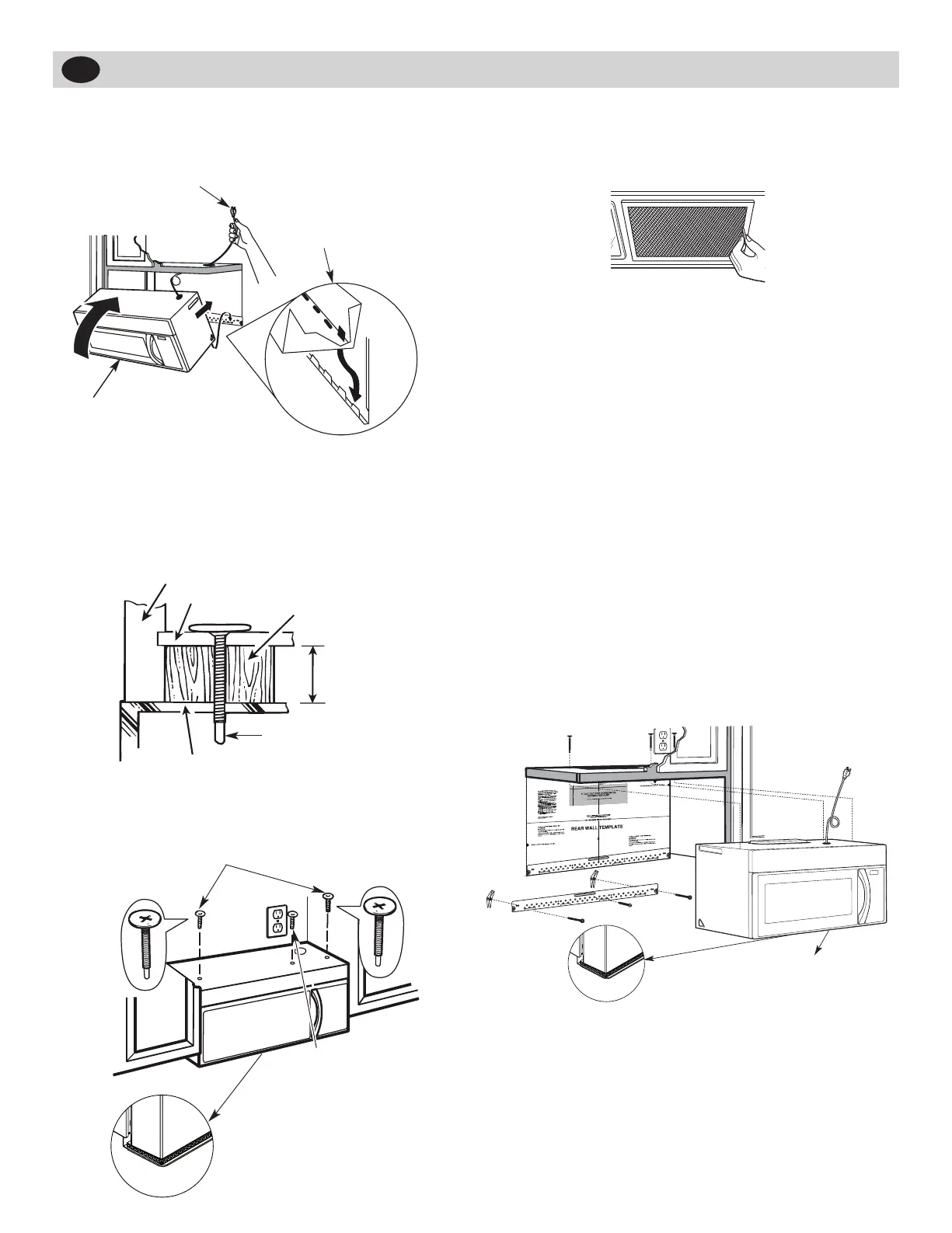

1.
Lift microwave, tilt it
forward, and hook slots
at back bottom edge
onto four lower tabs of
mounting plate.
2. Rotate front of oven up
against cabinet bottom.
3.Insertaself-aligningscrewthroughtopcentercabinet
hole. Temporarily secure the oven by turning the screw
at least two full turns after the threads have engaged.
(It will be completely tightened later.) Be sure to keep
power cord tight. Be careful not to pinch the cord,
especially when mounting ush to bottom of cabi-
net.
Cabinet Front
Cabinet Bottom Shelf
Self-Aligning
Screw
Microwave Oven Top
Equivalent to
Depth of Cab-
inet Recess
4. Attach the microwave oven to the top cabinet.
5.Insert2self-aligningscrews
through outer top cabinet
holes. Turn two full turns on
each screw.
6.
Tighten center
screw completely.
7. Tighten the outer two screws to the top of the micro-
waveoven.(Whiletighteningscrews,holdthemicro-
wave oven in place against the wall and the top cabi-
net.)
packed with the microwave.
tween heat shield and door.
C OUTSIDE TOP EXHAUST (Vertical Duct)
INSTALLATION OVERVIEW
C1.AttachMountingPlatetoWall
C2. Prepare Top Cabinet
C3. Adapting Microwave Blower for Outside Top Exhaust
C4. Check Damper Operation
C5. Mount Microwave Oven
C6. Adjust Exhaust Adaptor
C7. Connect Ductwork
IMPORTANT NOTES:
• Makesurethescrewsfortheblowermotorandblower
plate are securely tightened when they are reinstalled.
This will help to prevent excessive vibration.
• Makesurethemotorwiringhasbeenproperlyrouted
and secured, and that the wires are not pinched.
IMPORTANT: Do not remove
the cardboard spacers be-
tween the heat shield and
door.
EN
8.Installgreaselters.Seethe
Advice & Instructions
Filler Piece
17
IMPORTANT: Remove the cardboard spacers be-
