4.

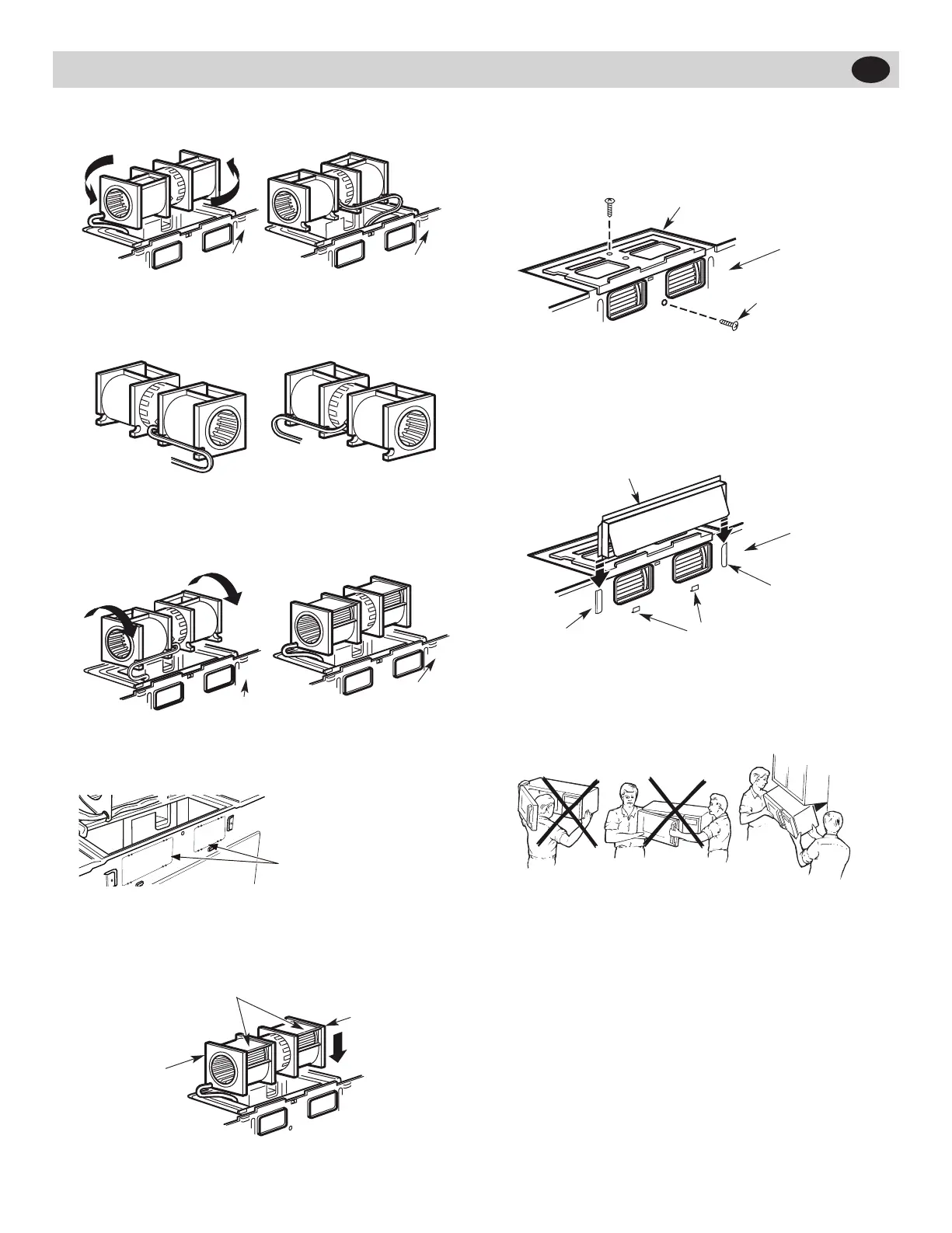

Rotate blower unit counterclockwise 180°.
Before Rotation After Rotation
Back of
Microwave
Back of
Microwave
5. Gently remove the wires from the grooves. Reroute the
wires through grooves on other side of the blower unit.
Before Rerouting
WiresRoutedThroughRightSide WiresRoutedThroughLeftSide
After Rerouting
6. Roll the blower unit 90° so that fan blade openings are
facing out the back of the microwave.
Before Rolling
Back of
Microwave
Back of
Microwave
After Rolling
7. Remove the knockout plates in the back of the unit with
snips. (For some models)
Knockout Plates:
Snip all 4 webs on each
knockout panel and remove
the metal knockouts for rear
airow.
Please take care to remove
any sharp edges created
from removing the knockout
plates.
Back of mircrowave
8. Place the blower unit back into the opening.
Before Rolling
Openings Facing
Back
End A
End B
CAUTION: Do not pull or stretch the blower unit wiring.
Make sure the wires are not pinched, and that they are
properly secured.
NOTE: The blower unit exhaust openings should match
exhaust openings on rear of microwave oven.
9.
Secure the blower unit to the microwave with the origi-
nal screw.
Blower Plate
Back of
Microwave
Blower Motor
Screw
10. Replace the blower plate in the same position as be-
fore with the screw. Make sure the screw is tight.
11.
Attach the exhaust adaptor to the rear of the oven by
sliding it into the guides at the top center of the back
of the oven.
Adaptor
Back of
Microwave
Guide
Locking Tabs
Guide
Push in securely until it is in the lower locking tabs. Take
care to assure that the damper hinge is installed so that it
is at the top and that the damper swings freely.
B6. MOUNT THE MICROWAVE OVEN
FOREASIERINSTALLATIONANDPERSONALSAFETY,WE
RECOMMENDTHATTWOPEOPLEINSTALLTHISMICRO-
WAVEOVEN.IMPORTANT:Donotgriporusethehandle
or heat shield during installation. Do not remove the card-
board spacers between the heat shield and door.
NOTE: If your cabinet is metal, use the nylon grommet
around the power cord hole to prevent cutting of the cord.
NOTE:Werecommendusingllerblocksifthecabinet
front hangs below the cabinet bottom shelf.
IMPORTANT:Ifllerblocksarenotused,casedamage
may occur from overtightening screws.
EN
16
