9 Plug and connection assignment
This chapter will help you select the right cables and plugs to connect your valuable
equipment so that a perfect light experience is guaranteed.
Please take our tips, because especially in ‘Sound & Light’ caution is indicated: Even if
a plug ts into a socket, the result of an incorrect connection may be a destroyed
DMX controller, a short circuit or ‘just’ a not working light show!
A ve-pin XLR socket serves as DMX output, a ve-pin XLR plug serves as DMX input.

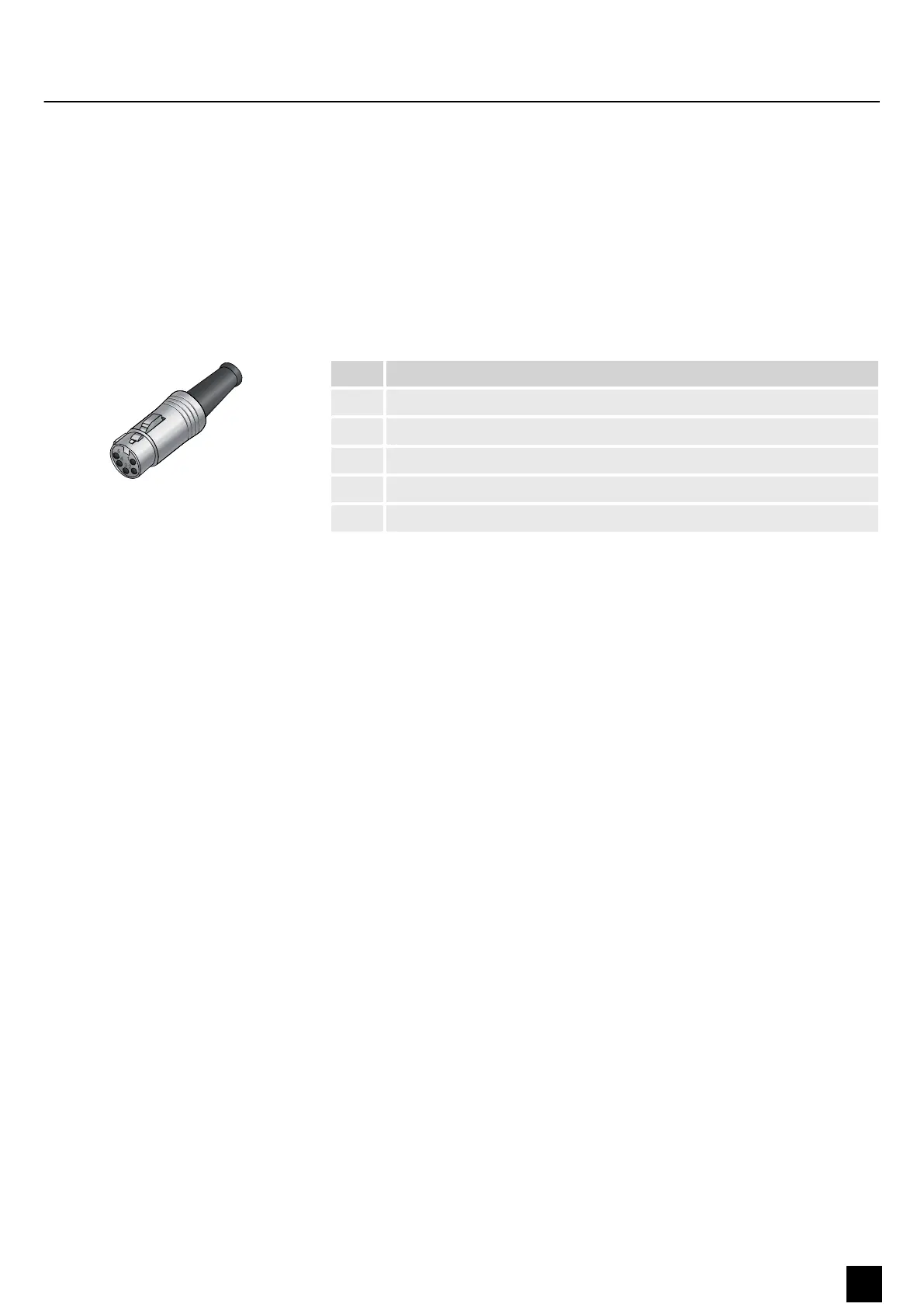

The drawing below and the table show the pin assignment of a matching coupling.
Pin Assignment
1 Ground (shielding)
2 Signal inverted (DMX–, ‘cold’)
3 Signal (DMX+, ‘hot’)
4 unused / second connection (DMX–)
5 unused / second connection (DMX+)
