Ultrasonic flow meter SU2x5x SU6x5x SU7x5x SU8x5x SU9x5x
29
4. Reset via overflow (maximum display range is reached).
Totaliser Vol.L cannot be reset.
Setting options:
[Totaliser X reset]; [rTox]; [ou2] = [In.D] and [DIn2]
9.3.11 Counting method of the totalisers
The totalisers Vol.1 and Vol.2 take account of the flow direction when totalising the consumed
quantity. The following counting methods can be defined via the parameter [FProx]:
[FProx] Counting method
0+ Negative volumetric flow values (against the marked flow direction) are not taken into account for
totalling.
-0 Positive volumetric flow values (corresponding to the marked flow direction) are not taken into ac-
count for totalling.
-+ Negative flow values are subtracted from the consumed quantity.
++ All volumetric flow values are totalled irrespective of the volumetric flow direction.
Tab.1: Counting method of the totalisers
The counting method of Vol.L cannot be set. The lifetime totaliser totals all volumetric flow quantities
irrespective of the flow direction.
+ Q
0
– Q
t
Q
V
FPro1 / FPro2 = – +
0
+ Q
– Q
t
Q
V
FPro1 / FPro2 = 0 +
0
+ Q
– Q
t
Q
V
FPro1 / FPro2 = + +
0
+ Q
– Q
t
Q
V
FPro1 / FPro2 = – 0
1 2

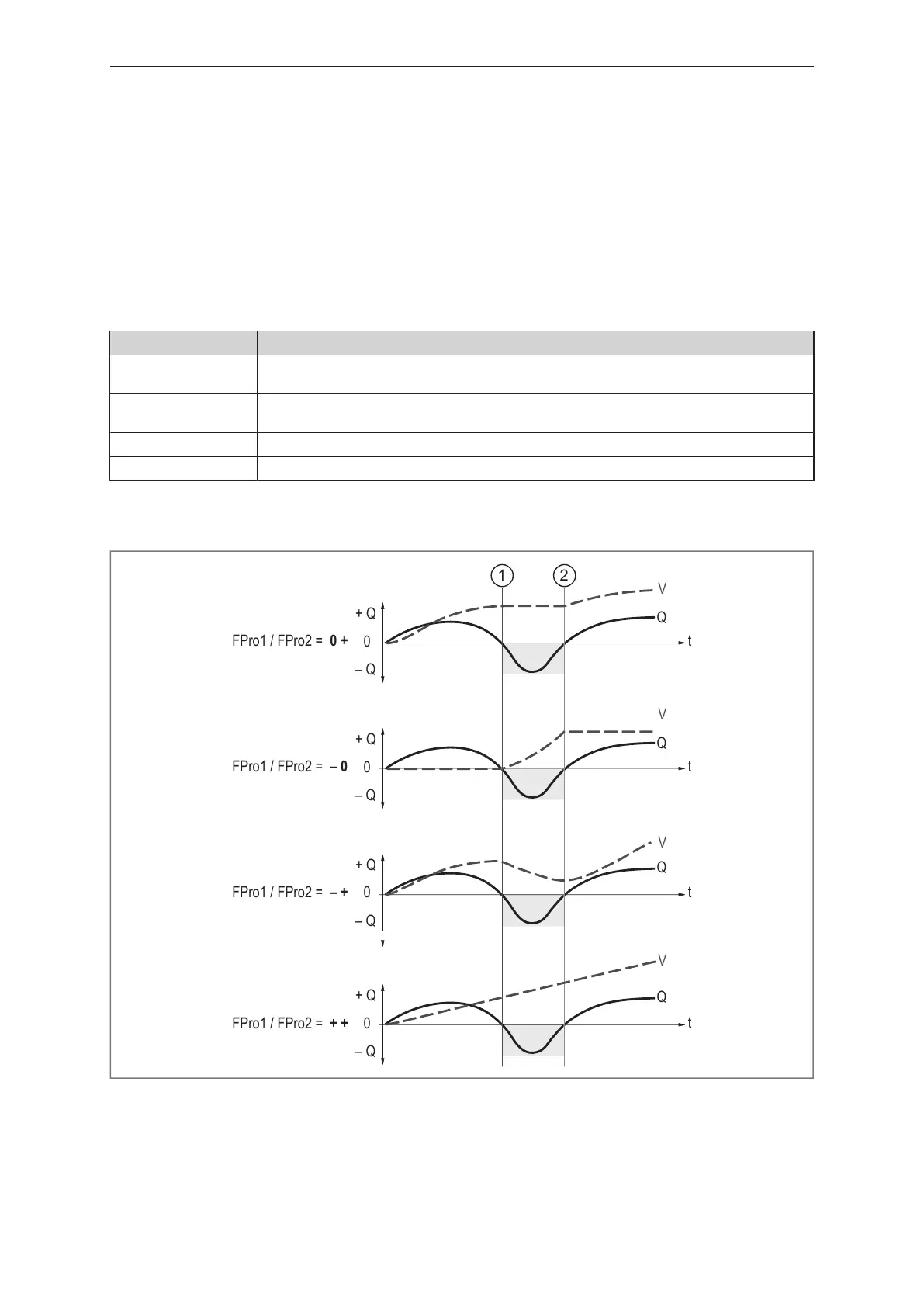

Fig.15: taking account of the volumetric flow direction when totalling the consumed quantity
+Q: volumetric flow quantity in positive direction
-Q: volumetric flow quantity in negative direction
V: volumetric flow quantity absolute (= sum of negative and positive volumetric flow)
1: volumetric flow changes to negative direction
2: volumetric flow changes to positive direction
When the direction of flow is changed, the minimum flow quantity [LFC] is taken into account.
