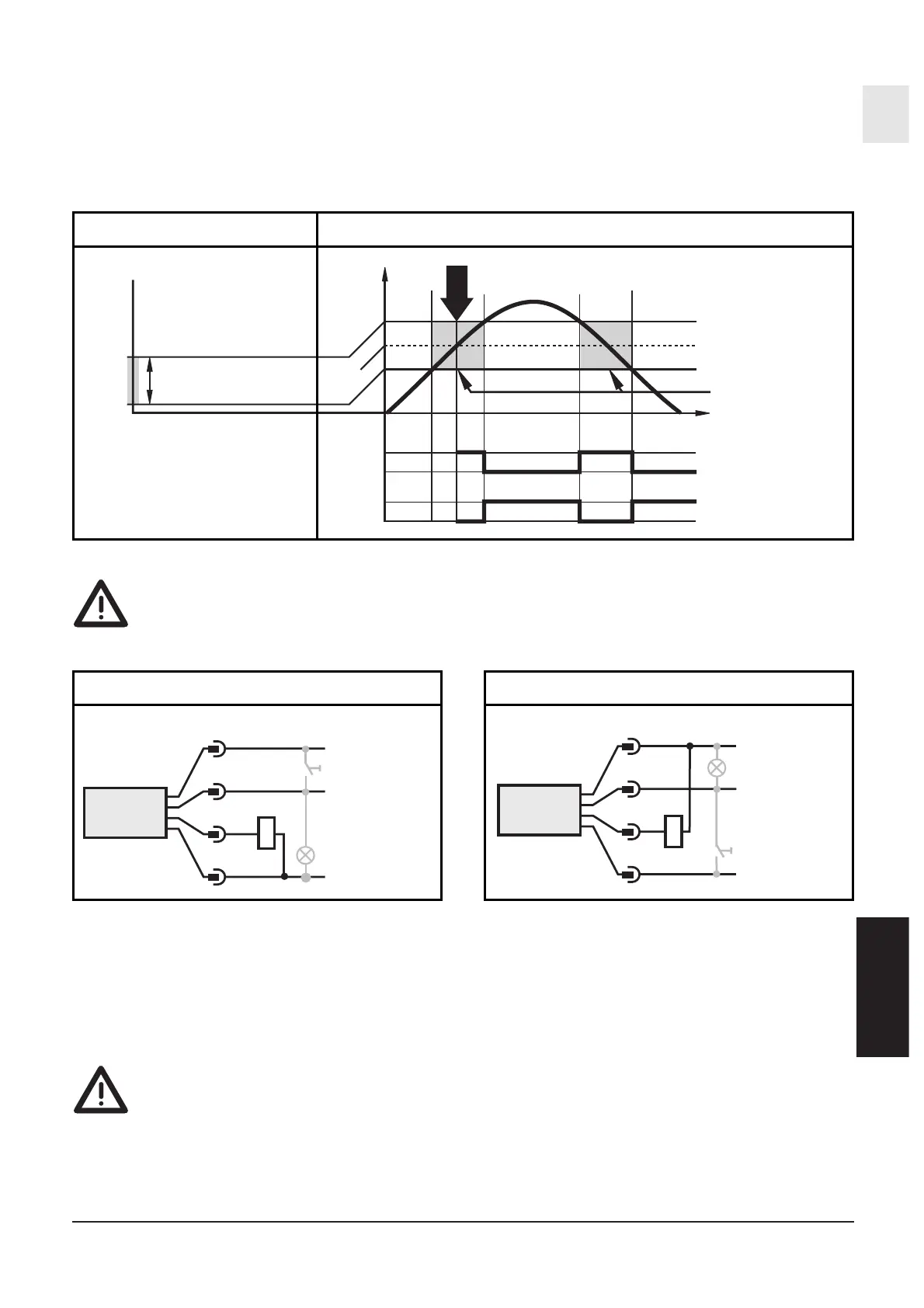

When working with the window function (Fno or Fnc) set the width
of the window by the difference between SP1 and rP1.
During the teach operation the window is set so that the current
system pressure (P
sys
) is in the middle of the window.
Observe the instructions for installation and electrical connec-
tion (page 21).
Connect the unit according to the configuration:
After mounting, wiring and setting check whether the unit
operates correctly.
Explanation of the teach operation → page 22.
Explanation of the hysteresis and window functions → page 32.
27
ENGLISH
5
t
P
P
sys
1
0
1
0
SP
rP
HY
set the window teach operation
Fno
teach instant
acceptable
range
Fnc
L-
L
+
OUT
IN (Teach)
3
2
4
1
BU
BK
WH
BN
1 x p-switching / 1 x IN (Teach)
L-
L
+
OUT
IN (Teach)
3
2
4
1
BU
BK
WH
BN
1 x n-switching / 1 x IN (Teach)
Teach signal and acknowledgement signal with pnp operation = +U
B
Teach signal and acknowledgement signal with npn operation = -U
B
Core colours of ifm sockets:
1 = BN (brown), 2 = WH (white), 3 = BU (blue), 4 = BK (black)
