PG17xx Electronic manometer
36 © ifm electronic gmbh 11601190 / 01 07 / 2025
If the process data value leaves the window area, the status of the switching signal channel changes when
the switch point plus hysteresis (SP1+H or SP2-H) is exceeded/not reached.
SP2 SP1
(TP2) (TP1)
lowlow
high
PDV
0 0
1
H
H

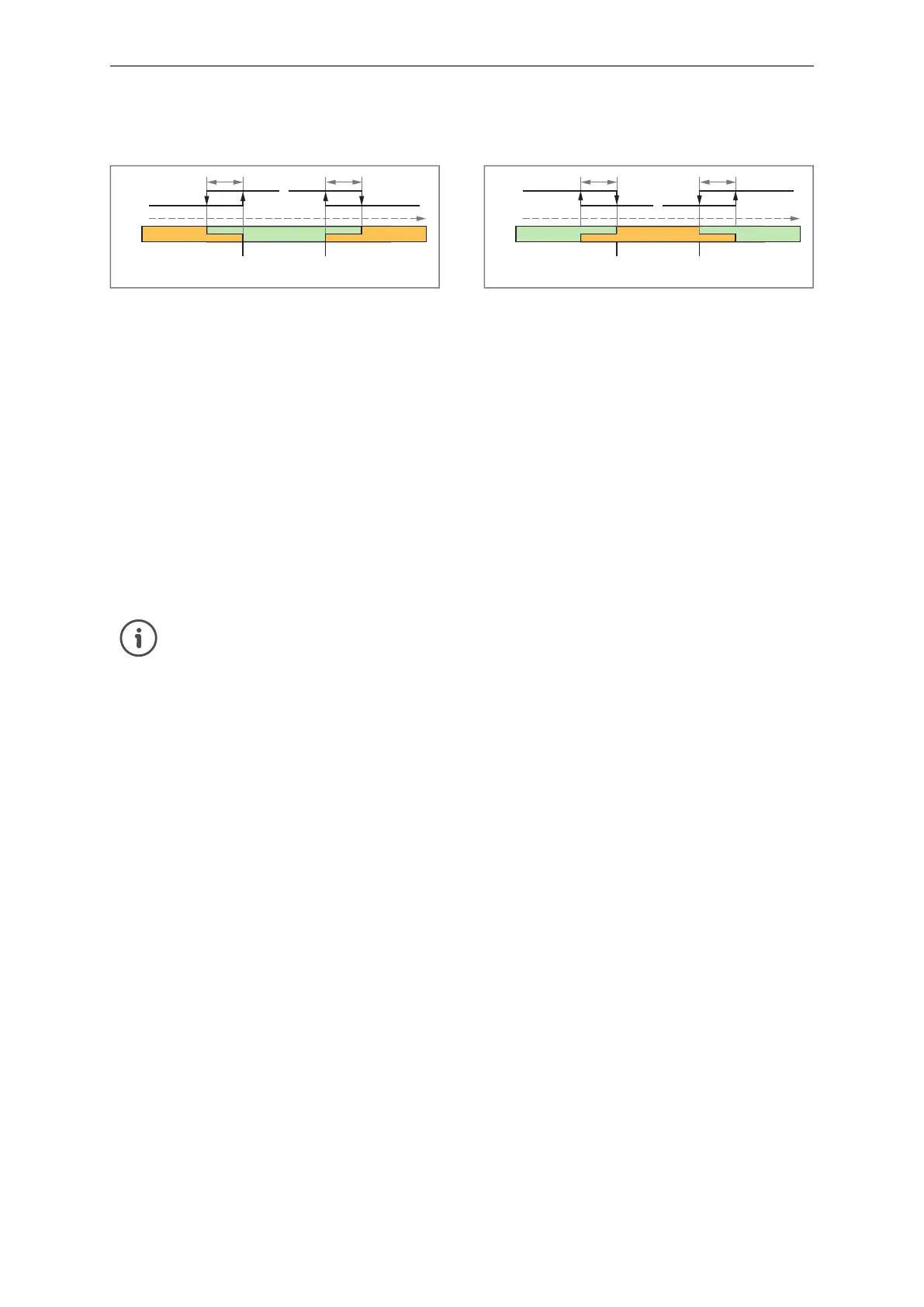

Fig.18: Window Mode / High active
H: Hysteresis
SP1: Switch point 1
SP2: Switch point 2
TP1: Teach point 1 (= SP1)
TP2: Teach point 2 (= SP2)
SP2 SP1
(TP2) (TP1)
low
highhigh
PDV
0
1 1
H
H
Fig.19: Window Mode / Low active
H: Hysteresis
SP1: Switch point 1
SP2: Switch point 2
TP1: Teach point 1 (= SP1)
TP2: Teach point 2 (= SP2)
Note on the hysteresis
If the Auto setting is chosen for the hysteresis, the following value will be set for the hysteresis:
• Pressure measurement 0.25 % of the final value of the measuring range (MEW)
• Temperature measurement: 0.5 % of the final value of the measuring range (MEW)
11.3.1.1 Parameter setting via device keys: Switching signal
Switching signal channel SSC1.1 is set using the device keys. Further switching signal chan-
nels can be set via the IO-Link interface.
The standard unit of measurement is selected: EF > CFG > uni.P.
Switching channel SSC1.1 is selected for output 1: EF > OU1 > ou1 = SSC1.
Go to EF > OU1 to configure output OUT1.
Single point mode:
Select ModE and set the switch-point mode: 1-P.
Select SP1 and set switch point 1.
Select HYSt and set the hysteresis.
Two-point mode:
Select ModE and set the switch-point mode: 2-P.
Select SP1 and set switch point 1.
Select SP2 and set switch point 2.
Window mode:
Select ModE and set the switch-point mode: WInd.
Select SP1 and set switch point 1.
Select SP2 and set switch point 2.
Select HYSt and set the hysteresis.
