PG17xx Electronic manometer
46
0
-1
2
4
6
8
10
psi
psi
Output
Status
TEMPbar
60
40
20
0
80
100
120
140
bar
Enter
ss
0
-1
2
4
6
8
10
psi
psi
Output
Status
TEMPbar
60
40
20
0
80
100
120
140
bar
Enter
ss
1 2

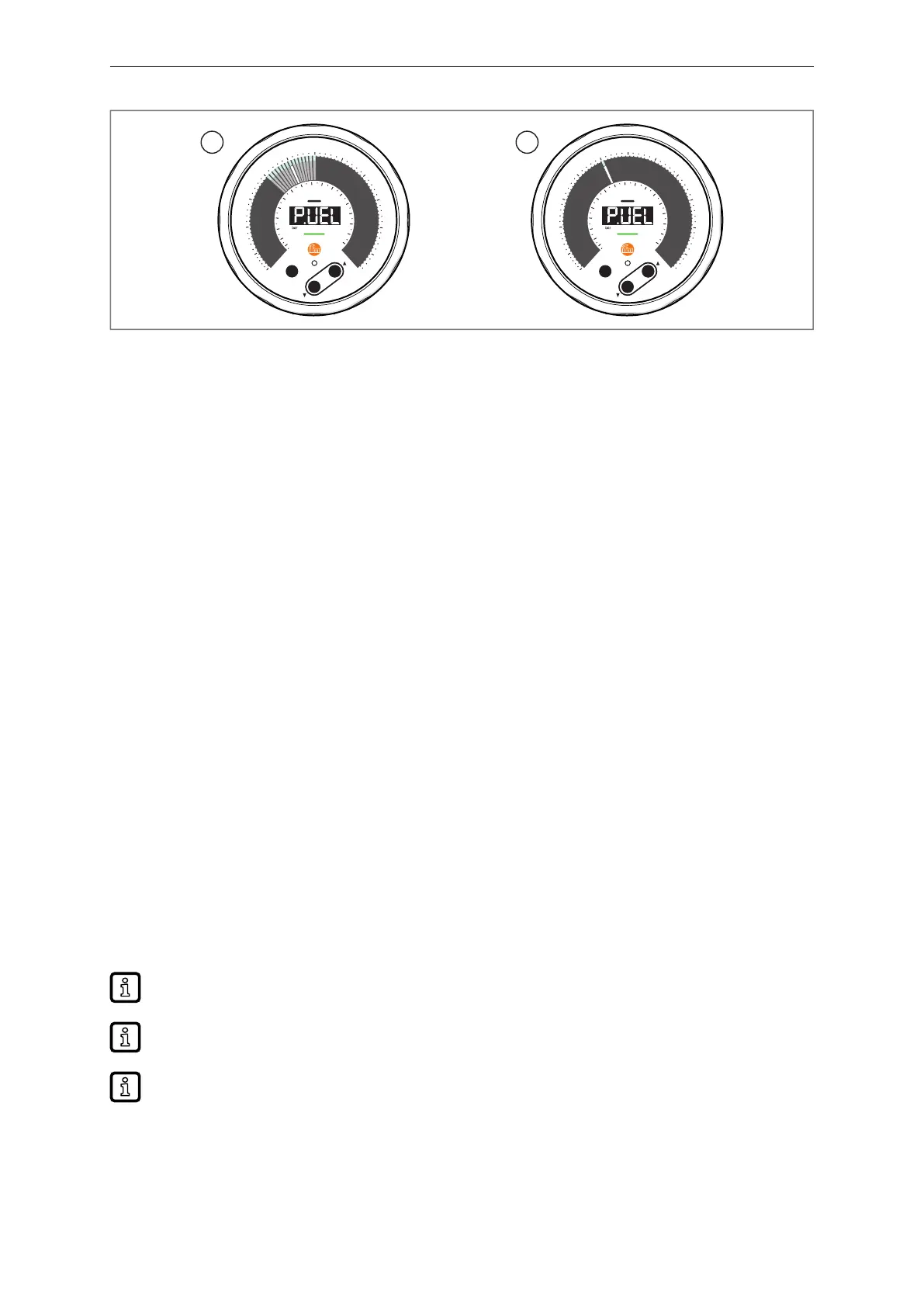

Fig.23: Dynamic LED pointer (example: display layout L3)
1: [P.VEL] = [HIGH]: The dynamic LED pointers are only activated when the main pointer is moving at high speed.
2: [P.VEL] = [OFF]: No dynamic LED pointers despite high process fluctuations. The main pointer indicates the current pro-
cess value with the highest possible accuracy.
Selectable values:
• [HIGH]: The dynamic LED pointer is only activated when the main pointer is moving at high speed.
• [MEd]: The dynamic LED pointer is activated at medium pointer speed.
• [LOW]: The dynamic LED pointer is activated at low pointer speed.
• [OFF]: The dynamic LED pointer is disabled.
10.5.7.1 Parameter setting via the device keys: Dynamic LED pointer
u Call up the menu [EF] > [DIS].
u Select [P.VEL] and set the dynamic LED pointer.
10.6 Diagnostic functions
10.6.1 Memory
The device stores the highest and lowest process value measured.
The current value can be read from the unit’s display or via the IO-Link interface.
Selectable values:
• [Lo.P]: minimum value memory for pressure
• [Hi.P]: maximum value memory for pressure
• [Lo.T]: Minimum value memory for temperature
• [Hi.T]: Maximum value memory for temperature
[Lo.T] and [Hi.T] can only be read and deleted via the IO-Link interface.
It makes sense to delete the memories as soon as the unit operates under normal operating
conditions for the first time.
The memory is independent of the lag indicator LEDs which indicate minimum and maximum
pressure values in the LED ring (Ò Display layout/42).
u If [Lo.P] or [Hi.P] is deleted, the lag indicator LEDs are also reset.
u If the lag indicator LEDs are reset, [Lo.P] and [Hi.P] are retained.
