LT39xx Electronic sensor for level and temperature
24
9.4 Getting started
For fast set-up, the example configurations described in the following can be used for most
applications. The indicated minimum distances apply exclusively to each separately described case.
9.4.1 Example configuration 1
Unit: LTx922 (probe length L= 264mm)
Medium to be detected: Mineral oil
Operating mode: Manual media selection with overflow prevention (factory setting)
Installation environment: Metal tank

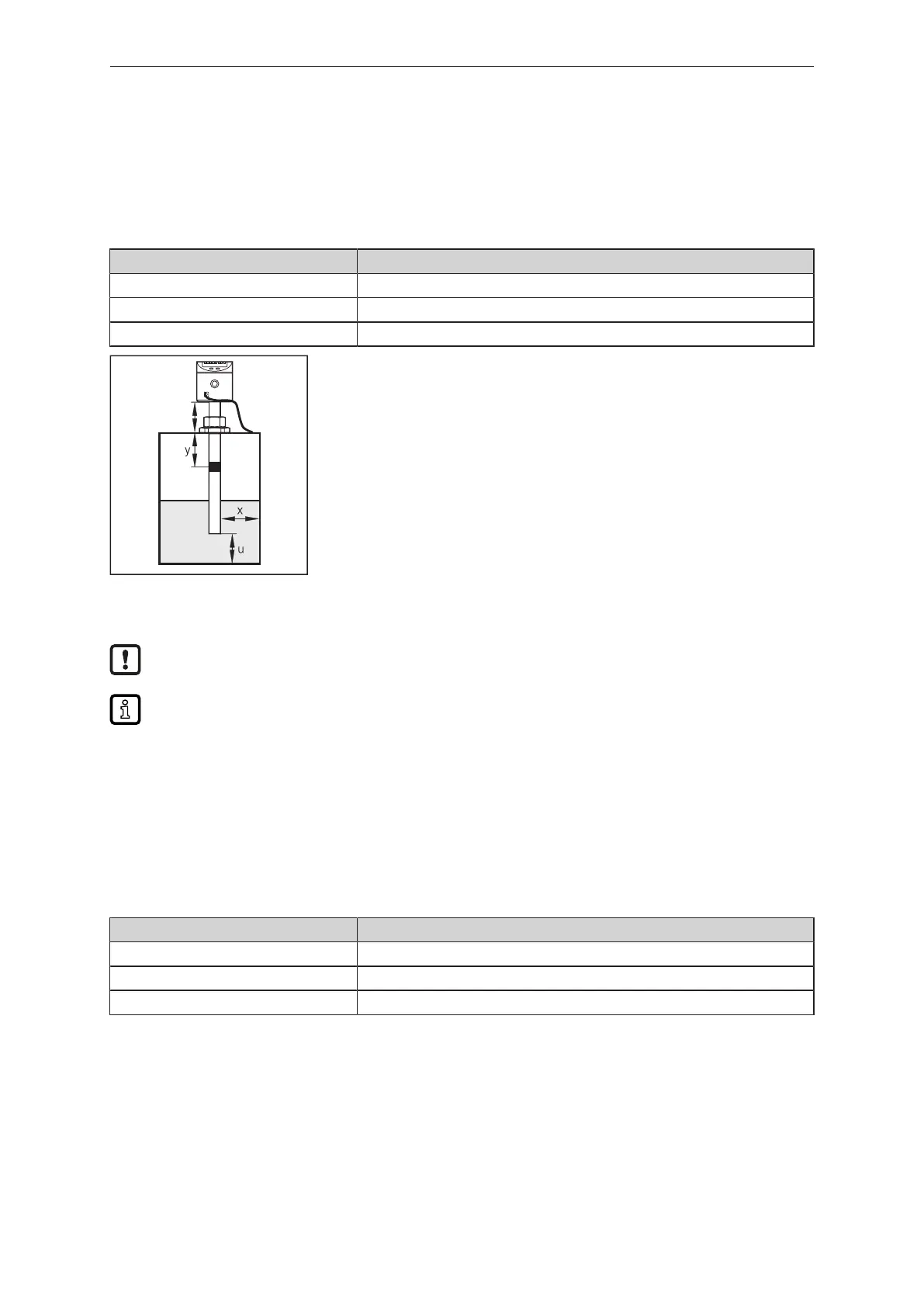

OP
c
x: min. 4.0cm
u: min. 1.0cm
c: max. 14.0cm
u Install unit.
u Observe the distances (x), (u) and (c):
u Ground sensor and tank via an electrical connection.
u Observe the parameter setting sequence:
• [MEdI] = [OIL.2]
• [OFS] = (u); e. g. (u)=2.0cm
• [OP] = Set the overflow prevention OP at a distance (y) greater
than 4.5 cm below the mounting element.
For distances (y) smaller than 4.5 cm there may be malfunctioning and error messages during
the adjustment process [cOP].
Step increment and setting range: Ò Setting values [OP]
Calculation aids for [OP]: Ò Calculation aids [OP]
u Adjust overflow prevention OP to [cOP].
w The unit is ready for operation.
u Make further settings if necessary.
u Check whether the unit operates correctly.
9.4.2 Example configuration 2
Unit: LTx923 (probe length L= 472mm)
Medium to be detected: Coolant emulsion
Operating mode: Automatic medium detection
Installation environment: Metal tank.
