Evaluation unit for monitoring and converting frequency signals DW3003
7
4
3
5
6
12345
IN1
OUT1 OUT2 OUT3 IO-Link
DW3003
1
2

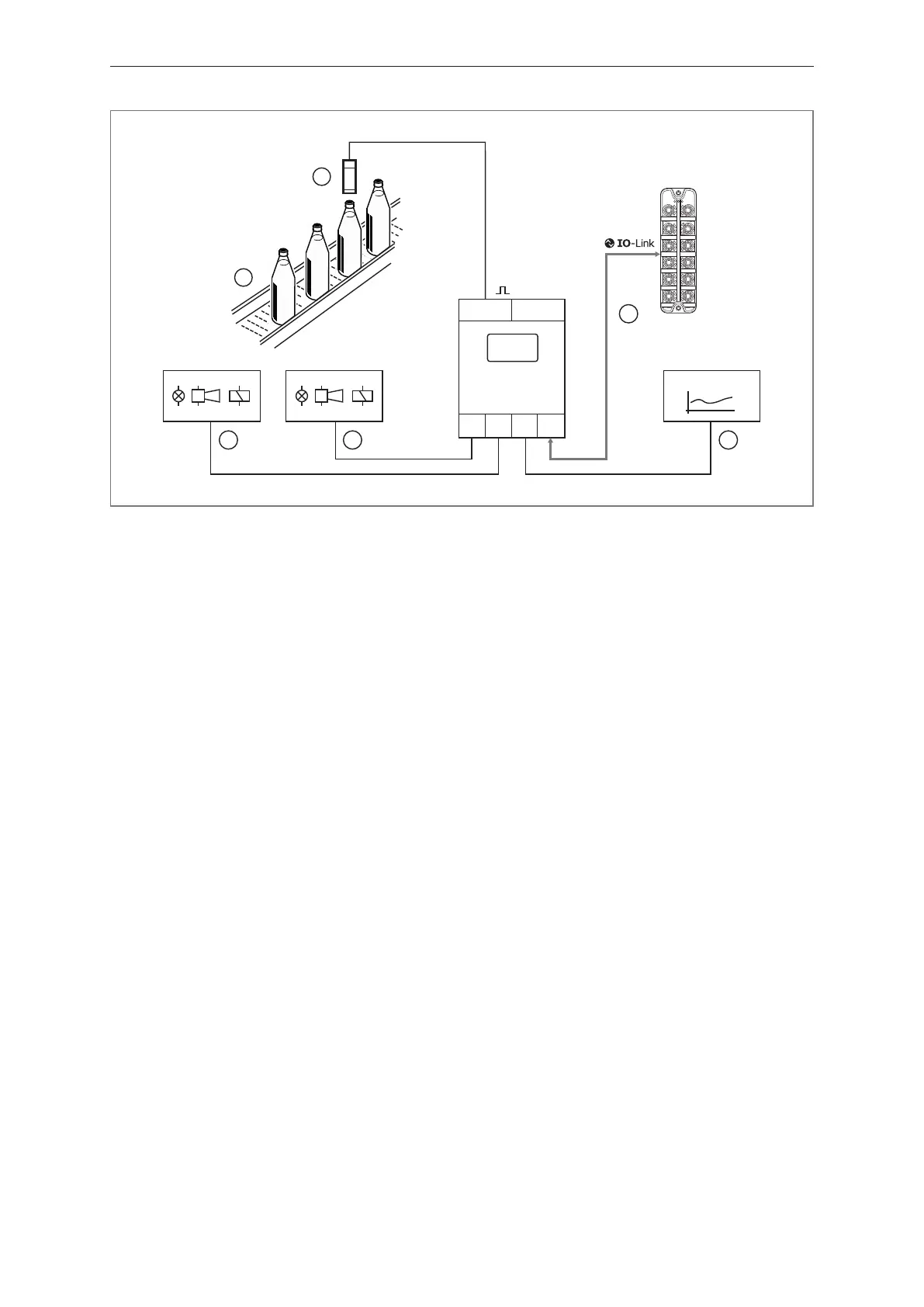

Fig.1: Detection of a quantity per time unit or conversion of the measured value into an analogue standard signal
1: Pulse pick-up
2: Conveyor belt
3: Switching output 2
4: Switching output 1
5: Analogue output, e.g. to indicate or record the number of bottles/time unit
6: IO-Link for digital transmission of measured values
Speed monitoring
Switching cams on a shaft are detected by a sensor. The device determines the rotational speed of
the shaft from the sensor’s switching signal. This rotational speed value is compared with the set
switch points. The outputs are switched in accordance with the set parameters.
The determined rotational speed is output via the analogue output and the IO-Link interface.
