AL4322 Remote I/O module 8DO 8DI
22

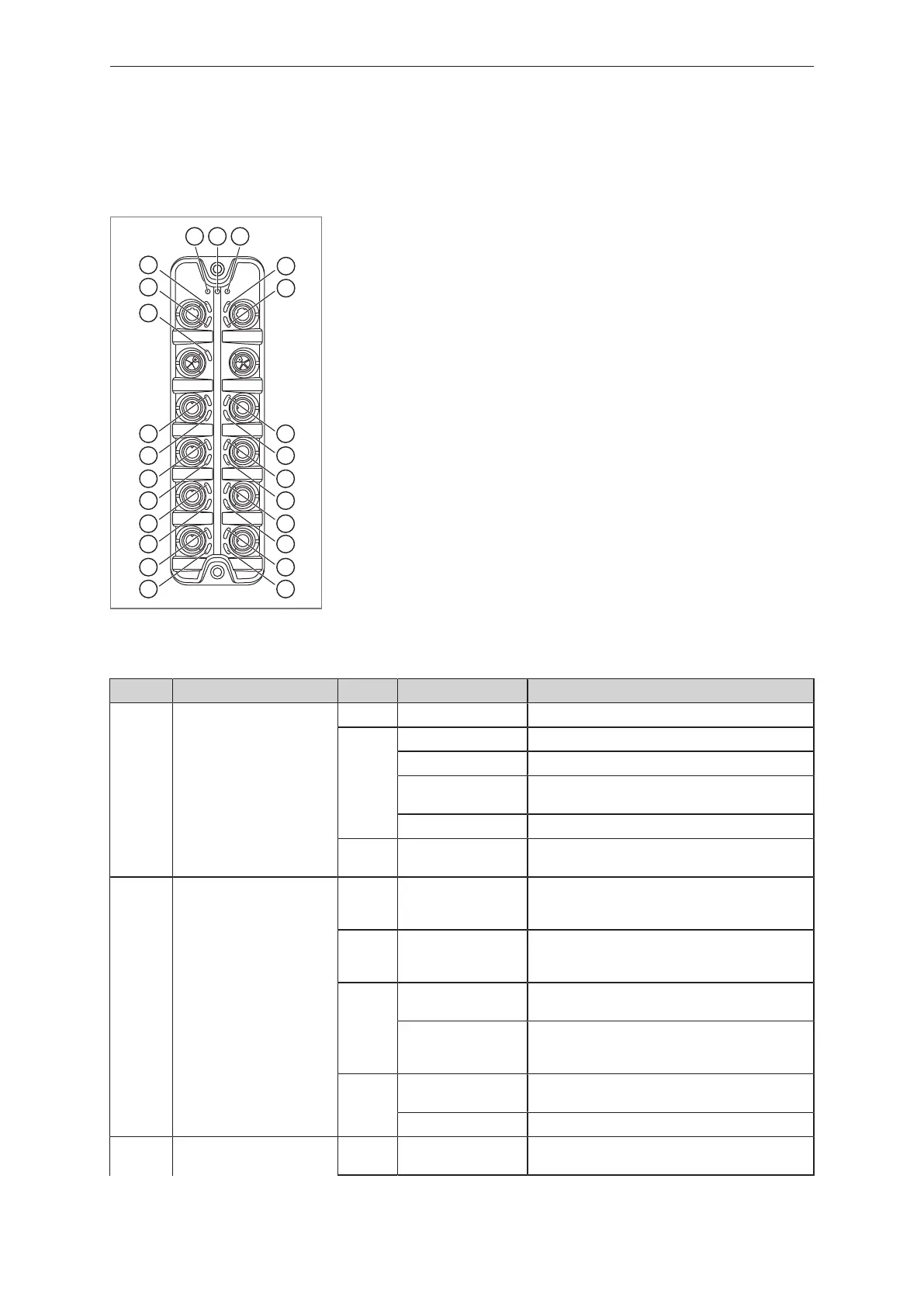

7 Operating and display elements
7.1 LEDs
2 3
4
5
10
1
4
5
6
6
8
88
8
6
6
7
7
9
99
9
7
7
1: Status: RDY
2: Status: NET
3: Status: MOD
4: EtherNet/IP: LNK
5: EtherNet/IP: ACT
6: Process connection: DO1
7: Process connection: DO2
8: Process connection: DI1
9: Process connection: DI2
10: Voltage supply: US
7.1.1 Status
LED Description Colour State Description
RDY Gateway status - Off Not active or reboots
Green Flashes 3s (1Hz) DCP signalling service initiated via fieldbus
Flashes (5Hz) Error
Flashes (200ms on,
800ms off)
Firmware update running
On OK
Red On Error during firmware update (e.g. firmware not
compatible)
NET Network status - Off Not powered, no IP address: device has no IP ad-
dress or no voltage applied or voltage applied is
too low
Green/
red/ yel-
low
Flashes
Self test: Unit in self-test after start (Ò MOD-LED)
Green Flashes (1Hz) No connection: no CIP connection established
and no exclusive owner connection timeout
On Connected: device has IP address and at least
one CIP connection established and no exclusive
owner connection timeout
Red Flashes (1Hz) Connection timeout: device has IP address and
exclusive owner connection timeout
On Duplicate IP: IP address used twice
MOD EtherNet/IP status -- Off No power: no voltage is applied or the applied
voltage is too low
