AL4302 Remote I/O module 8DO 8DI
22

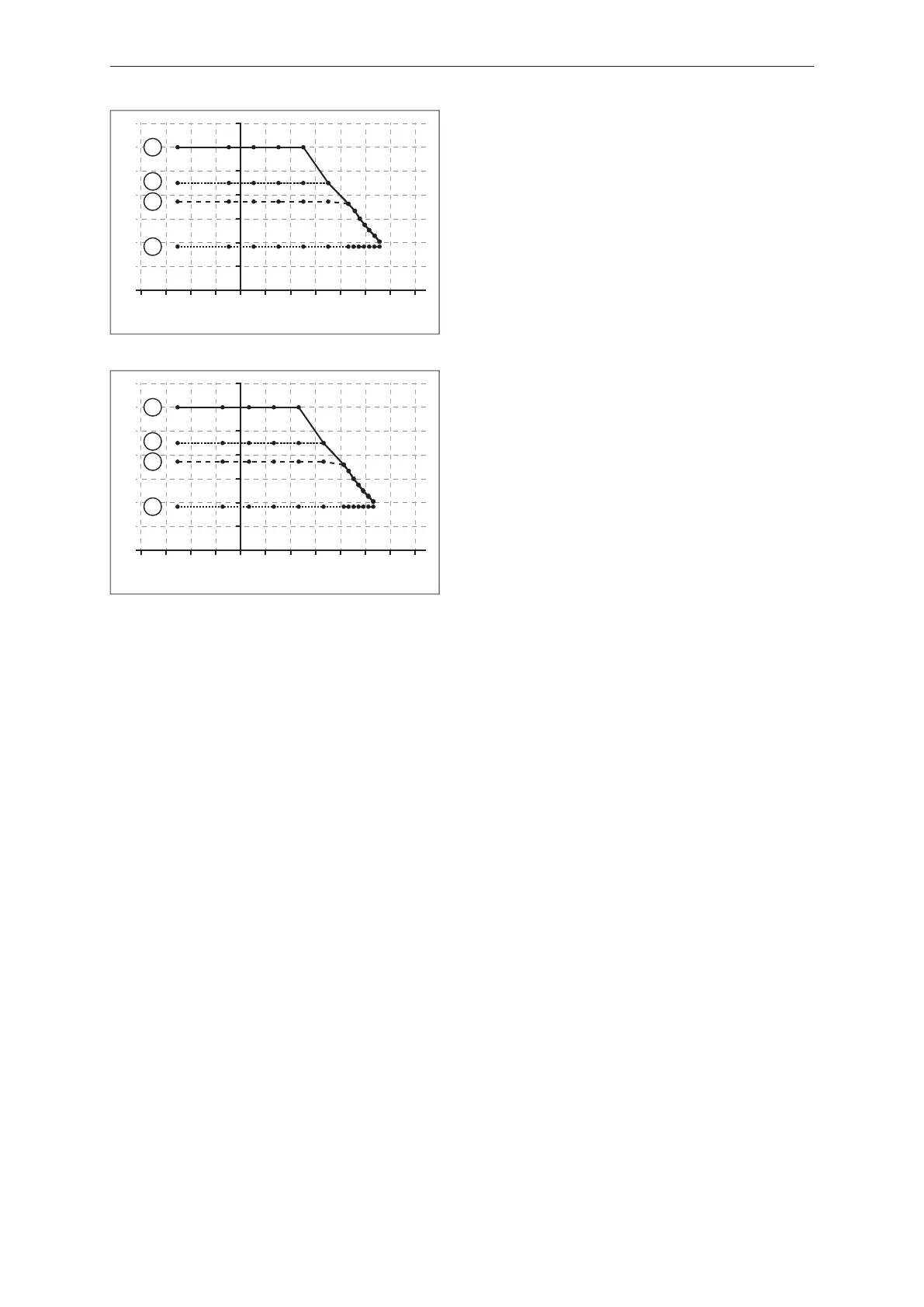

-40 -30 -20 -10 0 10 20 30 40 50 60 70
2
4
6
8
10
12
14
Temperatur [°C]
Stromstärke [A]Current [A]
Temperature [°C]
4
3
2
1
1: I
US-daisy-chain
at port XD2
2: I
UA-daisy-chain
at port XD2
3: I
UA
at port XD1
4: I
US
at port XD1
• Height: 4000m
-40 -30 -20 -10 0 10 20 30 40 50 60 70
2
4
6
8
10
12
14
Temperatur [°C]
Stromstärke [A]Current [A]
Temperature [°C]
4
3
2
1
1: I
US-daisy-chain
at port XD2
2: I
UA-daisy-chain
at port XD2
3: I
UA
at port XD1
4: I
US
at port XD1
6.7 Voltage output
An additional device can be supplied via the Power OUT port (daisy chain). The supply voltages US
and UA are looped through from port XD1 to port XD2.
Max. current intensity for US: 15.7 A
Max. current intensity for UA: 16A.
Wiring:
u Optional: Connect an additional device to port XD2.
u For connection, use an L-coded M12 connector (with at least protection rating: IP65 / IP66 / IP67).
u Tighten the cable plug using 1.3 ± 0.1Nm.
u Observe the derating behaviour of the device!
