Remote I/O module 8DO 8DI AL4222
15
0
1
0
1
SSC
Latch
Reset
Main
Batch
t

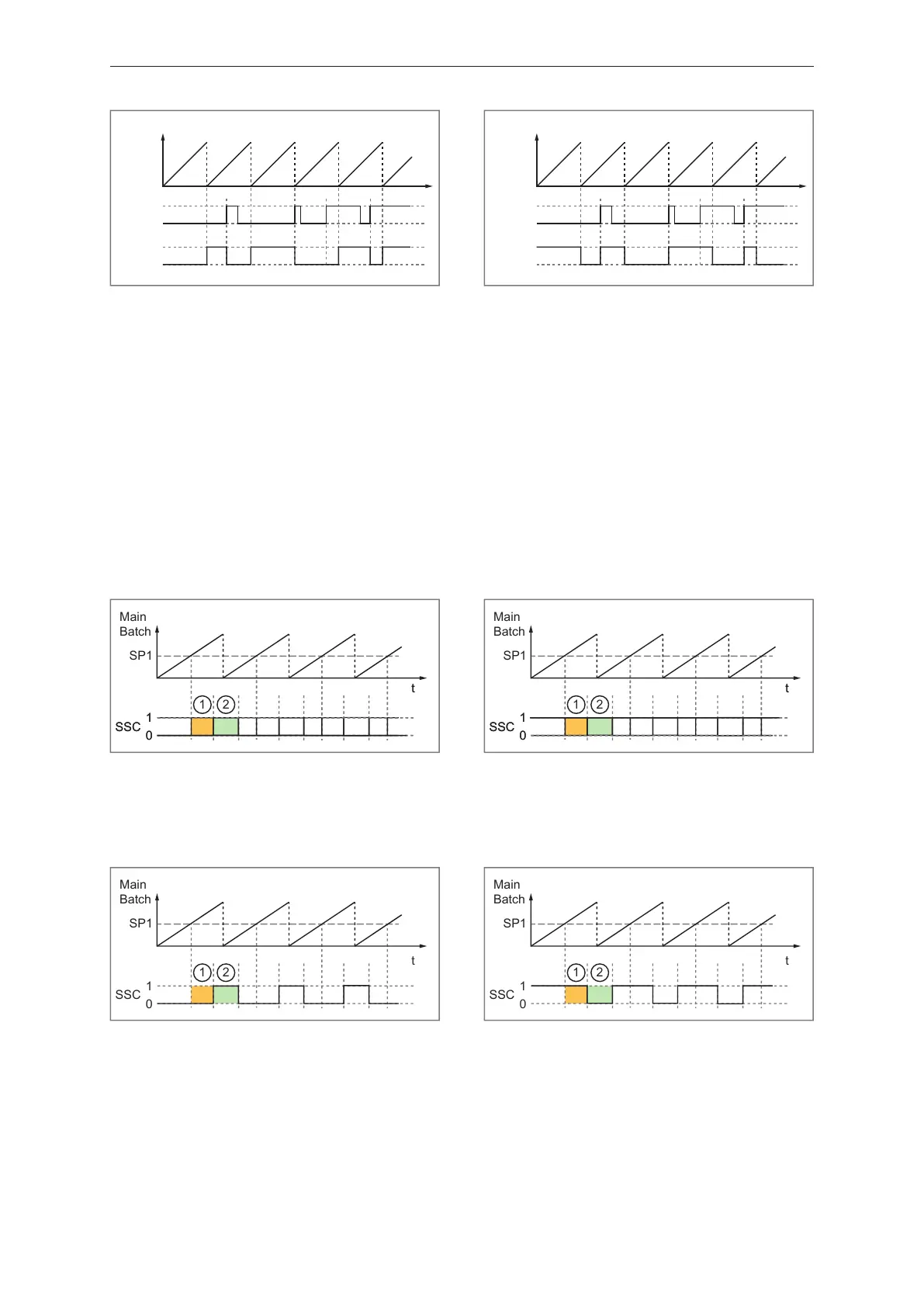

Fig.3: Latch mode (high-active)
0
1
0
1
SSC
Latch
Reset
Main
Batch
t
Fig.4: Latch mode (low-active)
Switch delay is not available.
Reset delay is not available.
The hysteresis function is not available.
4.7.3 Single point mode
Can be combined with counter modules: CTU, CTD, CTUD, CTDIR
In the Single Point Mode switch point mode, the user can define one switch point (SP1). In the basic
state, the switching signal is not set (INACTIVE). As soon as the counter value reaches SP1, the
switching signal is set (ACTIVE). Subsequently, the switching signal is reset (INACTIVE).
The user can define whether the switching signal channel should evaluate increasing or decreasing
counter values.
0
1
SSC
1
2
0
1
SSC
Main
Batch
t
SP1
t
Fig.5: Single point mode (high-active)
0
1
SSC
1
2
0
1
SSC
Main
Batch
t
SP1
t
Fig.6: Single point mode (low-active)
A switching delay can be used to delay the setting of the switching signal. For the switching signal to
be set, the counter value must be greater than SP1 for at least as long as the set switching delay.
A reset delay can be used to delay the reset of the switching signal.
0
1
SSC
1
2
Main
Batch
t
SP1
Fig.7: Single point mode (high-active) with switch delay (1)
and reset delay (2)
0
1
SSC
1
2
Main
Batch
t
SP1
Fig.8: Single point mode (low-active) with switch delay (1)
and reset delay (2)
The hysteresis function is not available.
4.7.4 Two point mode
Can be combined with counter modules: CTUD, CTDIR
