Remote I/O module 8DO 8DI AL4203
51
9.3 PROFINET
9.3.1 Install the GSD file
To map the device in a PROFINET projection software, ifm provides an GSD file. The device
description file contains identification information, supported parameters and process data. The user
can download the GSD file via documentation.ifm.com.
To add the device to the hardware catalogue of the PROFINET projection software:
u Download the GSD file of the device.
u Launch the PROFINET projection software.
u Install the GSD file.
w The device is added to the hardware catalogue of the PROFINET projection software.
w The PROFINET projection software can access the device functions and data.
9.3.2 Integrating the device into a project
Using the installed device description in the hardware catalogue, the device can be added to a
PROFINET project.
Requirements:
u Create a new project or open an existing one.
u Open the [Devices & networks] view.
u Add the necessary components to the network (e.g. PROFINET controller).
u Select the device in the hardware catalogue and add it to the network using drag & drop.
u Establish a logical PROFINET IO connection between the device and the PROFINET controller.
u Set the IP configuration of the device’s PROFINET interface.
w The device has been integrated into the project.
9.3.3 Configure the device
The device is configured via slot [0], subslot [X1].
The module [PN-IO] is permanently assigned to the slot. The assignment cannot be changed.
Requirements:
ü Device is integrated in PROFINET project.
u Open the [Device view].

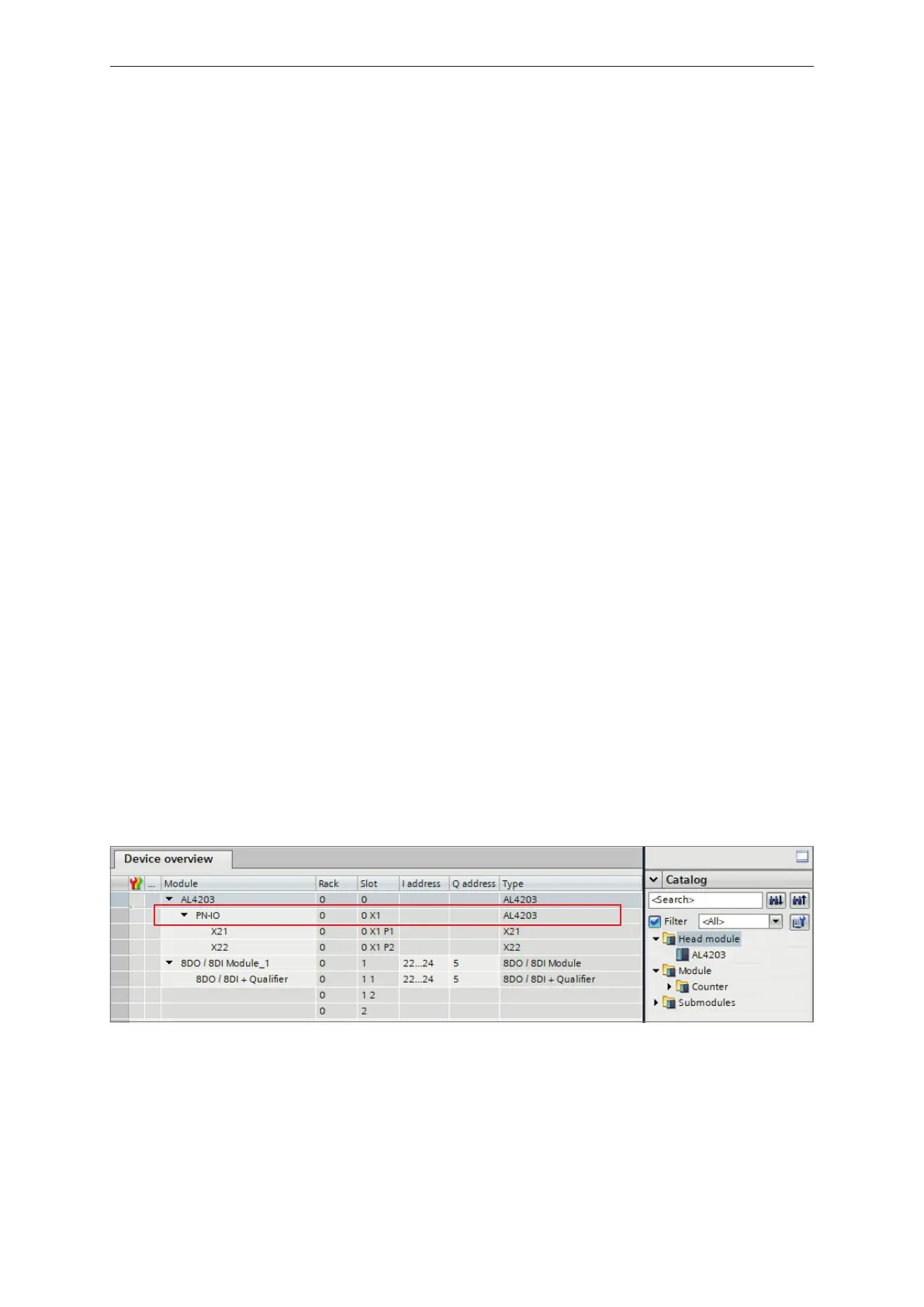

w The [Device overview] tab displays the device structure.
u Click on the module [PN_IO] in the slot [0X1].
w The [Properties] view appears.
w The [General] tab displays the available configuration options of the device.
