Remote I/O module 16 DI AL4143
21

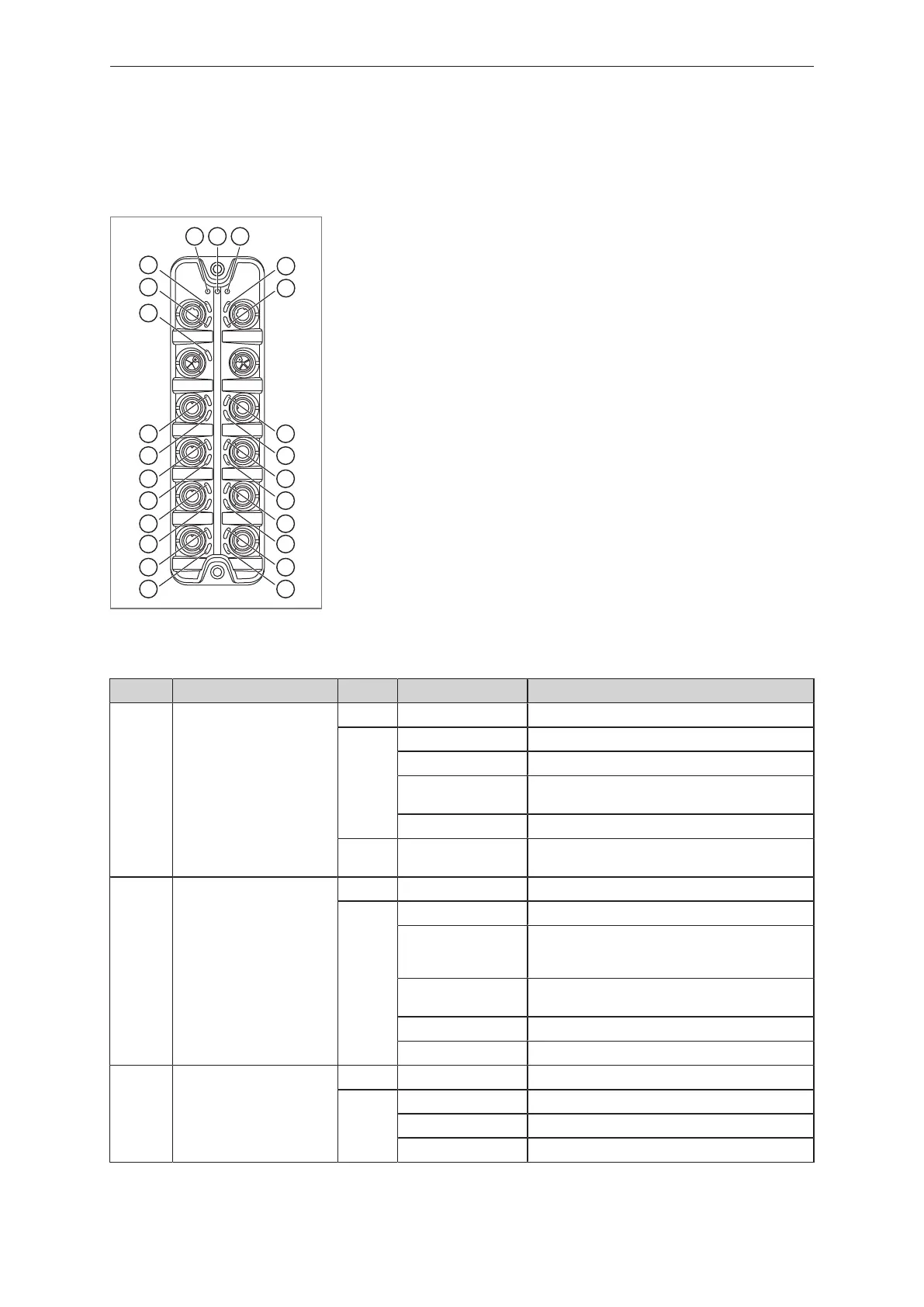

7 Operating and display elements
7.1 LEDs
2 3
4
5
8
1
4
5
6
6
6
66
6
6
6
7
7
7
77
7
7
7
1: Status: RDY
2: Status: ERR
3: Status: RUN
4: Modbus TCP: LNK
5: Modbus TCP: ACT
6: Process connection: DI1
7: Process connection: DI2
8: Power supply: US
7.1.1 Status
LED Description Colour State Description
RDY Gateway status - Off Not active or reboots
Green Flashes 3s (1Hz) DCP signalling service initiated via fieldbus
Flashes (5Hz) Error
Flashes (200ms on,
800ms off)
Firmware update running
On OK
Red On Error during firmware update (e.g. firmware not
compatible)
ERR Error indication - Off No error
Red Flashes (10Hz) Boot error
Flashes (200 ms on,
200 ms off, 200 ms
on, 1000 ms off)
Watchdog error (Modbus TCP or process data)
Flashes (200ms on,
1000ms off)
Local error
Flashes (2.5Hz) Invalid configuration
On Communication error
RUN Modbus TCP state (state
machine)
- Off Not ready
Green Flashes (1Hz) Ready, but not yet configured
Flashes (5Hz) Waiting for connection
On Connecting
