Remote I/O module 16 DI AL4043
37
Requirements:
ü IoT Core Visualizer has been started.

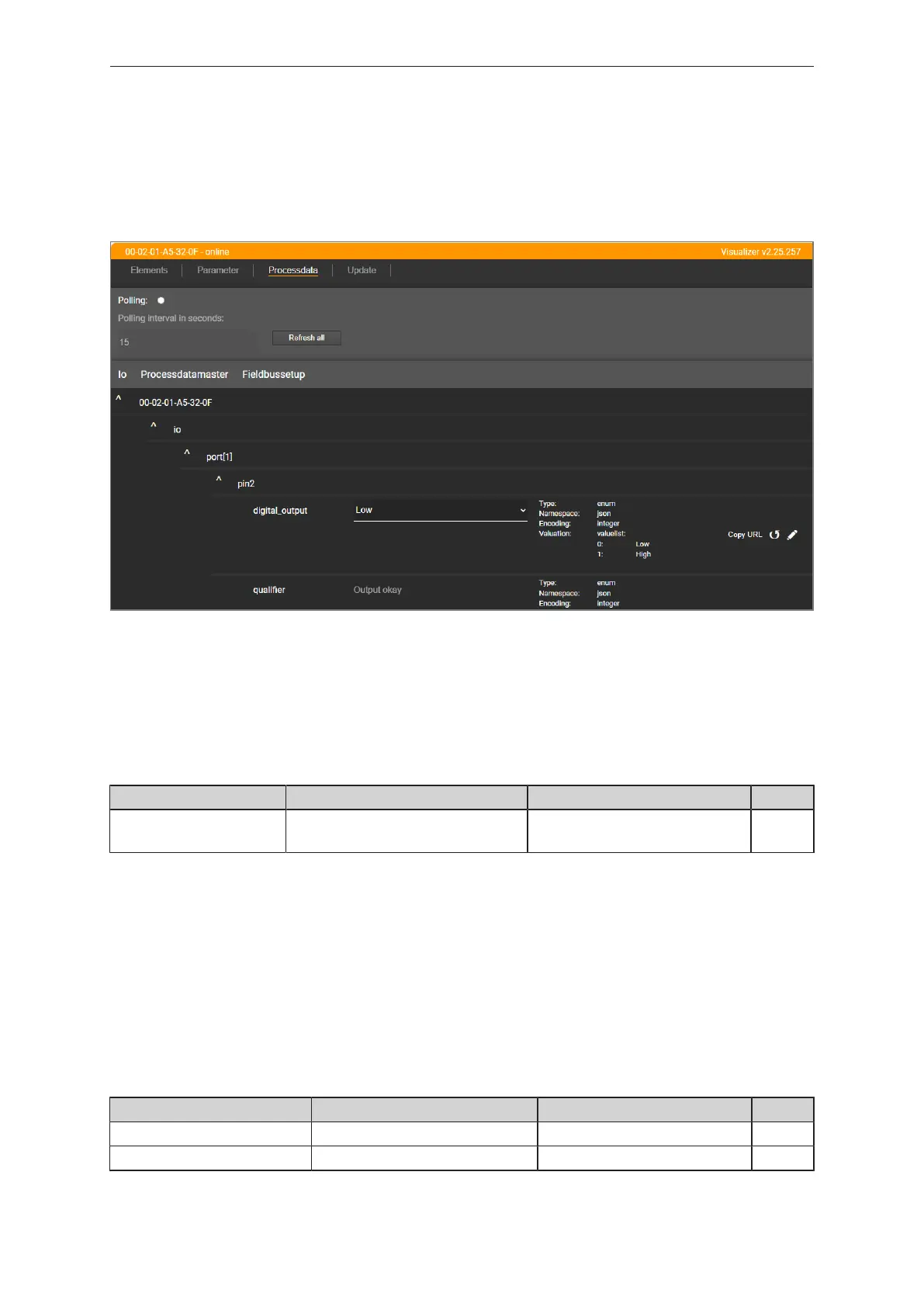

u Select the [Processdata] menu.
w The menu page shows the substructures of the device description that contains the process data.
w The current process values are displayed.
u Optional: In the header, activate the [Polling] option and set the polling interval.
w The process values will be refreshed with the set interval.
u Optional: Click on next to an element to manually refresh the process value.
9.2.4.1 Reading digital input data
Available information:
Name Description Value range Access
[digital_input] Process value digital input (after filtering) • Low: LOW
• High: HIGH
ro
1
1
Read only
Requirements:
ü IoT Core Visualizer has been started.
ü The [Processdata] menu is active.
u Select submenu [io] > [port[n]] (n: 1...8).
w The menu page shows the digital input data on pin 2 and pin 4 of the port.
9.2.4.2 Reading counter values
Available information:
Name Description Value range Access
[maincounter_value] Current main counter value 0…4294967295 ro
1
[batchcounter_value] Current batch counter value 0…65535 ro
1
1
Read only
Requirements:
