AL2607 IO-Link input/output module
20

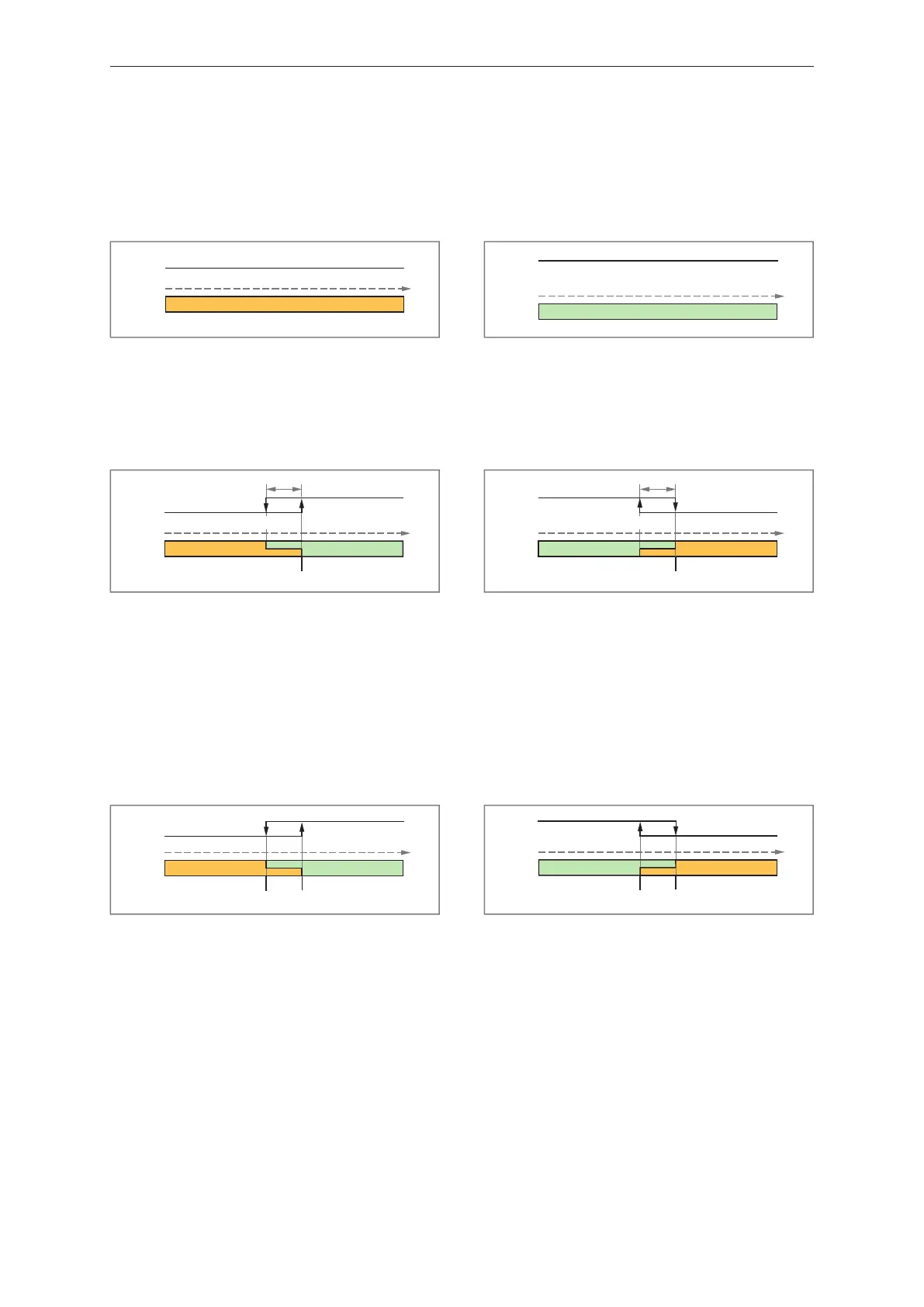

Deactivated
If the [Deactivated] switch point mode is set for a switching signal channel, then the switching signal
channel will permanently have the following value regardless of the process value:
• For switch point logic [High active]: permanently “low”.
• For switch point logic [Low active]: permanently “high”.
low
PDV
0
Fig.4: [Deactivated] / [High active]
high
PDV
1
Fig.5: [Deactivated] / [Low active]
Single Point Mode
Only one switch point (SP1) is manually set.
The reset point (SP1-H) results from the switch point and the set hysteresis.
SP1
low
high
PDV
0
1
H
SP1
-
H
Fig.6: [Single Point Mode] / [High active]
H: Hysteresis
SP1: Setpoint
SP1-H Reset point
SP1
low
high
PDV
1
0
H
SP1
-
H
Fig.7: [Single Point Mode] / [Low active]
H: Hysteresis
SP1: Setpoint
SP1-H Reset point
Two point mode
A switch point SP1 and a switch point SP2 are set manually.
SP1 must be greater than SP2. Thus, switch point 2 is always the reset point.
The hysteresis will be ignored in Two Point Mode.
SP1
low
high
SP2
PDV
0
1
Fig.8: [Two Point Mode] / [High active]
SP1: Switch point 1
SP2: Switch point 2
SP1
high
low
SP2
PDV
1
0
Fig.9: [Two Point Mode] / [Low active]
SP1: Switch point 1
SP2: Switch point 2
Window mode
Two switch points (SP1) and (SP2) are set manually.
The two switch points define a window area.
SP1 must be greater than SP2. Thus, switch point 2 is always the reset point.
When the process data value enters the window area, the status of the switching signal channel
changes immediately when the switch points are exceeded/not reached.
If the process data value leaves the window area, the status of the switching signal channel changes
when the switch point plus hysteresis (SP1+H or SP2-H) is exceeded/not reached.
